SP CPU module

Table 4 shows the part number label location, part number, description, and whether it is
a FRU or CRU.
Table 4 Power supply module/cooling fan part number
Part number label
location (Figure 8
on page 12) Part number
071-000-543
To access the SP CPU, you must first remove the power supply/cooling fan modules, as
shown in Figure 9.
1

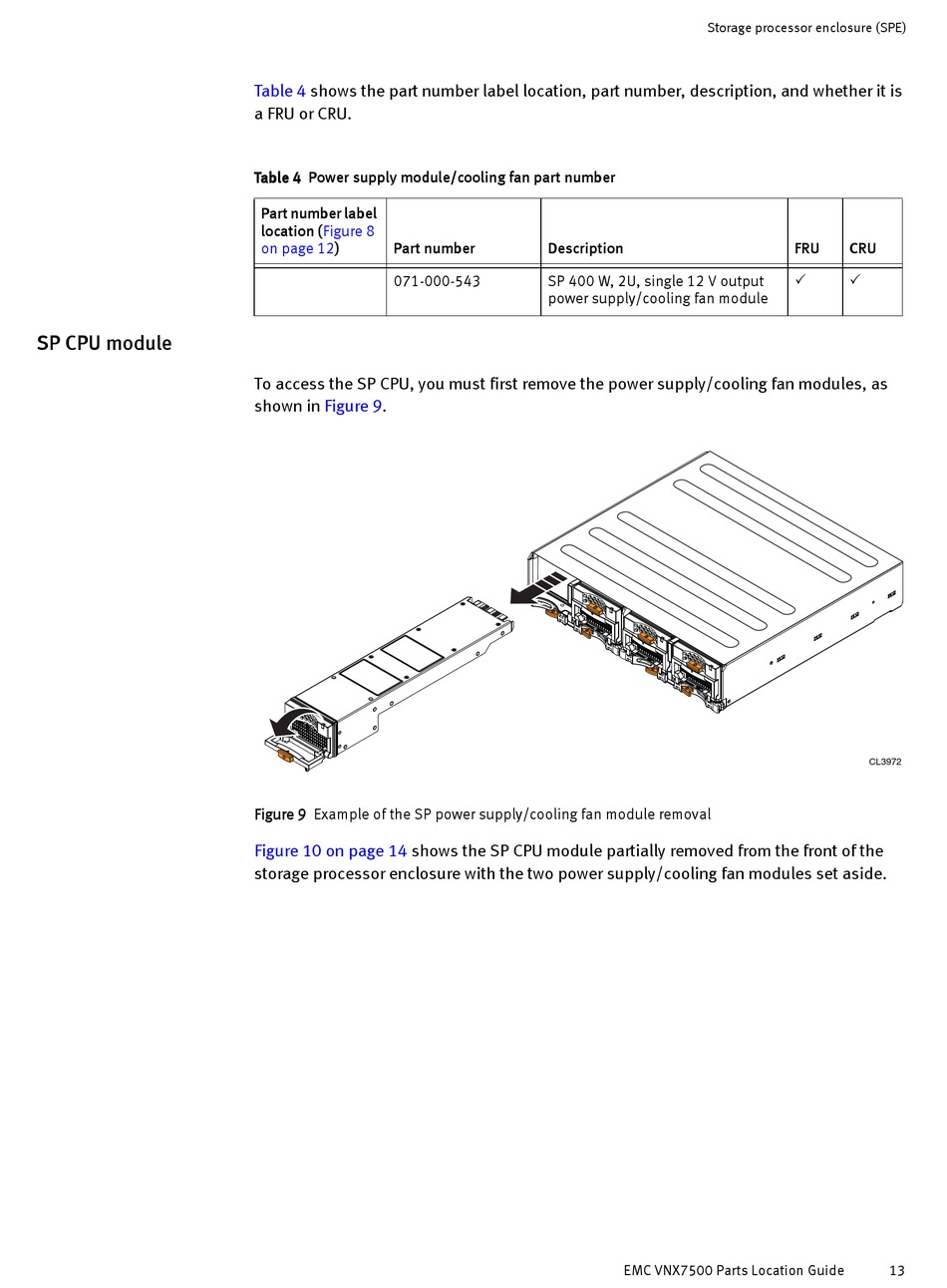

Figure 9 Example of the SP power supply/cooling fan module removal
Figure 10 on page 14 shows the SP CPU module partially removed from the front of the
storage processor enclosure with the two power supply/cooling fan modules set aside.
Storage processor enclosure (SPE)
Description
SP 400 W, 2U, single 12 V output
power supply/cooling fan module
