2.7 Incoming Indicator IB-372 (option)
Three IB-372 units can be mounted. For connections on the terminal board, see the
interconnection diagram at the back of this manual.
1. Unfasten four screws to remove the cover.
2. Pass the cable (CO-SPEVV-SB-C 0.2x5P, option) trough the cable entry at the bottom or
back of the indicator.
3. Attach crimp-on lugs (FV1.25-3 red x5, FV2-3 x1) to cable cores. Crimp-on lug FV2-3 is
for ground (#6 on the terminal board).
Modular jack box
MJ-2S
FAX
PFX-50
Cable with
modular plug
(CO-SPEVV-SB-C 0.2X1P
or TTYCYS-1)

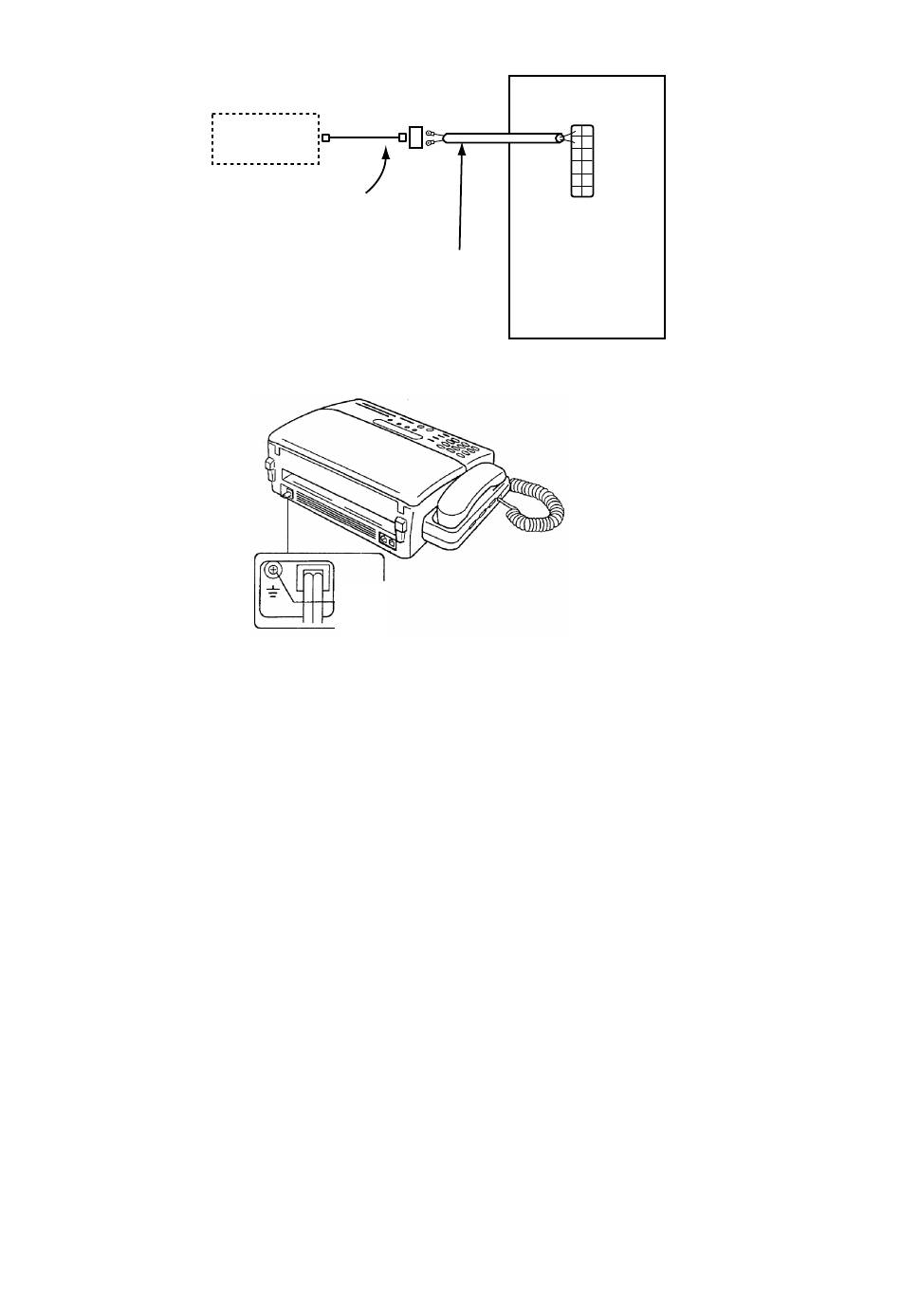

Wiring of facsimile
Earth
terminal
Facsimile PFX-50, rear view
Junction box
IB-313
A facsimile can
be connected to
each terminal.
Cable
Use earth wire(08S0087).
28
TEL1
TEL2
TEL3
