N-P-12DSFA connector
Note: The length of the antenna cable 12D-5FA-CV must not be less than 40 m.
Outer Sheath
Armor
Clamp Nut
Solder through the hole.

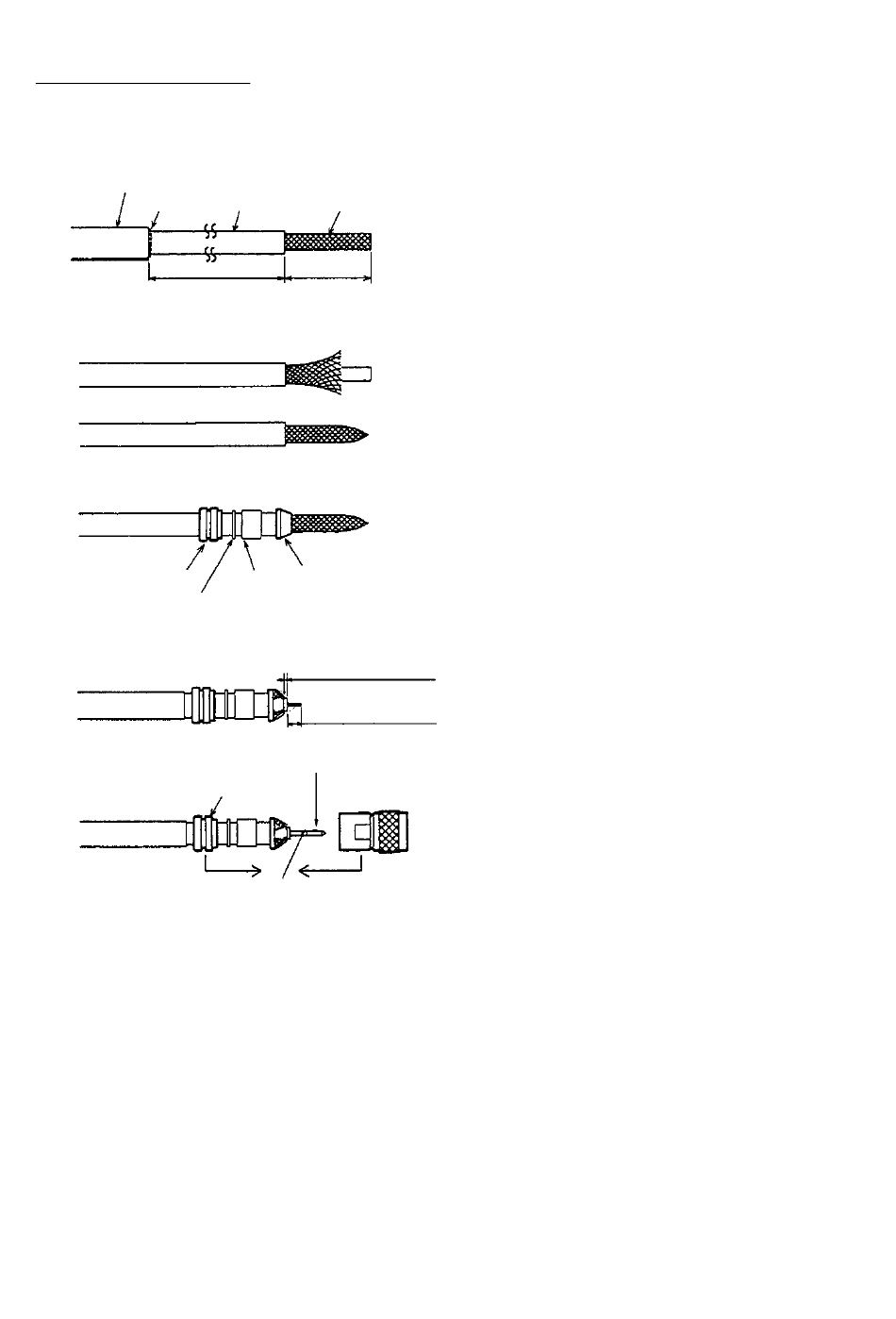

How to attach the antenna cable connector N-P-12DSF
(Dimensions in millimeters.)
Inner Sheath Shield
12
80
1.8
4.5
Pin
Shell
Remove outer sheath and armor by the
dimensions shown left.
Expose inner sheath and shield by the
dimensions shown left.
Twist shield end.
Slip on clamp nut, gasket and clamp
as shown left.
Expose the insulator by 1.8 mm.
Expose the core by 4.5 mm.
Slip the pin onto the conductor.
Solder them together through the hole
on the pin.
Insert the pin into the shell.
Screw the clamp nut into the shell.
(Tighten by turning the clamp nut.
Do not tighten by turning the shell.)
