(CO-SPEVV-SB-C 0.2X1P or TTYCS-1)

2.6 Facsimile PFX-50 (option)

Connect the cable from the facsimile to TEL1, 2, or 3 in the junction box. Use the modular
jack box (supplied as installation material). Connect the CO-SPEVV-SB-C 0.2x1P cable
(option, 1-pair cable, 10/20/30/40/50m) or TTYCS-1 (Japan Industrial Standard (JIS) cable,
or equivalent, local supply) between the modular jack box and junction box. Attach two
crimp-on lugs (FV1.25-3 red, supplied with modular jack box) to the modular jack box side of
the above cable.

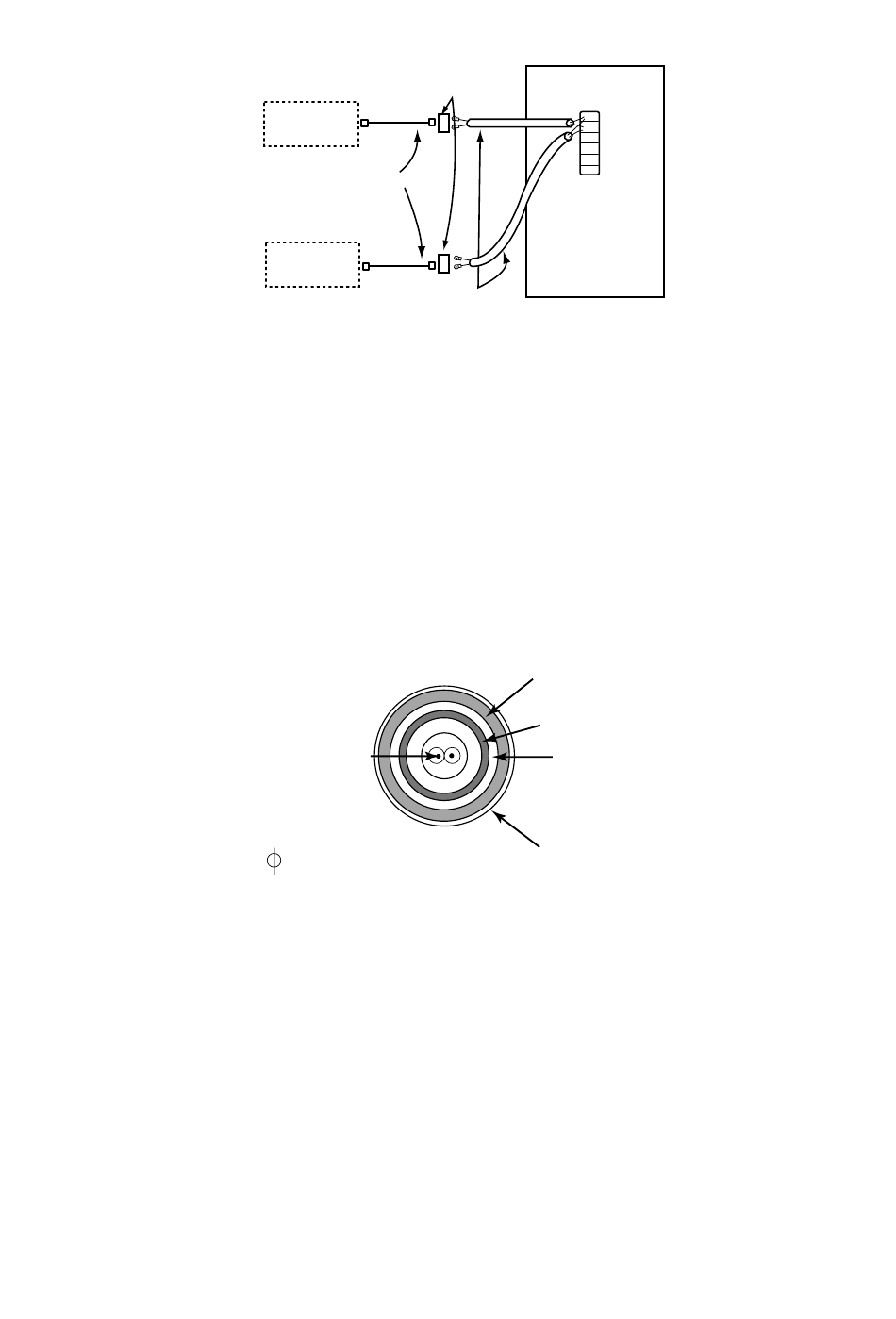

Modular jack box
MJ-2S
Telephone
FC755D1
Cable with
modular plug
Telephone
FC755D1
Connecting telephone to junction box
Conductor
2
S =1.25 mm
=1.35 mm
(Sectional view)
TTYCS-1 cable (Twisted pair)
JUNCTION BOX IB-313
TEL1
TEL2
TEL3
Two telephones
can be connected
to each terminal.
Cable
Armor
Shield
Vinyl sheath
Painting
27
