1.9.3 Telephone
General
The telephone can be installed on a tabletop or a bulkhead. Select a location where the unit
can easily be operated.
• For installation on a wooden table, use the mounting base and tapping screws (supplied).
• For installation on a steel table, fix the telephone with nuts and bolts.
• For bulkhead mounting, use the bulkhead mounting base (supplied with telephone accessories).
Mounting location
Select a location where temperature and humidity are moderate and stable. Secure sufficient
space around the unit for ease of operation and maintenance.

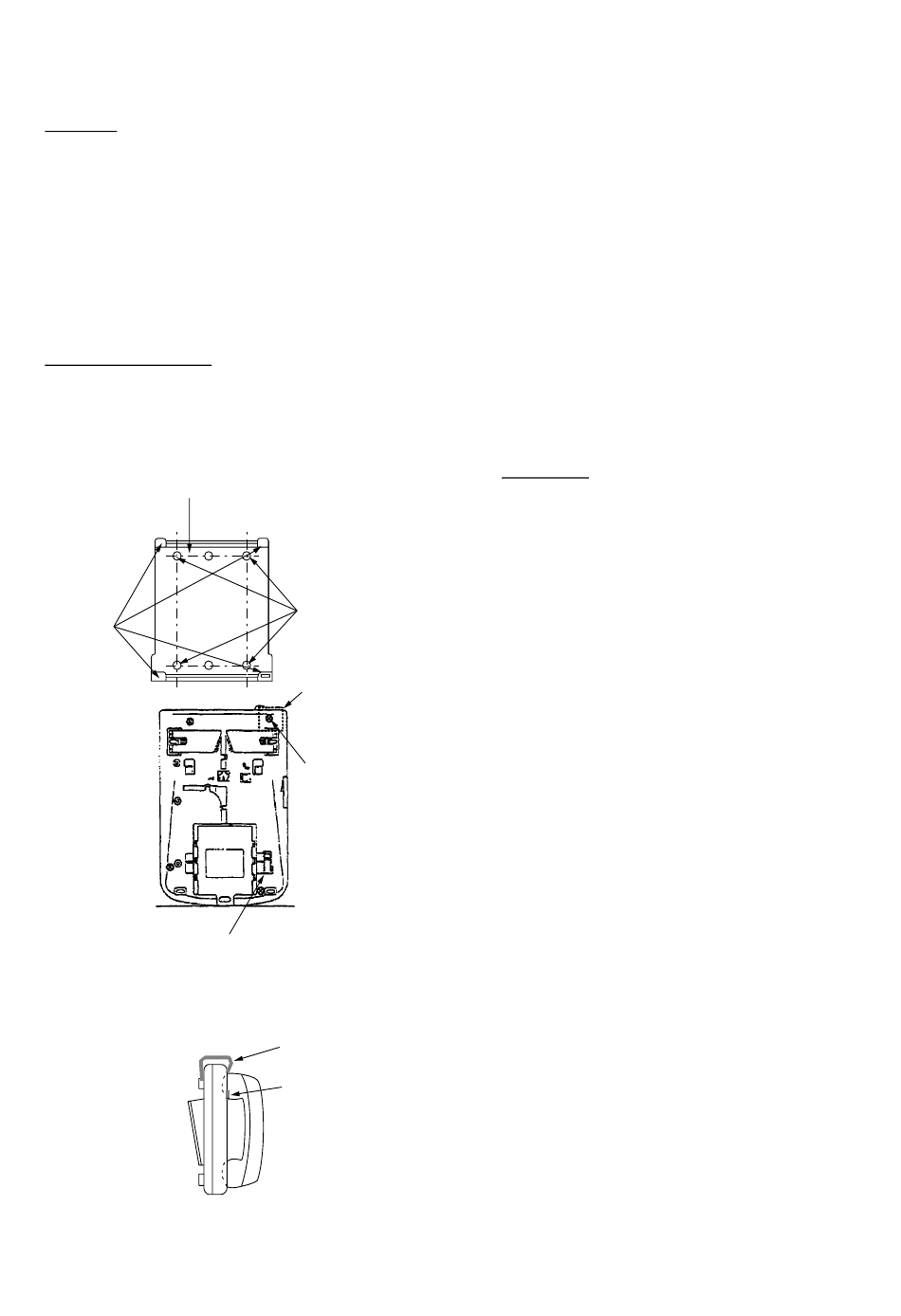

Mounting base
(Table top: Use installation materials,
Bulkhead: Use telephone accessories.)
Catches
Mounting base stopper
4. Set the telephone to the four catches in the mounting base and then slide it toward you
until you hear a click.
Secure mounting
base with tapping
screws.
Attach handset
fixture here.
Unfasten this screw.
Bottom view
Handset fixture
Catch
18
Mounting
The mounting dimensions are given in
the outline drawing at the back of this
manual. Determine the mounting
location, leaving sufficient space
around the unit, and then fix the
mounting base to the mounting
location. The mounting base is
different for bulkhead and tabletop
mounting, however the mounting
procedure is the same for all.
1. Fix the mounting base to the
mounting location with four tapping
screws (4x16).
2. On the underside of the telephone,
unfasten the screw shown in the
figure. (The screw may be
discarded.) Attach vulcanizing tape
(supplied) to the handset fixture.
Fasten the handset fixture to the
underside of the telephone with a
screw (3x14, supplied).
3. The catch in the receiver cradle
functions to hang up the handset
completely. Set the catch in the
upward position as shown in left.
(To detach the handset from the
hanger, slide the handset upward.)
