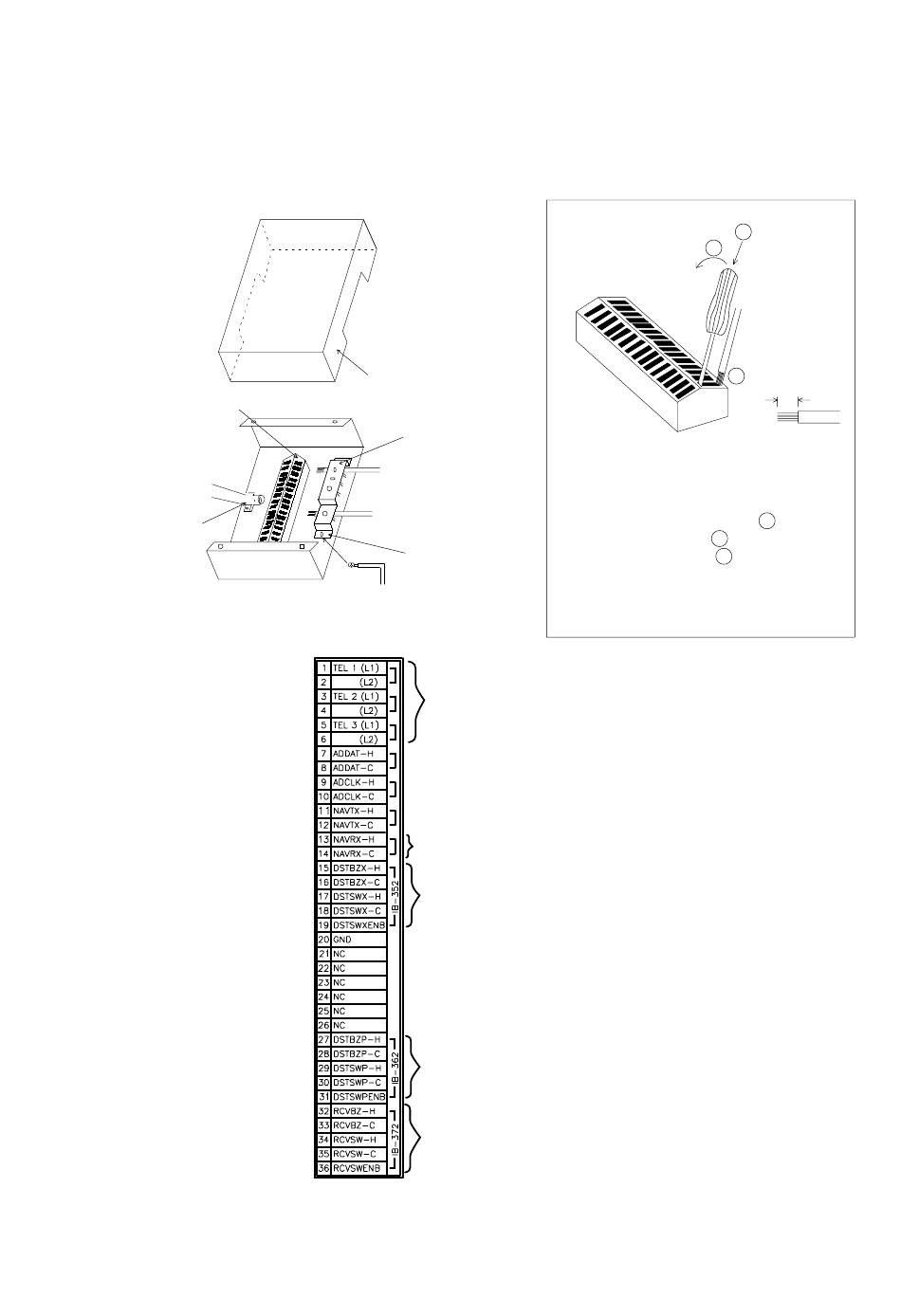

2.3 Junction Box IB-313
You will need a small slotted-head screwdriver to open terminals. Insert the screwdriver in
terminal to open it. Then insert wire core. For cables with shields be sure the shields are well
grounded in the cable clamps.
Terminal
Board
To Communication Unit
Nylon clamp for
fixing cable
Cover
Cable clamp for
grounding cable shield
Use this screw for
grounding.
Earth wire
Telephone/Facsimile
Navigator
Telex Distress
Alert Button
Telephone Distress Button
Incoming Indicator
Junction box terminal
25
1
2
3
Procedure
1. Insert driver from direction 1 .
2. Tilt slightly toward 2 .
3. Insert cable core to 3 .
Core 7 mm
