5. Attach the "SLIDE" label (supplied) to the handset.
6. Attach English language label (supplied) to the telephone.

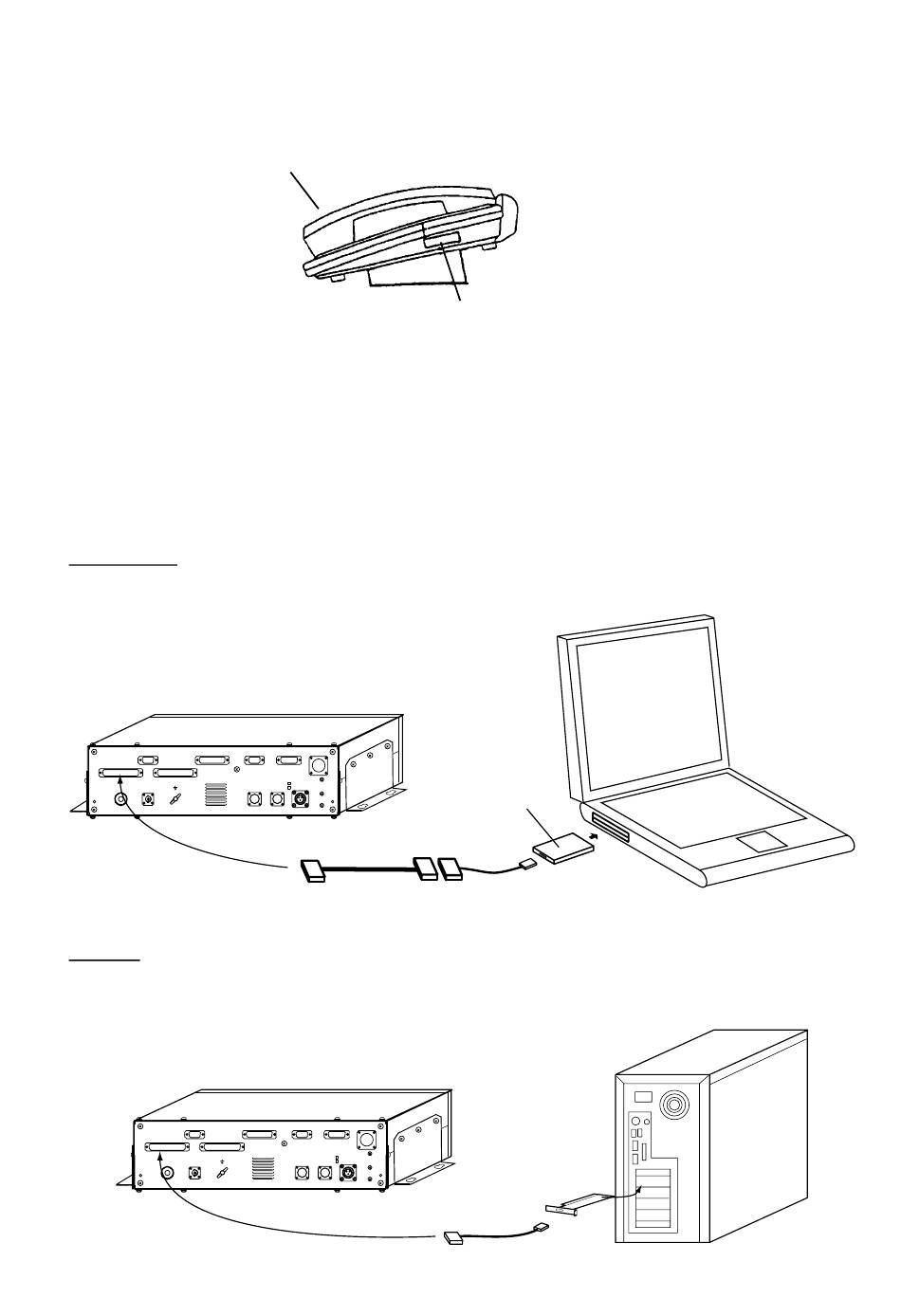

7. Attach the label for compass safe distance (16-007-6927-0) and INMAR "B" as shown
below.
1.9.4 HSD I/F (KLAS bland)
The optional KLASHOPPER HSD I/F, which is connected to PC, provides communication
between FELCOM 82 and a terrestrial ISDN line, at the speed of 56/64 Kbps. There are two
types of HSD I/F, PCMCIA400 (for laptop computer) and PCI-400 (for desktop computer).
For details, see the operator's manual for KLASHOPPER.
PCMCIA400
Insert the PCMCIA Type II card to the slot of the laptop type personal computer.
Connect to the HSD(56k/64k)
port on communication unit.
MSD(9.6k) PRINTER
HSD(56k/64k)
JUNCTION BOX
ANT DGPS
PCI-400
Remove the desktop personal computer cover, and then attach the PCI extension card to the
unused port.
Connect to the HSD(56k/64k)
port on communication unit.
MSD(9.6k)
HSD(56k/64k)
JUNCTION BOX
ANT DGPS
Attach label for INMAR "B".
Telephone, attaching the label
HANDSET GYRO
VDU
50/60 Hz
100-115 VAC
VDU
PRINTER
220-230 VAC
24 VDC BREAKER
24 VDC
2 m
(Attached)
D-sub 25P
D-sub 37P
(female)
(male)
HANDSET GYRO
PRINTER VDU
50/60 Hz
100-115 VAC
PRINTER VDU
220-230 VAC BREAKER
24 VDC 24 VDC
D-sub 37P(male)
Label (16-007-6927-0)
KLASHOPPER
PCMCIA400
D-sub 25P
(male)
Card
connector
0.9 m
(Attached)
KLASHOPPER
PCI-400
2 m
(Attached)
Attach the PCI extension card.
19
Laptop
personal
compter
Insert the PCMCIA
card to the slot.
