1.3 Terminal Unit (for class 1 only)

1.3.1 Mounting location
• Leave sufficient space around the unit to permit checking and maintenance.
• Locate the unit where temperature and humidity are stable and moderate.
• Locate the unit at least 5 meters from high power communications equipment and its feeder and
antenna to prevent mutual interference.
Mounting main unit
1. Fix the hanger to the table with five tapping screws.
2. Attach connectors to bottom panel.
3. Fix the unit to the hanger by two knobs.
Mounting keyboard
To permanently fix the keyboard, do the following:
1. Attach the four "hook loop fastener 3" (small ones) to the bottom of the keyboard.
2. Attach the four "hook loop fastener 4" (large ones) to the "hook loop fastener 3" attached
to the keyboard bottom.
3. Remove seals from the hook loop fastener 4.
4. Set the keyboard on the mounting location and press down firmly.
5. Attach labels as shown on the next page.
#80
ON ON
125±0.5 125±0.5
POWER POWER BRILL BRILL
B
OFF OFF
Label for INMAR "B"

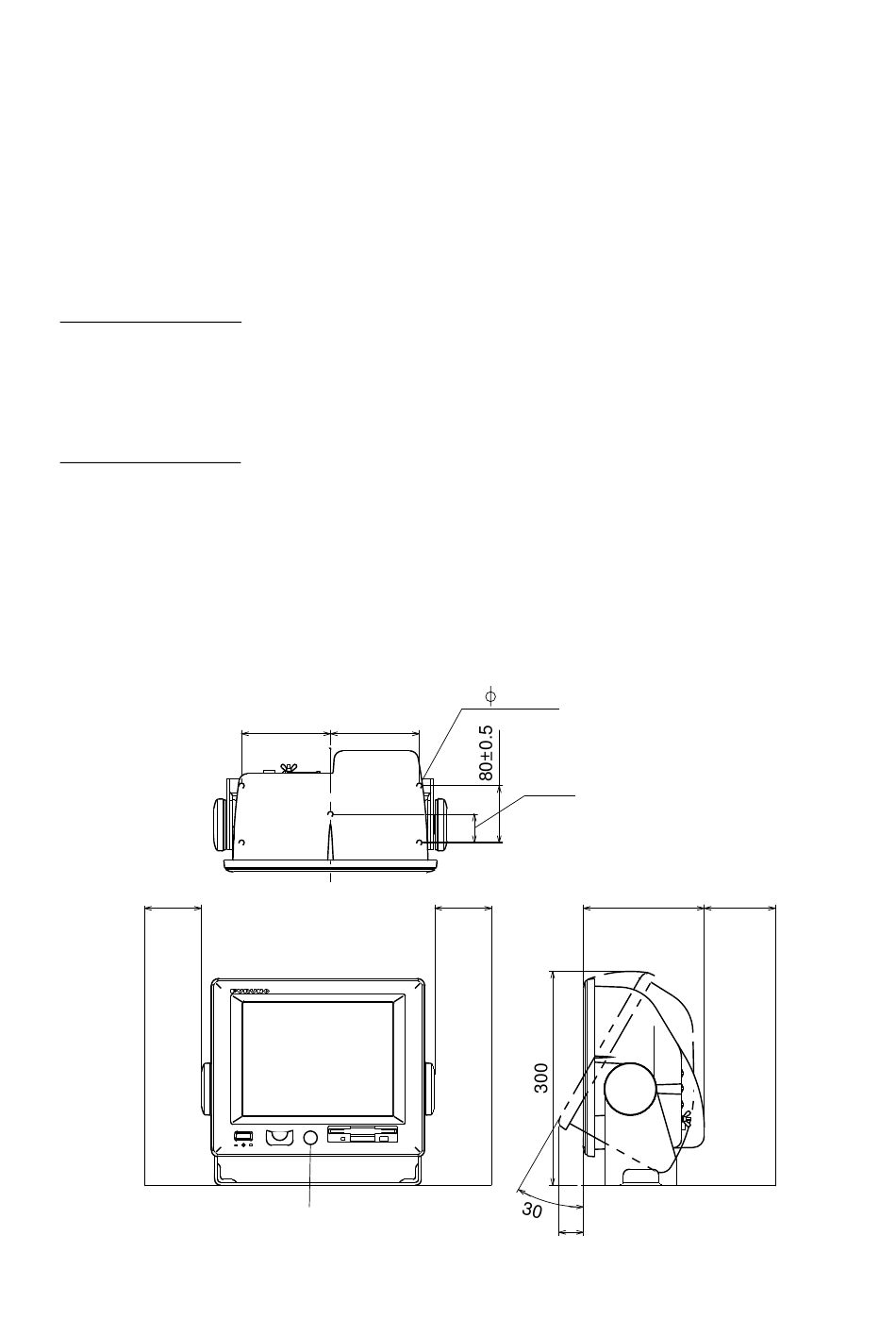

Mounting dimensions for the terminal unit
5- 7.5 Fixing hole
40±0.5
#80
35
11
#: Service space
170 #100
