2.2 Handset IB-882/IB-882-362

Take appropriate measures to ensure water does not penetrate through hole in bulkhead
made for the handset cable.
2.2.1 8-pair cable between the hanger and communication unit
8-pair cable (supplied, 5 m/10 m/20 m) should be fabricated as below.
Unused cables should be cut.
6
80
Connect to the appropriate
Anticorrosive
terminal block in the hanger.
Sheath
Connect to the terminal block #16
in the hanger.
Drain wire

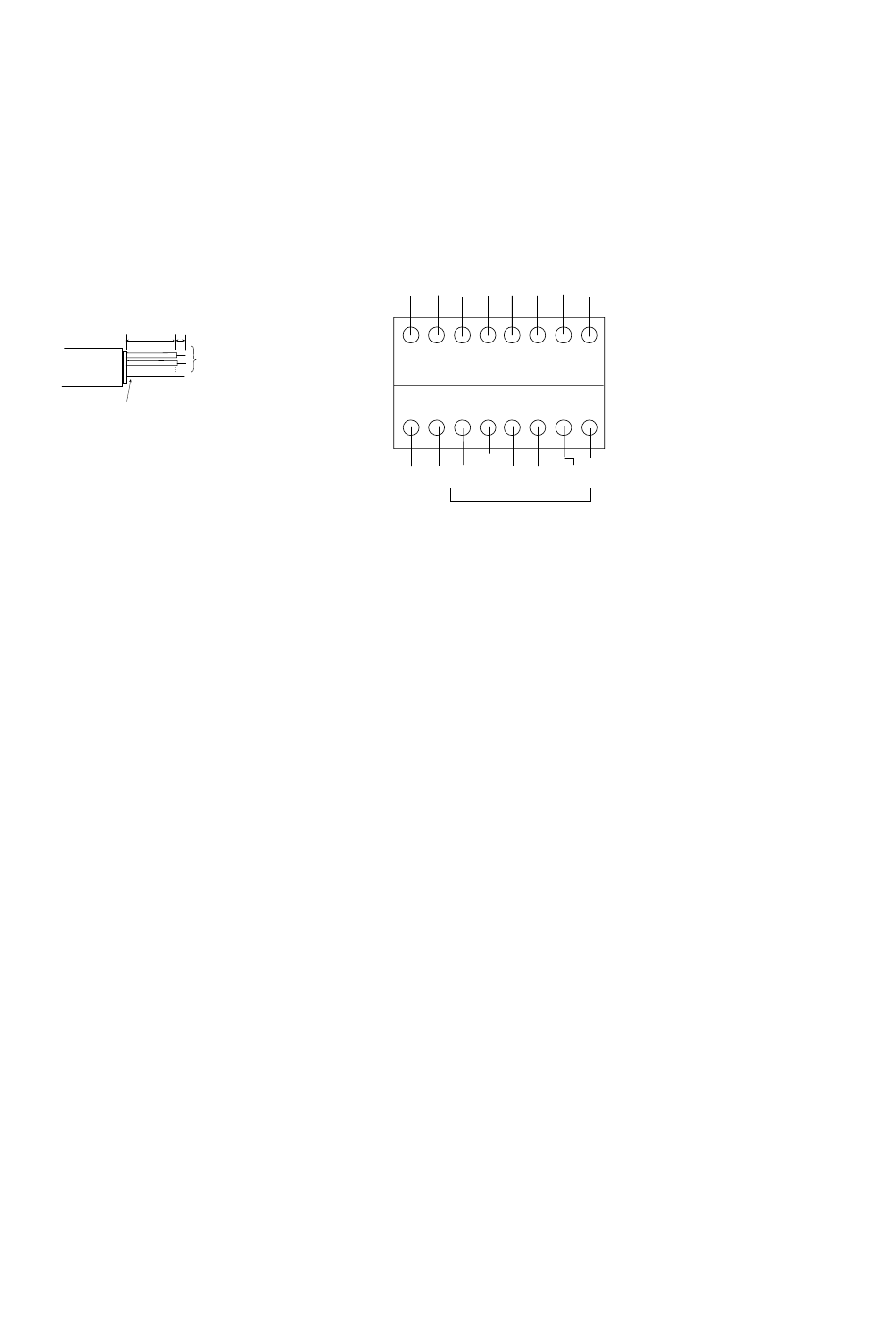

Cable Fabrication
Cable arrangement and terminal block arrangement on handset
Pass the above cable through the entrance hole at the back of the hanger, and attach to the
appropriate block. Cover the hole with soft putty, from the inside of the hanger.
2.2.2 Handset cable
Connect the handset cable to the connector at the bottom of the hanger.
BRN GRN RED GRY ORG BLU YEL BLK
1 2 3 4 5 6
9 10 11 12 13 14 15
WHT
ORG, GRN,
PPL PNK BLU,
WHT WHT
RED
RB-2721B/362 only
Terminal Block Arrangement
24
Push the appropriate switch down
to insert/pull out the cable.
7 8
Drain wire should be covered by
vinyl sheath, or soldered to the
16
shield in the cable to be grounded.
Drain
BRN,
WHT
