1.5 Junction Box IB-313
The usual mounting location is behind the communication unit on the bulkhead. The junction
box connects to the communication unit with a 2 meter cable, which is attached to the IB-313
at the factory. Keep this length in mind when selection a mounting location.
Be sure to leave sufficient space around the unit as shown below.
To fix the unit, open the cover and fix the unit to the mounting location with four tapping
screws.
260
210±0.5
Fixing hole
#10

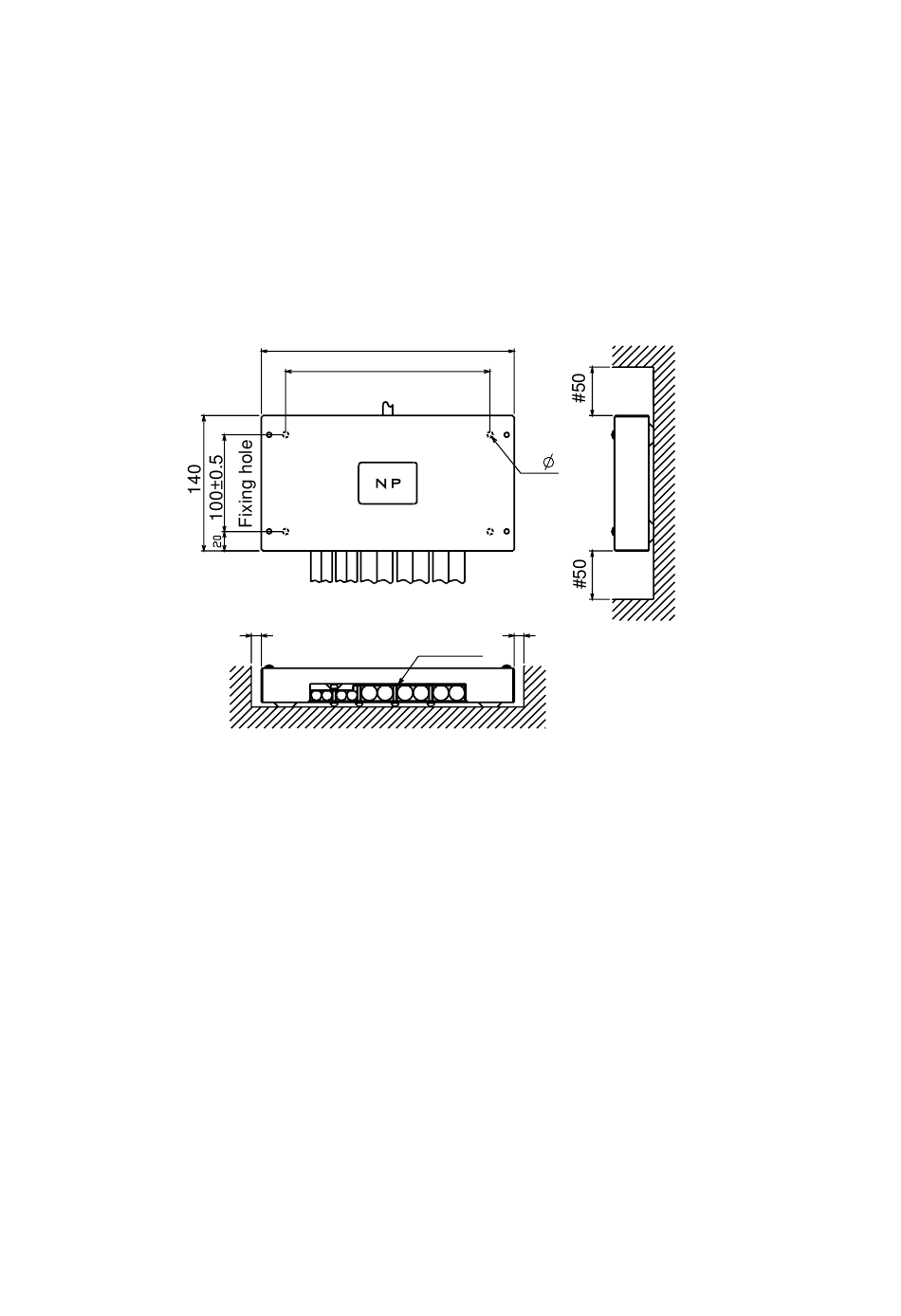

Mounting dimensions for the junction box
4- 6
Fixing hole
#10
Cable
entrance
13
#: Service space
