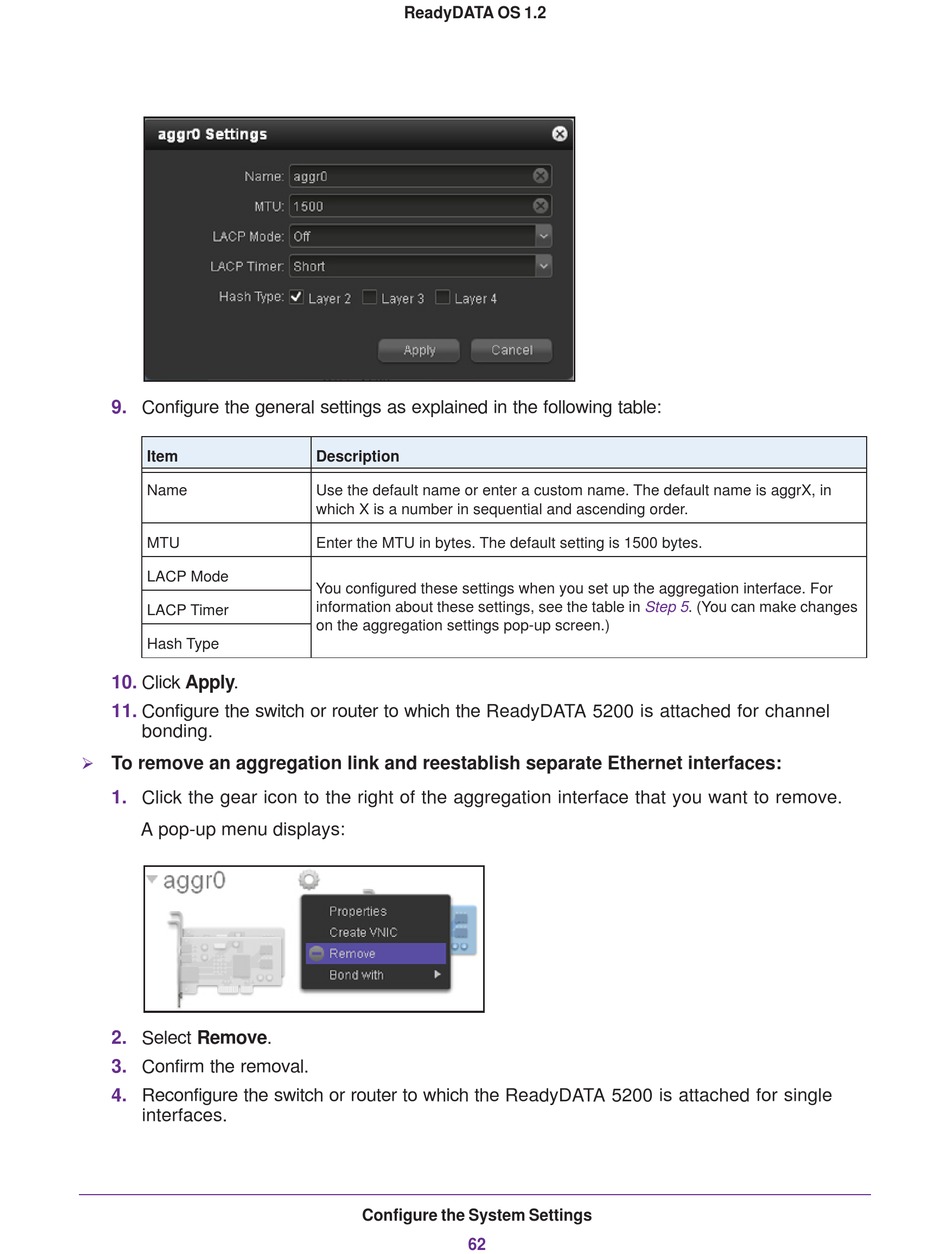

NETGEAR ReadyDATA 5200 Software Manual page 62

9. Configure the general settings as explained in the following table:
Item
Name
MTU
LACP Mode
LACP Timer
Hash Type
10. Click Apply.
11. Configure the switch or router to which the ReadyDATA 5200 is attached for channel
bonding.

To remove an aggregation link and reestablish separate Ethernet interfaces:
1. Click the gear icon to the right of the aggregation interface that you want to remove.
A pop-up menu displays:
2. Select Remove.
3. Confirm the removal.
4. Reconfigure the switch or router to which the ReadyDATA 5200 is attached for single
interfaces.
ReadyDATA OS 1.2
Description
Use the default name or enter a custom name. The default name is aggrX, in
which X is a number in sequential and ascending order.
Enter the MTU in bytes. The default setting is 1500 bytes.
You configured these settings when you set up the aggregation interface. For
information about these settings, see the table in
on the aggregation settings pop-up screen.)
Configure the System Settings
62
Step 5. (You can make changes
