low, the expansion disk array shuts down ungracefully, but data has already been saved and
is therefore safe.
Both the ReadyDATA 5200 and expansion disk arrays have dual power supplies. For full
power protection, all power supplies should be connected to UPS devices.

UPS Configurations

The ReadyDATA 5200 supports UPS devices managed over SNMP and UPS devices
managed over a remote connection.
UPS Devices Managed over SNMP
An SNMP UPS lets the ReadyDATA 5200 query the manufacturer-specific MIB. The
ReadyDATA 5200 monitors and manages the UPS through SNMP. The Ethernet connection
between the UPS and the ReadyDATA 5200 passes through a switch.
The following figures show scenarios that include a UPS that is managed over SNMP.
Although dual power supplies and dual UPS devices are not shown in all figures, for full
power protection, each power supply should be connected to a UPS.
ReadyDATA 5200

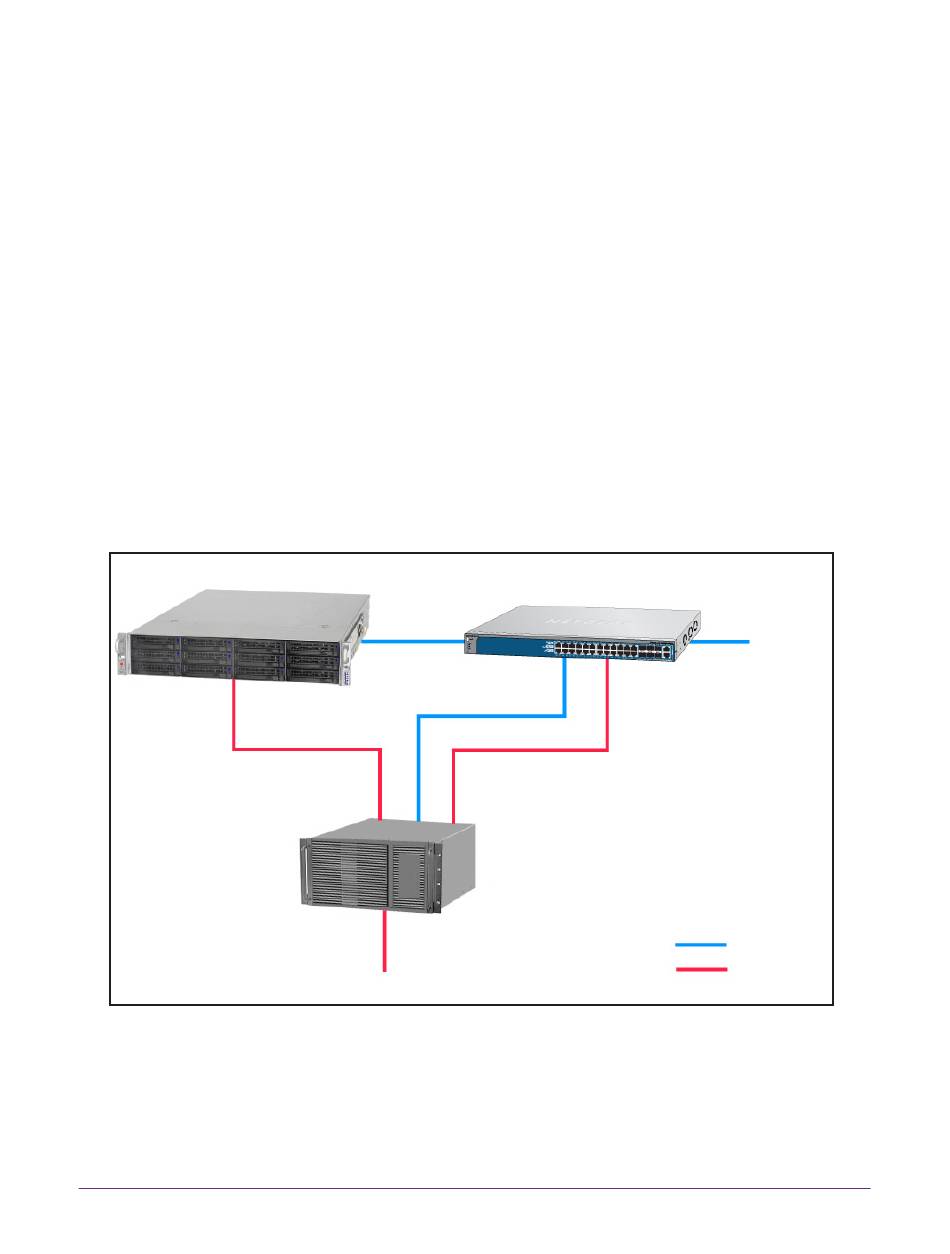

Figure 8. ReadyDATA 5200 with a UPS managed over SNMP
ReadyDATA OS 1.2
SNMP UPS
UPS power input
System Maintenance and Monitoring
150
Switch
Ethernet
Power
Network
