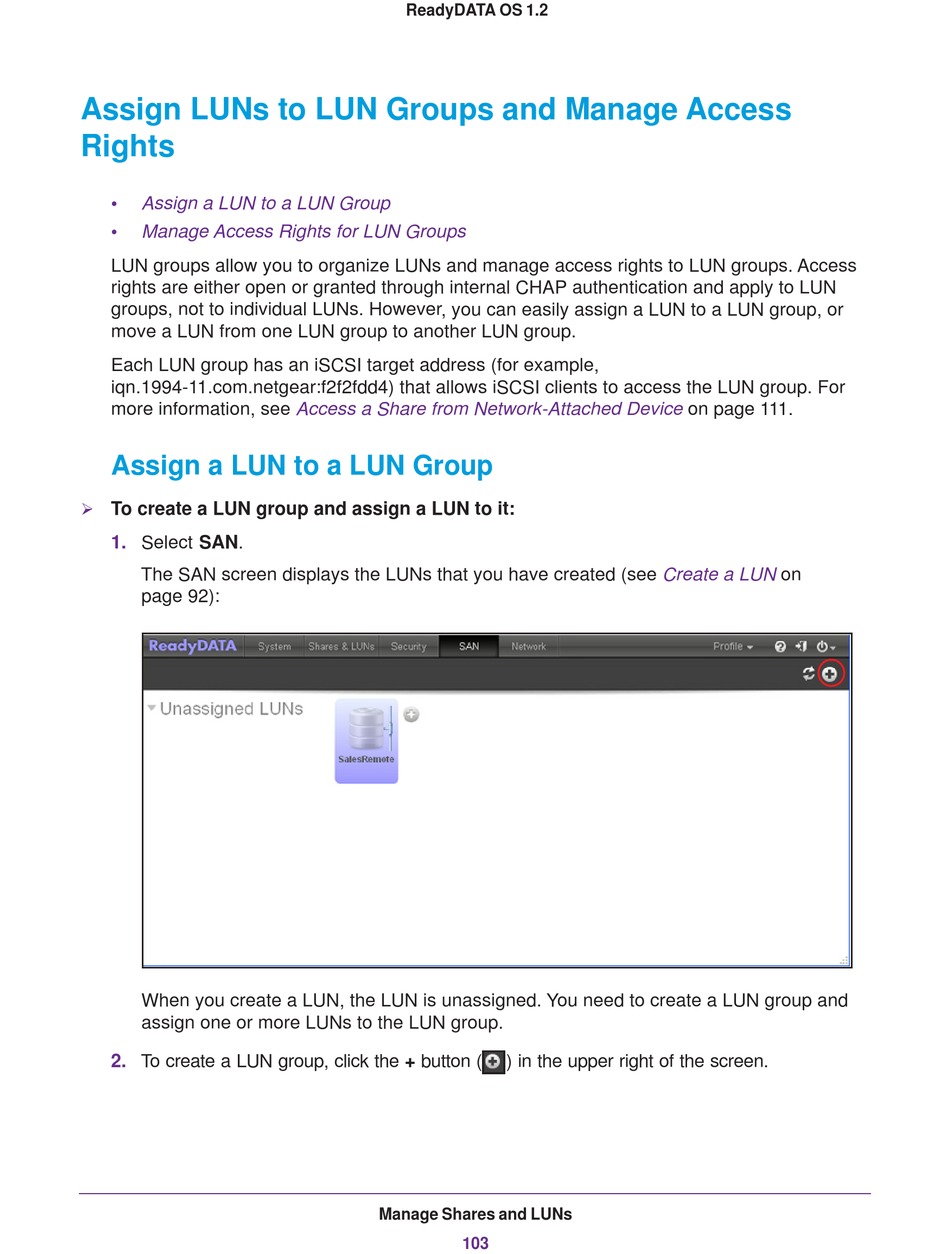

Assign LUNs to LUN Groups and Manage Access
Rights
•

Assign a LUN to a LUN Group

• Manage Access Rights for LUN Groups
LUN groups allow you to organize LUNs and manage access rights to LUN groups. Access
rights are either open or granted through internal CHAP authentication and apply to LUN
groups, not to individual LUNs. However, you can easily assign a LUN to a LUN group, or
move a LUN from one LUN group to another LUN group.
Each LUN group has an iSCSI target address (for example,
iqn.1994-11.com.netgear:f2f2fdd4) that allows iSCSI clients to access the LUN group. For
more information, see
Assign a LUN to a LUN Group

To create a LUN group and assign a LUN to it:
1. Select SAN.
The SAN screen displays the LUNs that you have created (see
page 92):
When you create a LUN, the LUN is unassigned. You need to create a LUN group and
assign one or more LUNs to the LUN group.
2. To create a LUN group, click the + button (
ReadyDATA OS 1.2
Access a Share from Network-Attached Device
Manage Shares and LUNs
103
Create a LUN
) in the upper right of the screen.
on page 111.
on
