Note: When you span a volume across several enclosures, the volume is
dependent on the availability of all enclosures. If one enclosure fails,
the entire volume goes offline.
Graphical Enclosure and Color Coding of the Disks
Onscreen
The physical disks that are installed in the ReadyDATA 5200 and optional expansion disk
arrays are represented in a graphical enclosure onscreen:

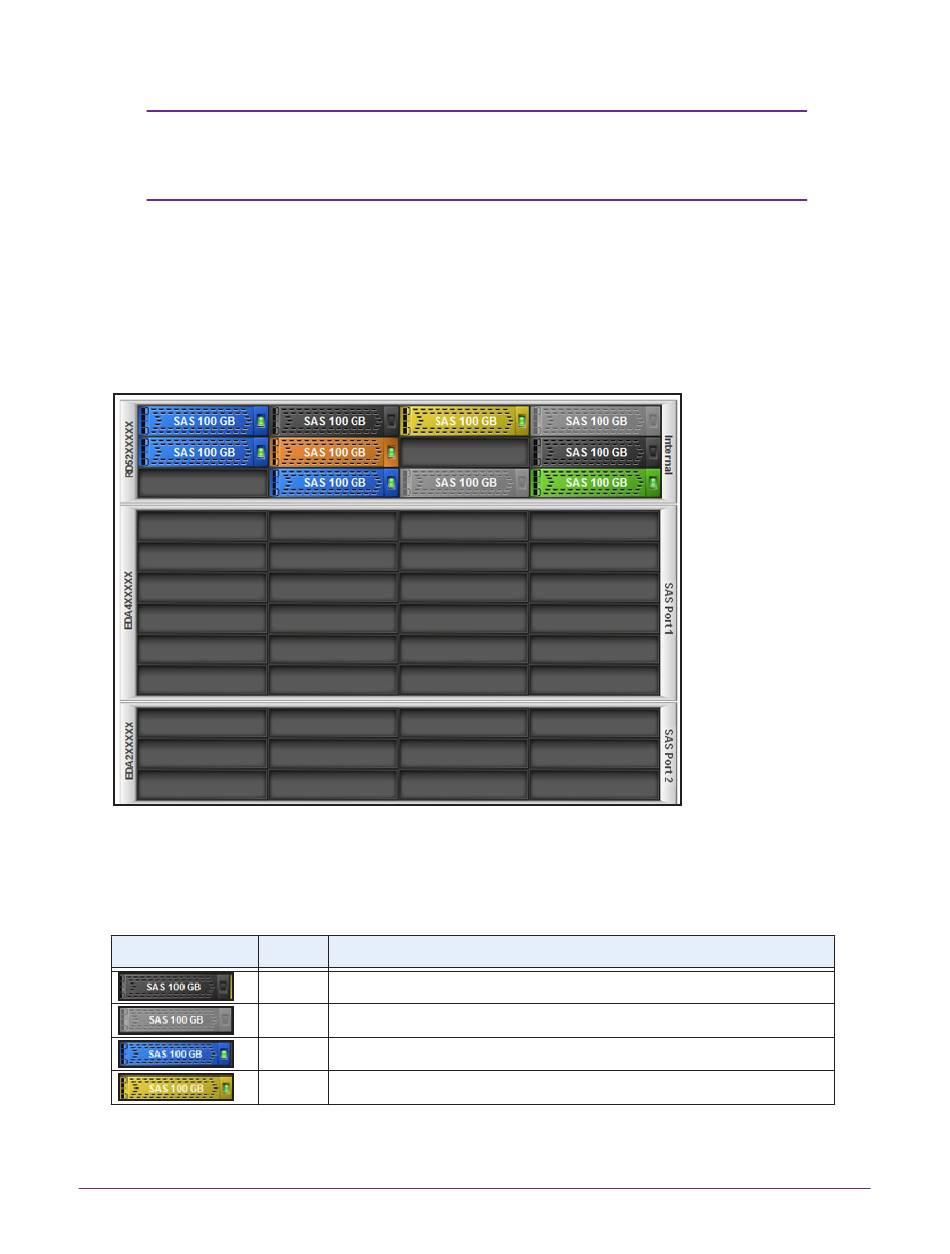

Figure 3. ReadyDATA 5200 with optional disk expansion arrays as displayed on Dashboard.
The disks in the graphical enclosure are color coded. The meaning of the colors is explained
in the following table:
Table 2. Disk color codes
Sample Color
Black
Gray
Blue
Yellow
ReadyDATA OS 1.2
Description
Not assigned to a volume. Available for selection.
Assigned to a volume. Not available for selection.
Member of the displayed volume.
Write boost disk for the displayed volume.
