9460/9460KP/9462/9462KP System Manual

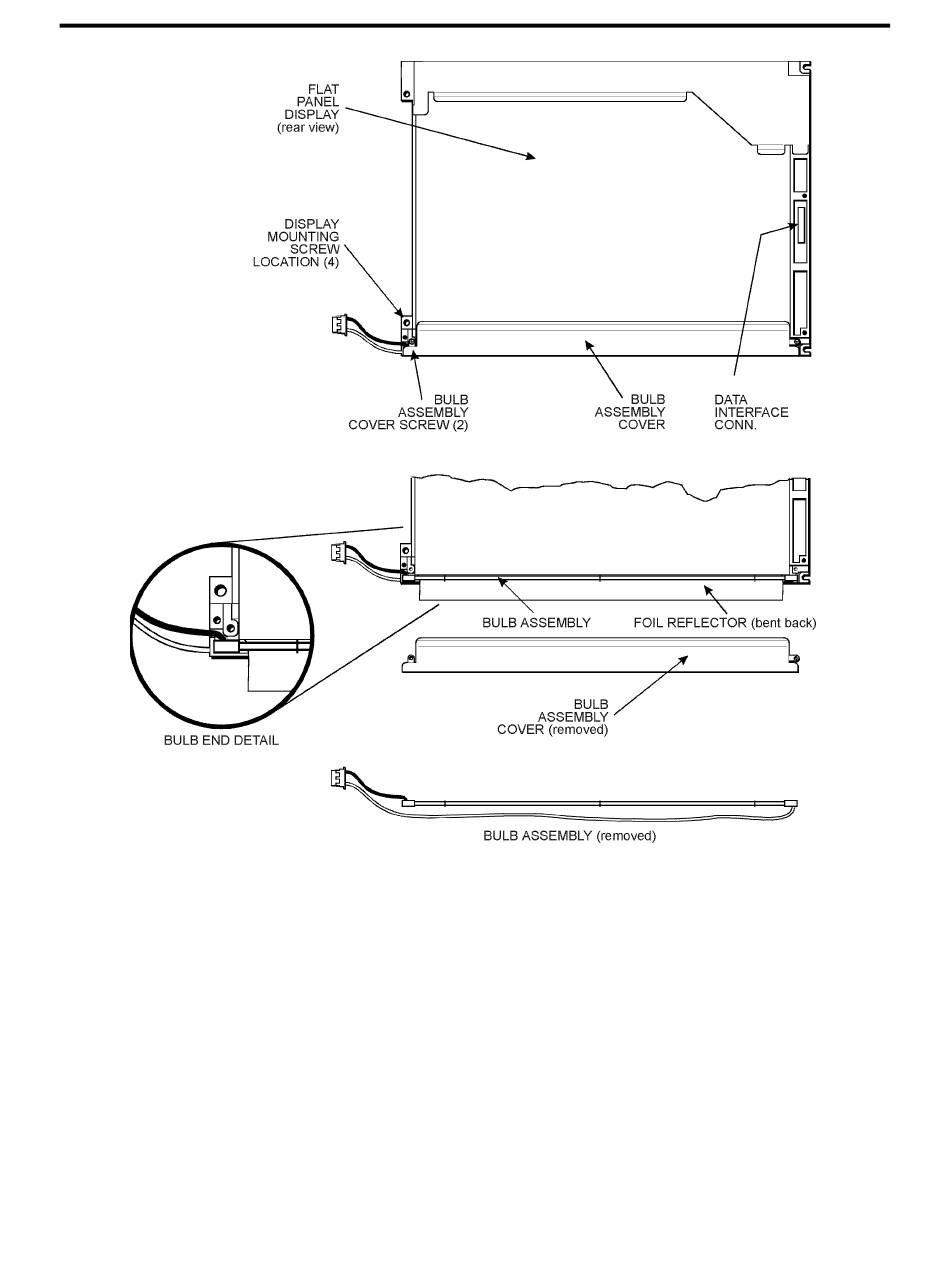

Figure Appendix D -4. Model #AA12SB6C-ADFD Bulb Assembly - Rear View
15. Because the white wire runs under the bulb assembly, detach the rear of the display
from the front with a small flat-bladed screwdriver.
16. Lift the rear display panel section to expose the full bulb assembly. Note how the
wiring on the bulb assembly is routed.
17. Pop the wires out of the wire guides and remove the bulb assembly.
18. Insert the new bulb assembly. Use care as the bulbs are fragile.
19. Route the wiring to the original position.
20. Cover the bulb assembly with the foil reflector, and replace the bulb assembly cover.
21. Repeat steps 1 through 12 to reassemble the unit.
