4. Insert the three wire ends of the power cable into the three holes of the block plug.
Insert the Protective Earth GND ground, L1, and L2/N wires into the corresponding
holes, as shown in Figure Chapter 3 -16. Be sure that no bare wires are exposed.
5. Tighten the three screws above the wires to hold them firmly in place.
Never tighten the three screws of the block plug when the cable is con-
nected to a power source. The screws are conductive and have full con-
tact with the cable wire.
6. Use a cable clamp and #6-32 screw (provided) to secure and provide strain relief to
the power cable. When installing the power cable to the unit, use the securing screws
on each side of the plug. This strain relief is mandatory for hazardous locations com-
pliance.
Completely loosen the two securing screws on the plug when discon-
necting the power cord from the unit.

DC Power Cable

You must create a DC power cable to supply power to units with DC power supplies.
You will need the following materials:
•
A three-position power connector (supplied)
•
A braid/foil shielded power cable with three 18 (1.0 mm), 16 (1.3 mm), or 14 (1.6
mm) AWG solid or stranded copper wire, rated 80º C or better.
Perform the following steps to create the DC power cable:
1. Cut the wire cable to the desired length.
2. Strip 0.25-inch (6 mm) of insulation from the end of the conductor wire. No bare
wire should be exposed when the cable is connected to the workstation.
3-26

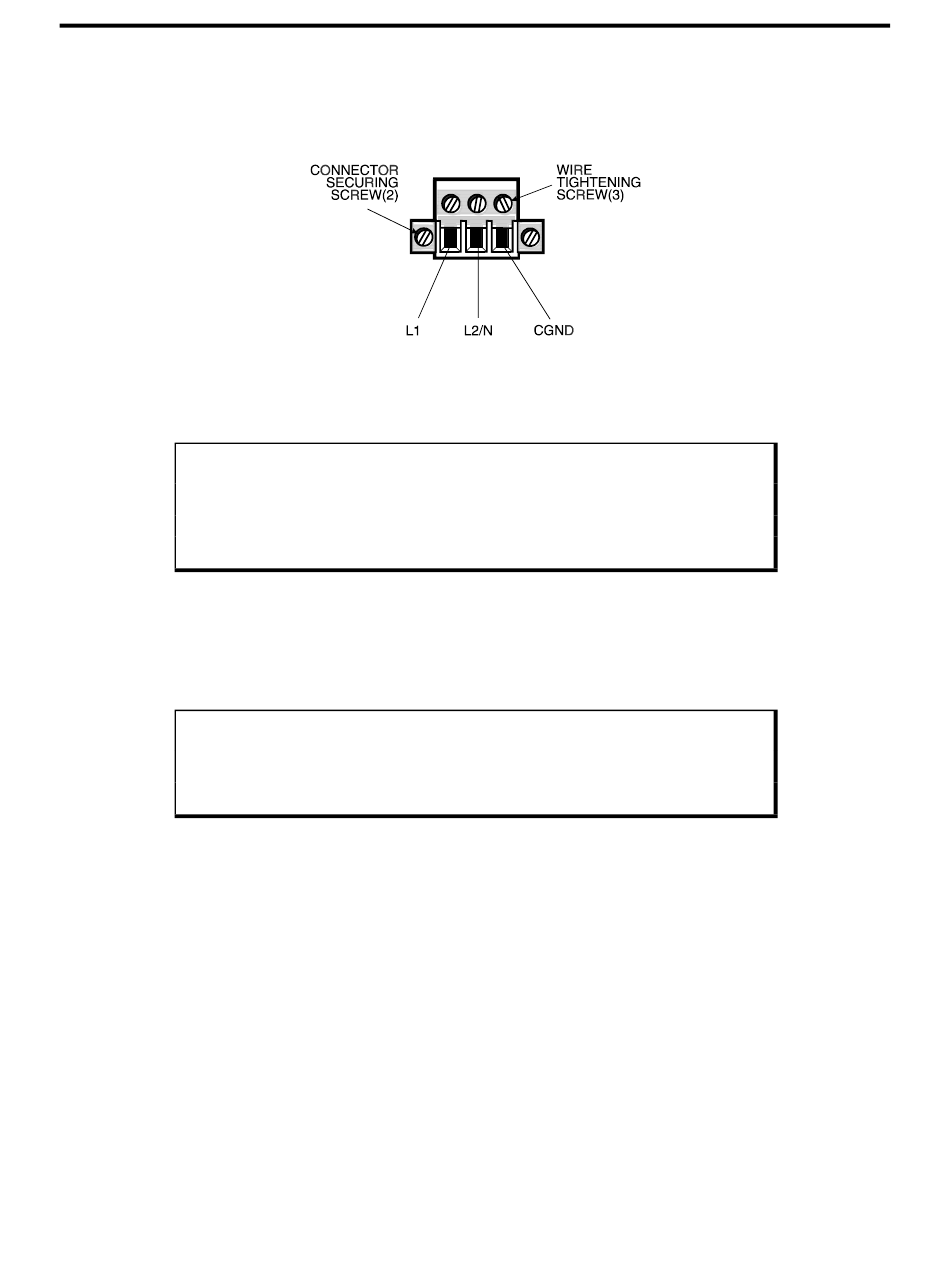

Figure Chapter 3 -16. AC Power Connector
