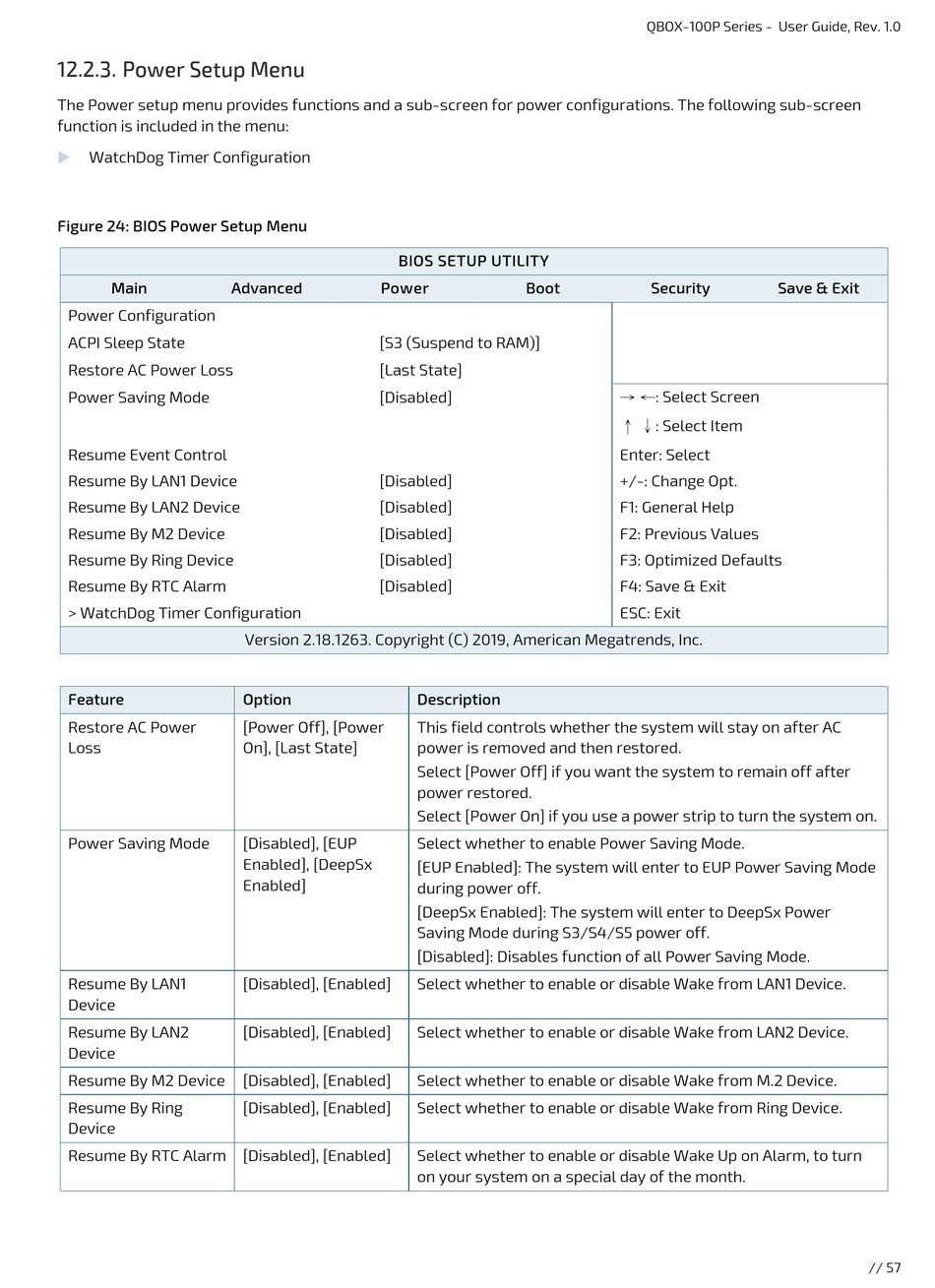

12.2.3. Power Setup Menu

The Power setup menu provides functions and a sub-screen for power configurations. The following sub-screen
function is included in the menu:
 WatchDog Timer Configuration

Figure 24: BIOS Power Setup Menu

Main Advanced
Power Configuration
ACPI Sleep State
Restore AC Power Loss
Power Saving Mode
Resume Event Control
Resume By LAN1 Device
Resume By LAN2 Device
Resume By M2 Device
Resume By Ring Device
Resume By RTC Alarm
> WatchDog Timer Configuration
Feature
Restore AC Power
Loss
Power Saving Mode
Resume By LAN1
Device
Resume By LAN2
Device
Resume By M2 Device
Resume By Ring
Device
Resume By RTC Alarm [Disabled], [Enabled]
BIOS SETUP UTILITY
Power
[S3 (Suspend to RAM)]
[Last State]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
Version 2.18.1263. Copyright (C) 2019, American Megatrends, Inc.
Option Description
[Power Off], [Power This field controls whether the system will stay on after AC
On], [Last State] power is removed and then restored.
Select [Power Off] if you want the system to remain off after
power restored.
Select [Power On] if you use a power strip to turn the system on.
[Disabled], [EUP Select whether to enable Power Saving Mode.
Enabled], [DeepSx
[EUP Enabled]: The system will enter to EUP Power Saving Mode
Enabled]
during power off.
[DeepSx Enabled]: The system will enter to DeepSx Power
Saving Mode during S3/S4/S5 power off.
[Disabled]: Disables function of all Power Saving Mode.
[Disabled], [Enabled] Select whether to enable or disable Wake from LAN1 Device.
[Disabled], [Enabled] Select whether to enable or disable Wake from LAN2 Device.
[Disabled], [Enabled] Select whether to enable or disable Wake from M.2 Device.
[Disabled], [Enabled] Select whether to enable or disable Wake from Ring Device.
Select whether to enable or disable Wake Up on Alarm, to turn
on your system on a special day of the month.
QBOX-100P Series - User Guide, Rev. 1.0
Boot Security
→ ←: Select Screen
↑ ↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Save & Exit
// 57
