11/ Standard Interfaces – Pin Assignments
Low-active signals are indicated by a minus sign.

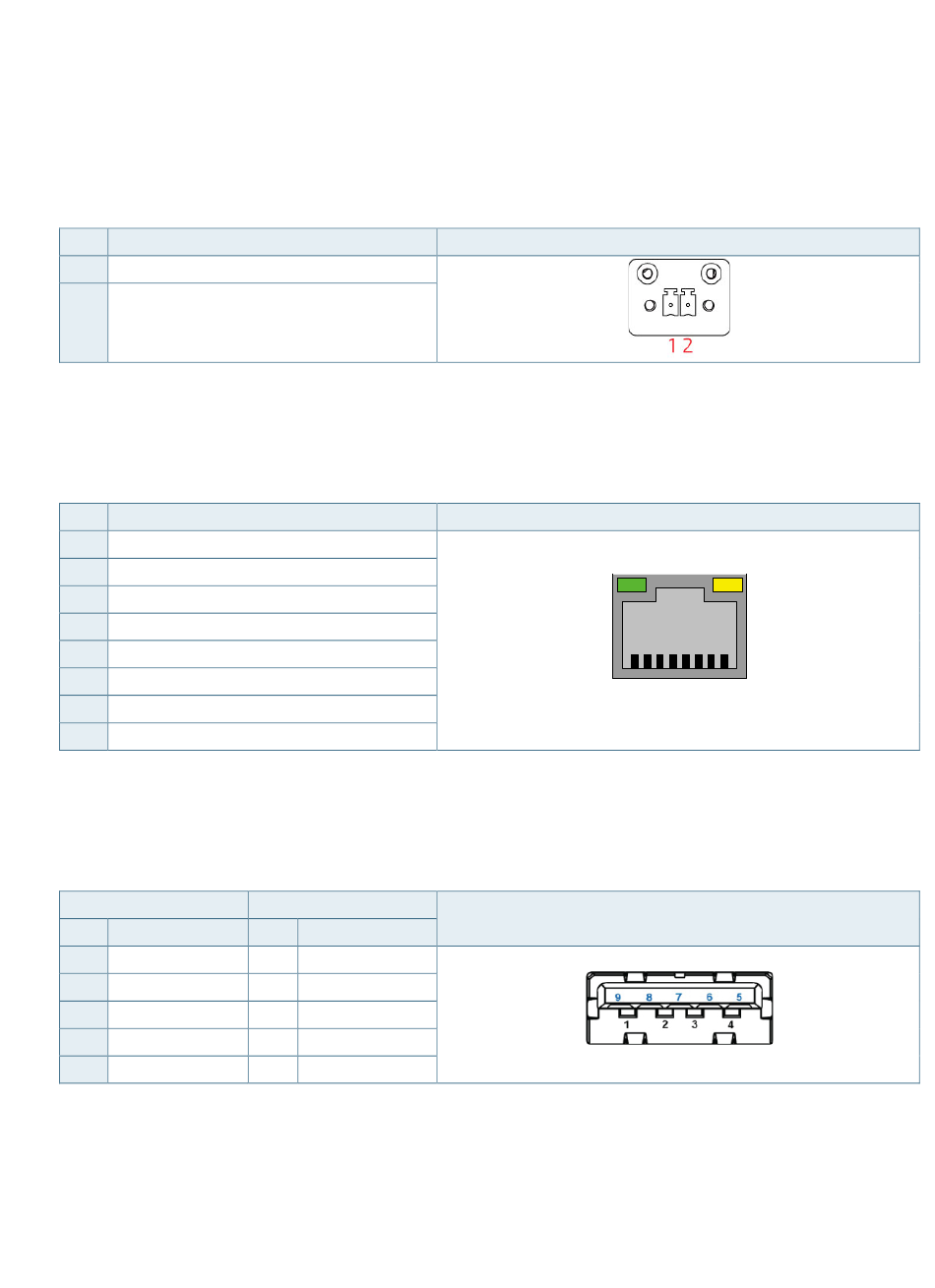

11.1.1. 12 V DC Power Input

Table 5: 12 V DC Power Input (see Figure 1, pos.1)

Pin Signal Name
1
+12V DC
2 GND

11.1.2. Ethernet Connectors

Table 6: Ethernet Connector (see Figure 1, pos. 6)

Pin Signal Name
1 TX1+
2 TX1-
3 TX2+
4 TX3+
5
TX3-
6 TX2-
7
TX4+
8 TX4-

11.1.3. USB 3.0 Port

Table 7: USB 3.0 Port (see Figure 1, pos. 7)

USB 2.0 Contact Pins
Pin Signal Name
1 +USBVCC
2 USB_D-
3 USB_D+
4 GND
USB 3.0 Contact Pins
Pin Signal Name
5 USB_RX-
6 USB_RX+
7 GND
8 USB_TX-
9 USB_TX+
12 V DC Power Input (2-pin Phoenix Connector)
LAN1, LAN2 (RJ45)
9-pin USB Connector Type A Version 3.0 / 2.0
