7.1. System Mounting

In order to adapt the QBOX-100P Series for mounting we offer different mounting solution such as:
 QBOX-100P Series configuration with a DIN rail mounting kit for vertical installation into a control cabinet
 QBOX-100P Series as desktop unit
Depending on the ordered QBOX-100P Series configuration, your system may be supplied with a DIN rail mounting kit
(Figure 8).

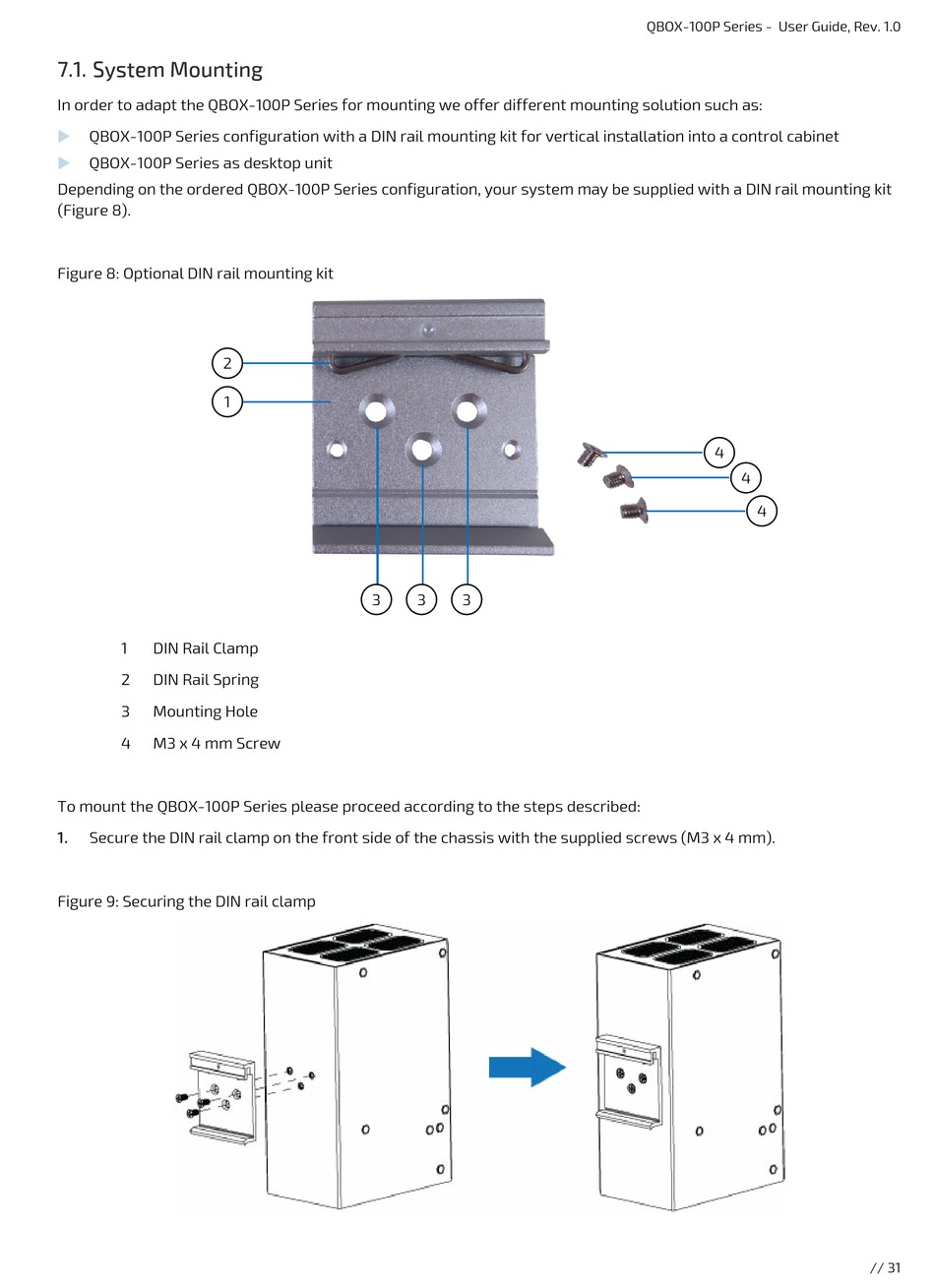

Figure 8: Optional DIN rail mounting kit

2
1
1 DIN Rail Clamp
2 DIN Rail Spring
3 Mounting Hole
4 M3 x 4 mm Screw
To mount the QBOX-100P Series please proceed according to the steps described:
1. Secure the DIN rail clamp on the front side of the chassis with the supplied screws (M3 x 4 mm).

Figure 9: Securing the DIN rail clamp

3 3 3
