10/

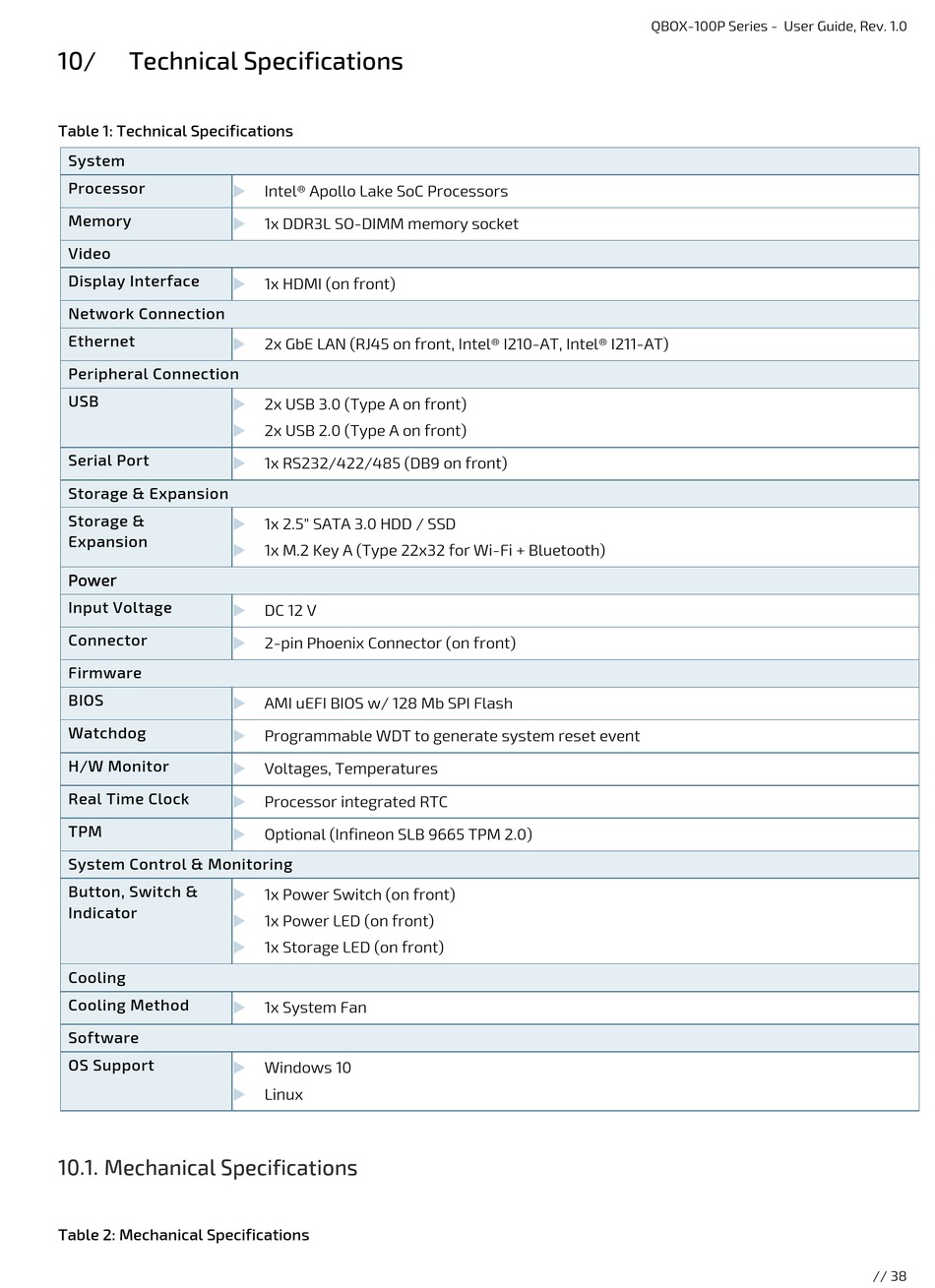

Technical Specifications

Table 1: Technical Specifications

System
Processor

Memory

Video
Display Interface

Network Connection
Ethernet

Peripheral Connection
USB


Serial Port

Storage & Expansion
Storage &

Expansion

Power
Input Voltage

Connector

Firmware
BIOS

Watchdog

H/W Monitor

Real Time Clock

TPM

System Control & Monitoring
Button, Switch &

Indicator


Cooling
Cooling Method

Software
OS Support



10.1. Mechanical Specifications

Table 2: Mechanical Specifications

Intel® Apollo Lake SoC Processors
1x DDR3L SO-DIMM memory socket
1x HDMI (on front)
2x GbE LAN (RJ45 on front, Intel® I210-AT, Intel® I211-AT)
2x USB 3.0 (Type A on front)
2x USB 2.0 (Type A on front)
1x RS232/422/485 (DB9 on front)
1x 2.5" SATA 3.0 HDD / SSD
1x M.2 Key A (Type 22x32 for Wi-Fi + Bluetooth)
DC 12 V
2-pin Phoenix Connector (on front)
AMI uEFI BIOS w/ 128 Mb SPI Flash
Programmable WDT to generate system reset event
Voltages, Temperatures
Processor integrated RTC
Optional (Infineon SLB 9665 TPM 2.0)
1x Power Switch (on front)
1x Power LED (on front)
1x Storage LED (on front)
1x System Fan
Windows 10
Linux
QBOX-100P Series - User Guide, Rev. 1.0
// 38
