4.2.2. Power Switch
Press this switch to turn the system on or off.
Even when the system is turned off via the power switch there is still a standby voltage on
the baseboard. The unit is only completely disconnected from the DC mains, when the power
is removed.
4.2.3. Power LED
The power LED lights up green if the system powered on.
Prerequisite: The system must be attached by means of the power cord to an appropriate mains (DC).
4.2.4. Storage LED
The storage LED blinks red when data is being written into or read from the HDD / SSD drive.
4.2.5. HDMI
One external (digital) display can be connected to this HDMI connector.
4.2.6. GbE
These connectors are Gigabit Ethernet 10/100/1000 Mbit/s, IEEE 1588 capable interfaces. The connectors are
standard 8-pin RJ45 type connectors with status LEDs:

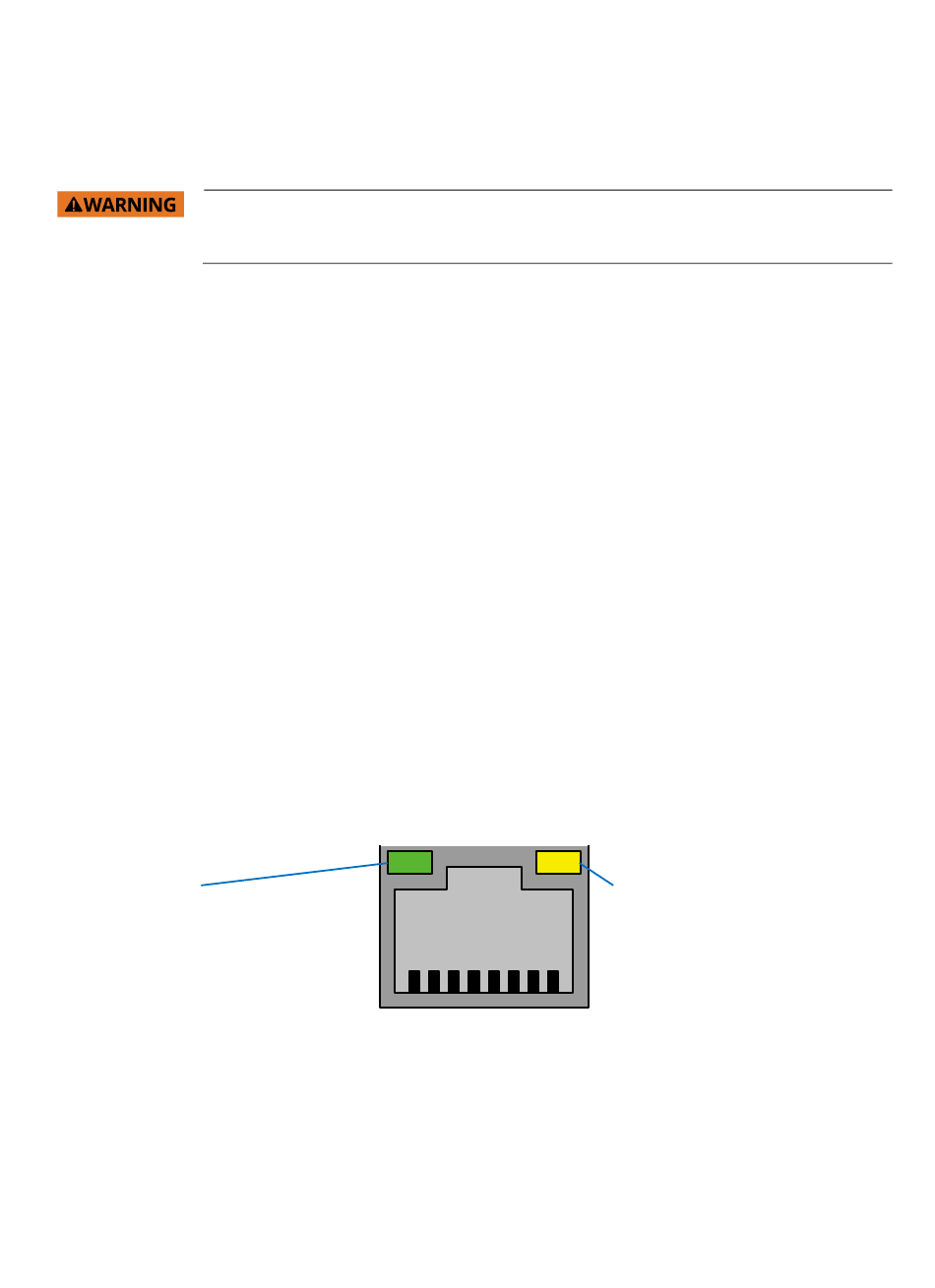

Figure 2: Ethernet LED Status
LED satatus:
Off - Link is down
Flasing Green - Link is up and active
Steady Green - Link is up, no activity
4.2.7. USB 3.0
The QBOX-100P Series provides two USB 3.0 / 2.0 interfaces. These connectors allow connection of USB 3.0 or USB
2.0 compatible devices to the system.
QBOX-100P Series - User Guide, Rev. 1.0
LED satatus:
Orange - 1000 Mbit/s link established
Green - 100 Mbit/s link established
Off - 10 Mbit/s link established
// 21
