11.1.4. USB 2.0 Port

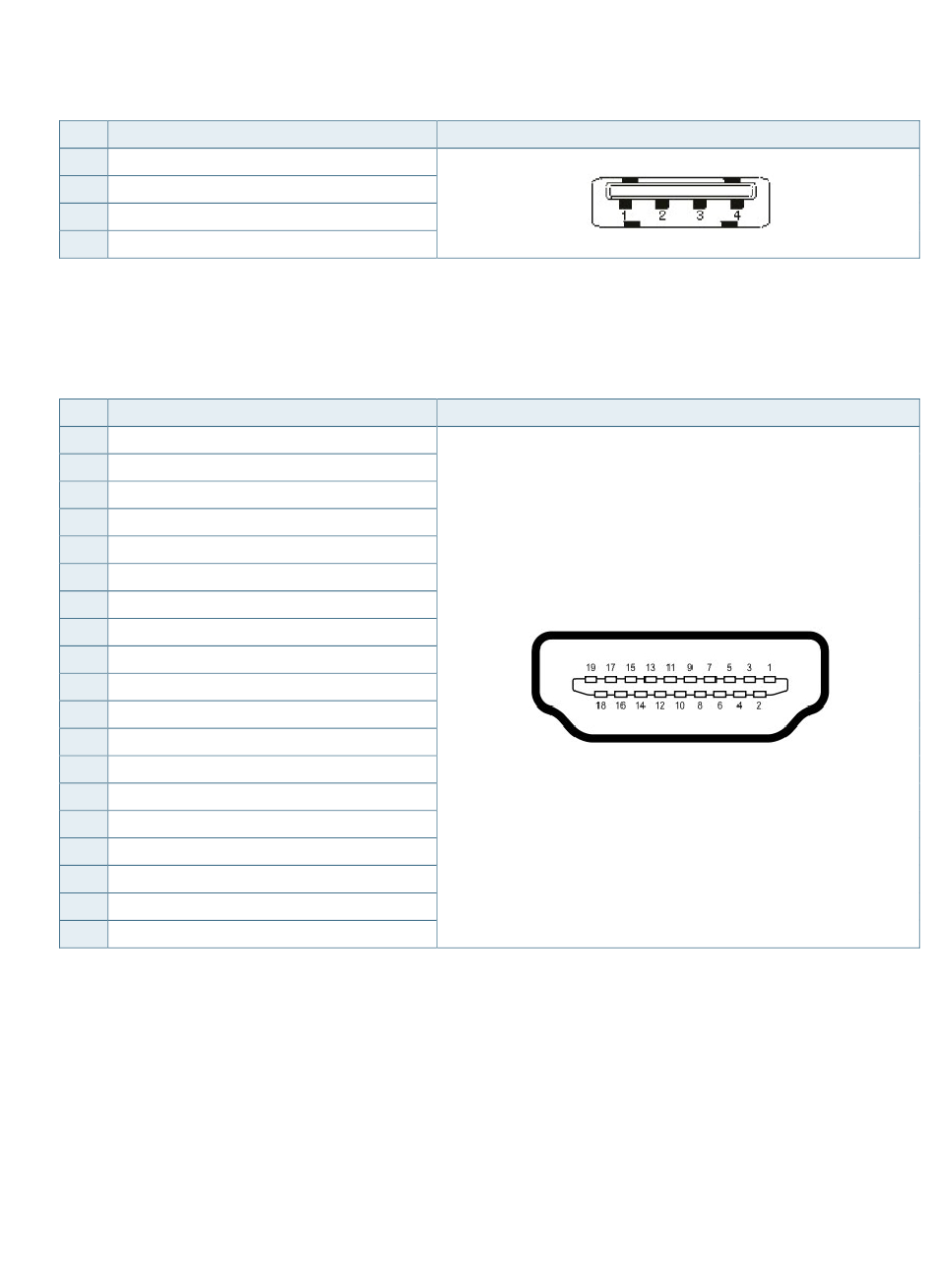

Table 8: USB 3.0 Port (see Figure 1, pos. 8)

Pin Signal Name
1 +USBVCC
2 USB_D-
3 USB_D+
4 GND

11.1.5. HDMI Connector

Table 9: HDMI Connector (see Figure 1, pos. 5)

Pin Signal Name
1 TMDS Data2+
2 Ground
3 TMDS Data2–
4
TMDS Data1+
5
Ground
6
TMDS Data1–
7 TMDS Data0+
8 Ground
9 TMDS Data0–
10 TMDS Clock+
11 Ground
12 TMDS Clock–
13 Reserved
14
Reserved
15 DDC_CLK
16 DDC_DATA
17 Ground
18 +5 V Power
19 Hot Plug Detect
4-pin USB Connector Type A Version 2.0
HDMI Connector Type A Version 1.4
