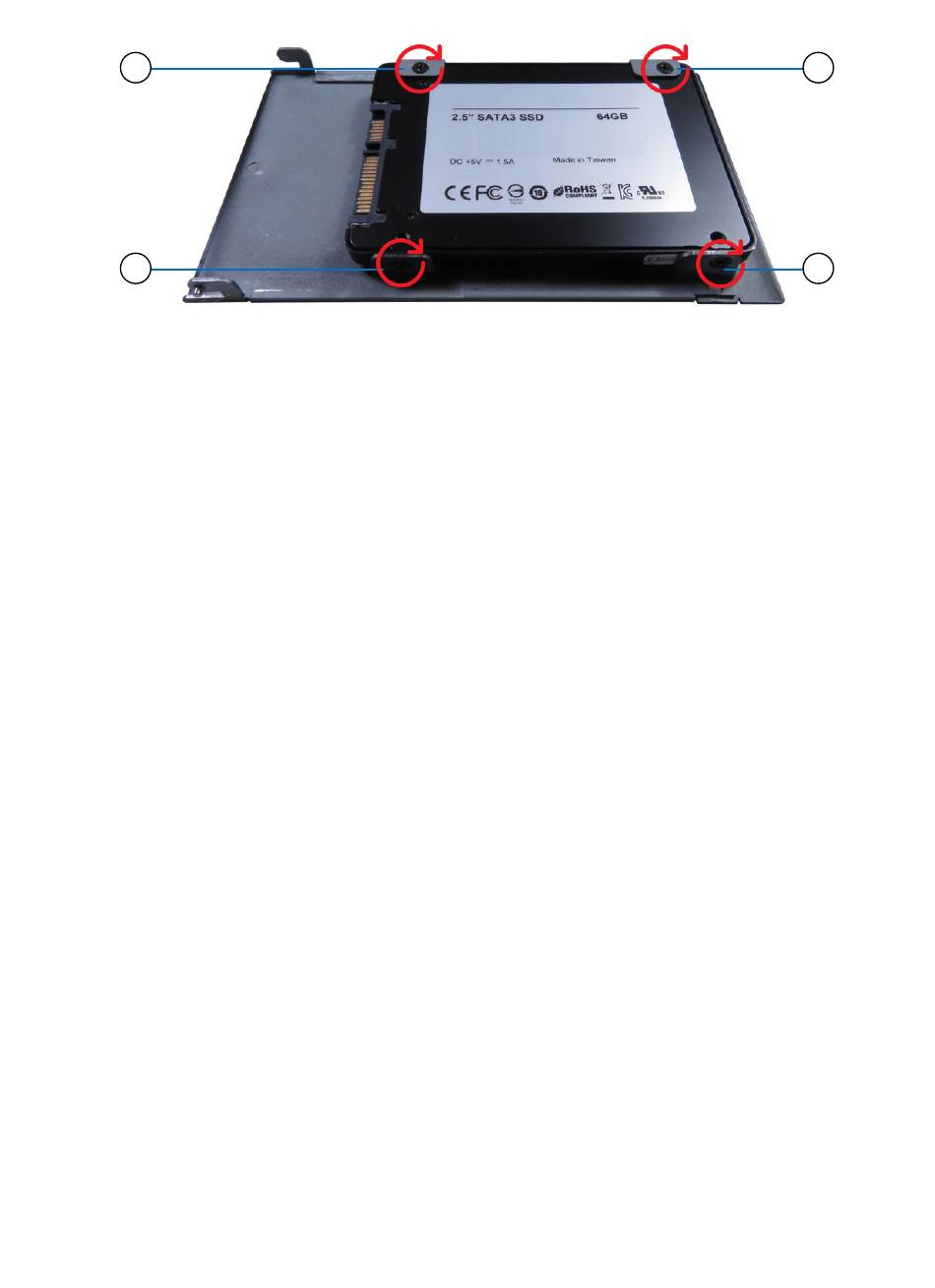

1 Hard Disk Bracket
3. Connect the SATA power / data connector (Figure 3, pos. 1) to the HDD / SSD.
4.
In order to close the QBOX-100P Series, proceed step 10 & 11 described in the subsection 5.1 "Opening and Closing
the QBOX-100P Series".

5.1.2. Installing an M.2 expansion card

To have access the M.2 socket please proceed according to the steps described:
1. Open the device as described in the subsection 5.1 "Opening and Closing the QBOX-100P Series" (step 1-8).
2. Locate the M.2 socket (SLOT1) (Figure 4, pos. 3) and the corresponding fixing bolt (Figure 4, pos. 4).
3.
Align the notches on the M.2 expansion card with the notches in the M.2 socket (SLOT1). Insert the M.2 expansion
card into the corresponding socket (Figure 4, pos. 3) and rotate it down with the fixing hole of the card over the
fixing bolt.
4. Press the M.2 expansion card down on the side with the fixing hole and secure it with the available fastening
screw (Figure 4, pos. 4).
5. In order to close the QBOX-100P Series, proceed step 9 - 11 described in the subsection 5.1 "Opening and Closing
the QBOX-100P Series".
QBOX-100P Series - User Guide, Rev. 1.0
