Zip HydroTap G4 Boiling, chilled sparkling Command-Centre Installation Instructions Manual page 24

Note 1 This appliance is intended for use with the Zip HydroTap
Note 2 Water connections must be pointing vertically upwards.
Note 3 The booster unit should be installed as close as possible to the Zip HydroTap
connection hoses cannot be lengthened.
3.4 Braided hose connections
• The cold water inlet (blue) and hot water outlet (red) are marked on the rating plate. Connect the
braided hoses from the 'BYPASS OUT' fitting on the HydroTap
(marked blue) and from the outlet of the booster unit (marked red) to the 'BYPASS IN' fitting on the
Command-Centre
by applying a spanner to the flats of the inlet and outlet connections when tightening the braided hose
connectors. Do not overtighten ! Tighten the braided hoses by hand, then turn an additional 90° - 180°
with a spanner.
• Once the water connections have been made, check for any leaks and rectify as necessary.

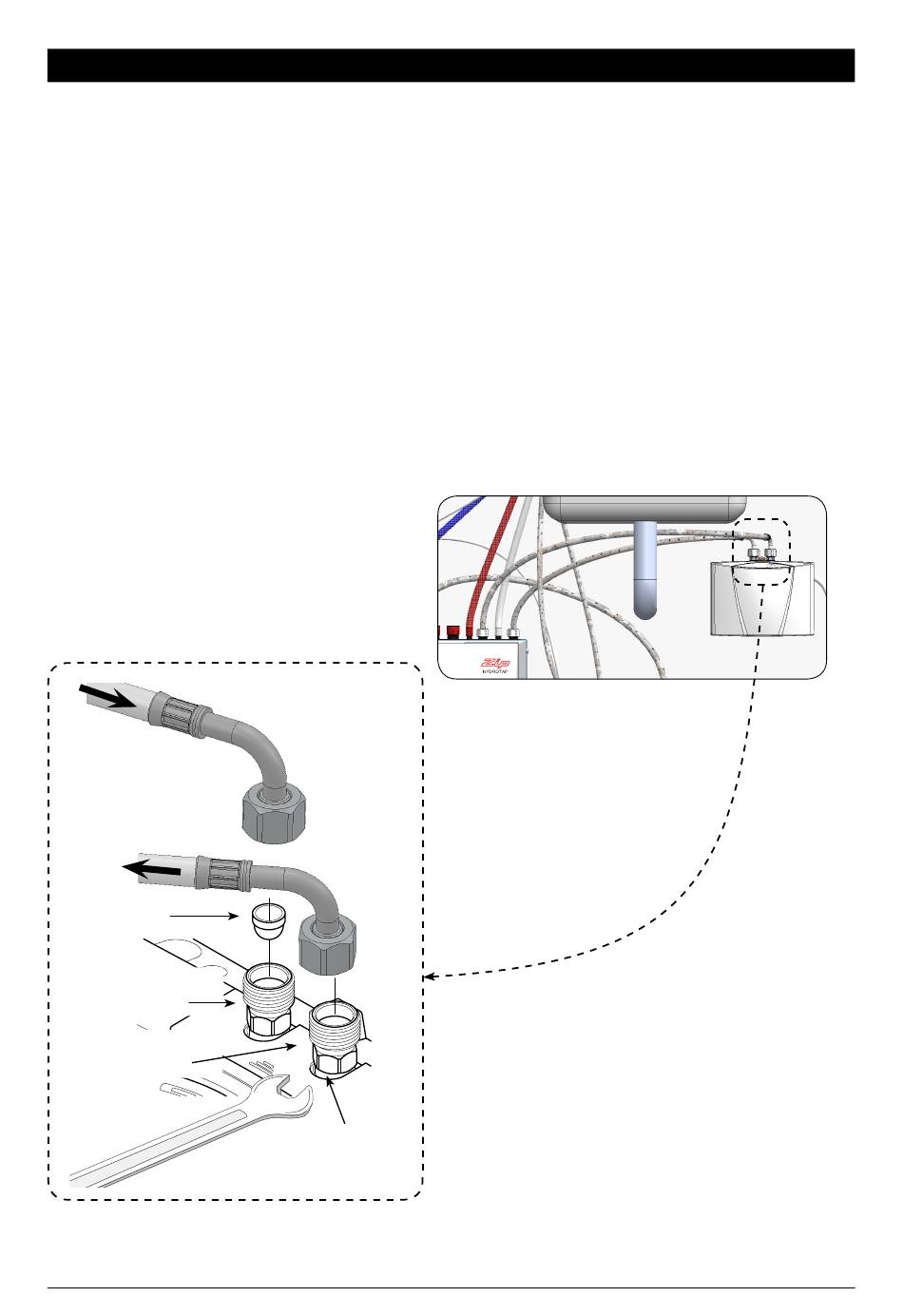

Typical installation
Braided hoses
Strainer
Cold water connection
(inlet, 3/8" BSP)
Hot water connection
(outlet, 3/8" BSP)
Page 24 of 40
Booster system
. Avoid exerting any mechanical pressure on the booster. This can be achieved
TM
Hold the hexagon while
tightening the braided
hose fittings
802005UK - Residential (Boiling),chilled and sparkling installation instructions - Aug 2015 - v2.01
G4 Command-Centre
® TM
G4 as the 500mm
®
G4 to the water inlet of the booster
®
