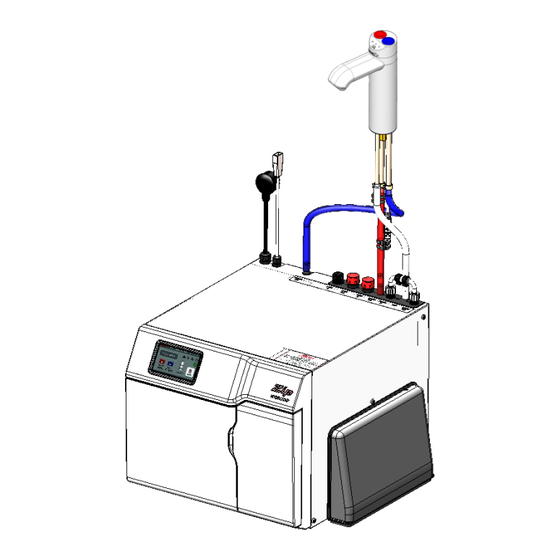

Zip HydroTap G4 User Manual
Hide thumbs
Also See for HydroTap G4:
- User manual ,
- Installation instructions manual (40 pages) ,
- Installation and operating instructions manual (28 pages)
Subscribe to Our Youtube Channel
Related Manuals for Zip HydroTap G4
Summary of Contents for Zip HydroTap G4
- Page 1 ZIP HydroTap G4 ® User Guide Affix model number label here 802743UK 802743UK G4 IS IT Industrial User Guide - Jan. 2016 - V2.02 Page 1 of 20...
-
Page 2: Table Of Contents
Table of contents ap safety ..........Page 2 to 3 • T • Tap operation ........... Pages 3 to 4 • Tap lights ..........Page 5 • LCD screen & menu ......... Pages 6 to 18 • Filter maintenance ........Pages 18 to 19 • Home menu icons ........ -
Page 3: Tap Safety
Tap safety IT two button tap safety The safety lock feature is provided to prevent boiling water flowing if the red BOILING control is inadvertently pressed. This function can be activated and deactivated from either the tap (IT only) or from the touch screen display (located on the Command-Centre To activate the safety lock (from the IT tap) -
Page 4: Tap Operation
Tap operation IS three button tap operation Upper red button for dispensing boiling water Middle red button for safety lock Lower blue button for chilled water To dispense boiling water Press both The three button tap requires the middle red buttons red SAFETY lock button and red BOILING simultaneously buttons to be pressed simultaneously in... -
Page 5: Tap Lights
Tap operation IT tap operation To dispense boiling water with safety off Press the red BOILING button in order to dispense boiling water. Water will flow from between 5 and15 seconds (this is user adjustable, see page 18). Releasing the button will stop the flow of water and will allow the unit to reset for repeat operations. - Page 6 LCD Screen Zip HydroTap G4 features a ‘TOUCH’ screen for easy setup and operation ® adjustment. (See page 20 for home menu icons). Other possible messages in status window: Status** Information Notes Safety OFF Product is in normal operation mode...
- Page 7 LCD Screen menu Main Sub menu Sub menu Section menu options Language English / Deutsch • Product info. • Module Revision Serial number Information Product number Calibration • Filters log • Filters • System faults • Faults found • Filter flush • Start/Stop • Filter reset • Internal/External...
- Page 8 LCD Screen operation - Section A A. Set language • Press the [MENU] button for main menu. • Press the [Language] button. • Select the language. • Press [<=] button for the previous menu. LCD Screen operation - Section B B.
- Page 9 LCD Screen operation - Section C C. Install Once your Zip HydroTap G4 unit has been installed, Go to the install menu to ® configure the system settings for your product. Sub menu 1. - Filter flush. 2. - Filter reset.
- Page 10 Caution In general, boiling water units may vent steam from the tap spout. Take care to avoid personal injury whenever this occurs. The Zip HydroTap G4 is equipped with a self-calibrating program. On start ® up, the controls take the system through a calibration process. Once this mode is completed the system reverts back to normal operation.
- Page 11 This can only be done by a Zip technician. Please contact your Zip service provider for further assistance.
- Page 12 LCD Screen operation - Section E E. Security The Zip HydroTap G4 allows the appliance coordinator to set up a password ® to protect against users changing the preferred system settings. To set a password • Press the [MENU] button for main menu.
- Page 13 • Press [NEXT] button to set time. Set temperature Zip HydroTap G4s are designed to operate within 1ºC to 2ºC of set point for ® boiling water and between 5ºC to 9ºC for chilled drinking water. All boiling water units are self calibrating to 98ºC, which is the recommended setting.
- Page 14 LCD Screen operation - Section G Filter Zip HydroTap G4 allows the user to adjust filter life and edit filter usage. ® Note The filter life may be set as a function of litres used, or in months from the filter change. When the first of these functions is reached (i.e.
- Page 15 LCD Screen operation - Section G Energy modes This mode allows the HydroTap G4 to go into energy saving mode. There ® are two options available: sleep mode and on/off mode. In sleep mode the unit will go to “Sleep” after a 2hr period of inactivity. The boiling water will gradually drop to either 68°C or room temp, as shown in the table below and the chilled water will be ON or OFF.
- Page 16 LCD Screen operation - Section G Note Any attempt, during off mode, to dispense water, will bring the unit out of sleep mode. The unit will return to sleep mode after 2 hours of non use. Please allow sufficient time for the water to reach the set temperature after disabling the sleep mode.
- Page 17 LCD Screen operation - Section G Safety To allow the safety setting to be changed using the touch screen • Press the [MENU] button for main menu. • Press the [Settings] button. • Enter your 4-digit password and press [Enter]. •...
-
Page 18: Lcd Screen & Menu
LCD Screen operation - Section G Dispense Times The ability to change the maximum dispensing time for both the hot and cold water has been introduced. The default settings for the maximum dispensing times is 15 seconds. The operator may change both the hot and cold dispensing times from 5 to 15 seconds, in increments of 1 second. -
Page 19: Filter Maintenance
Filter maintenance • Caution. A small amount of water will drip as the cartridge is removed. • Do not tilt the cartridge as water may spill from it if tilted. • Unpack replacement cartridge and remove sanitary cap, write today’s date where shown on the label. -
Page 20: Home Menu Icons
