O-ring
Base block
spider
Base block nut
1.17

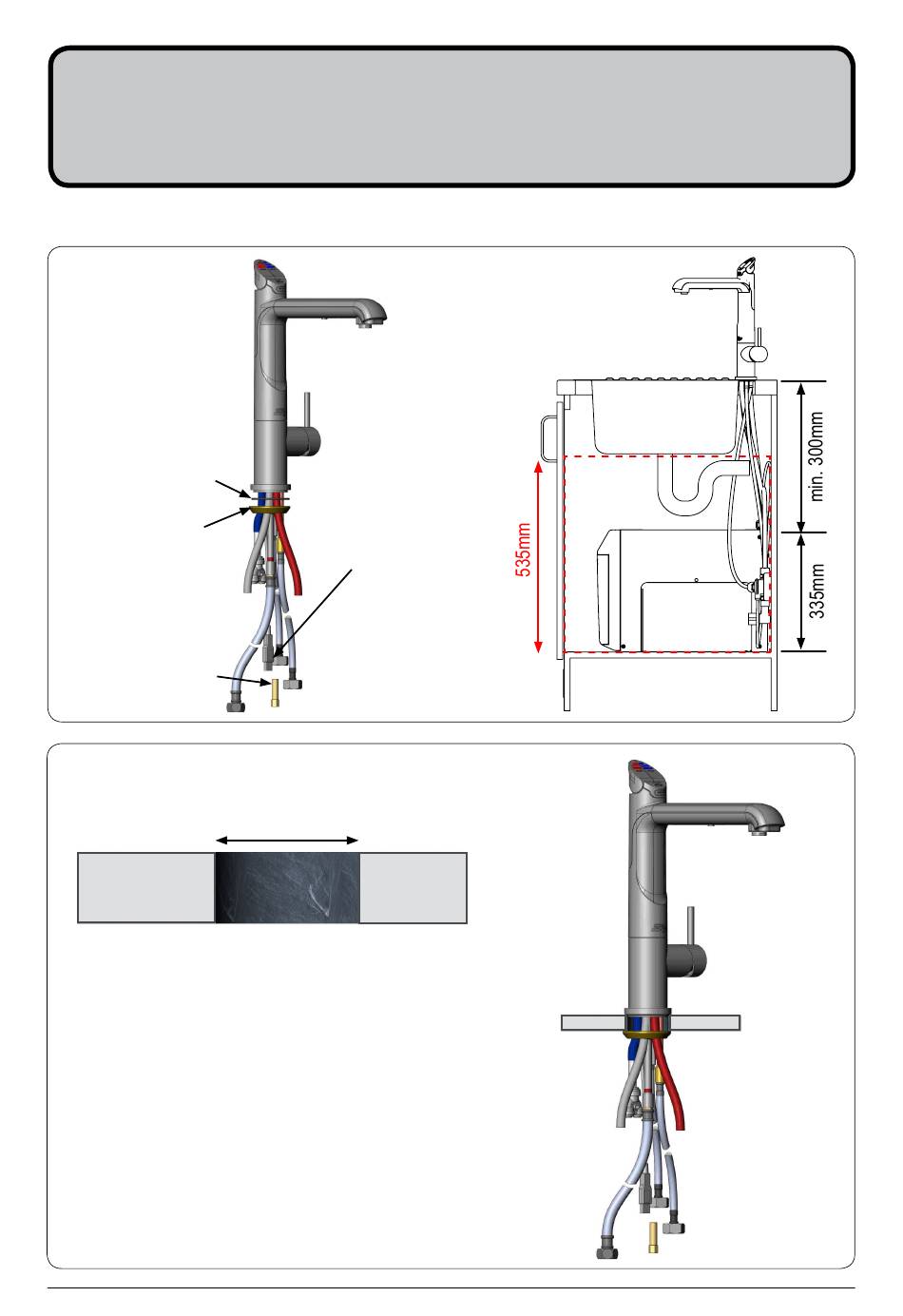

Cut a
50mm hole in the worktop / sink.
Ø
Note make sure the tap location will allow the tap
spout to drain into the sink.
Note All silicon tubes must be cut to size. They must have
a constant fall back to the Command-Centre
Fit the o-ring to the underside of the AIO tap then pass
•
tubes, hoses and cable through the Ø50mm hole
Feed each of the tubes and electrical cable
•
evenly in between the legs of the base block
spider.
Fit the base block spider to the underside of the
•
All-in-One tap.
Clamp in position using the base block nut.
•
802005UK - Residential (Boiling),chilled and sparkling installation instructions - Aug 2015 - v2.01
All-in-One tap
'Vented' installation
connections)
TM
USB cable
Ø50mm
.
TM
Clearance
envelope
.
