Installation Instructions - Zip HydroTap G4 Boiling, chilled sparkling Command-Centre Installation Instructions Manual

HydroTap
Special tools required
In addition to normal tools, the following will be required.
For the HydroTap
• 35mm diameter sheet metal hole punch for sinks (not supplied).
• 35mm diameter hole saw for worktops (not supplied).
• Nut runner tube spanner (supplied) for fixing the tap assembly.
For the All-in-One tap.
• 50mm diameter sheet metal hole punch for sinks (not supplied).
• 50mm diameter hole saw for worktops (not supplied).
• Nut runner tube spanner (supplied) for fixing tap assembly.
When installing a font, the following will be required
• Sheet metal punch or hole saw to suit surface being cut. Ø140m for Arc / Cube and
Ø108mm for Classic and Elite.
Hole positioning
•
Position the tap such that it dispenses into the sink bowl with ample clearance for a cup or tea
pot. Alternatively, the tap could be mounted away from the sink using a Zip Font , available as
an accessory.(see Major components and accessories, page 8).

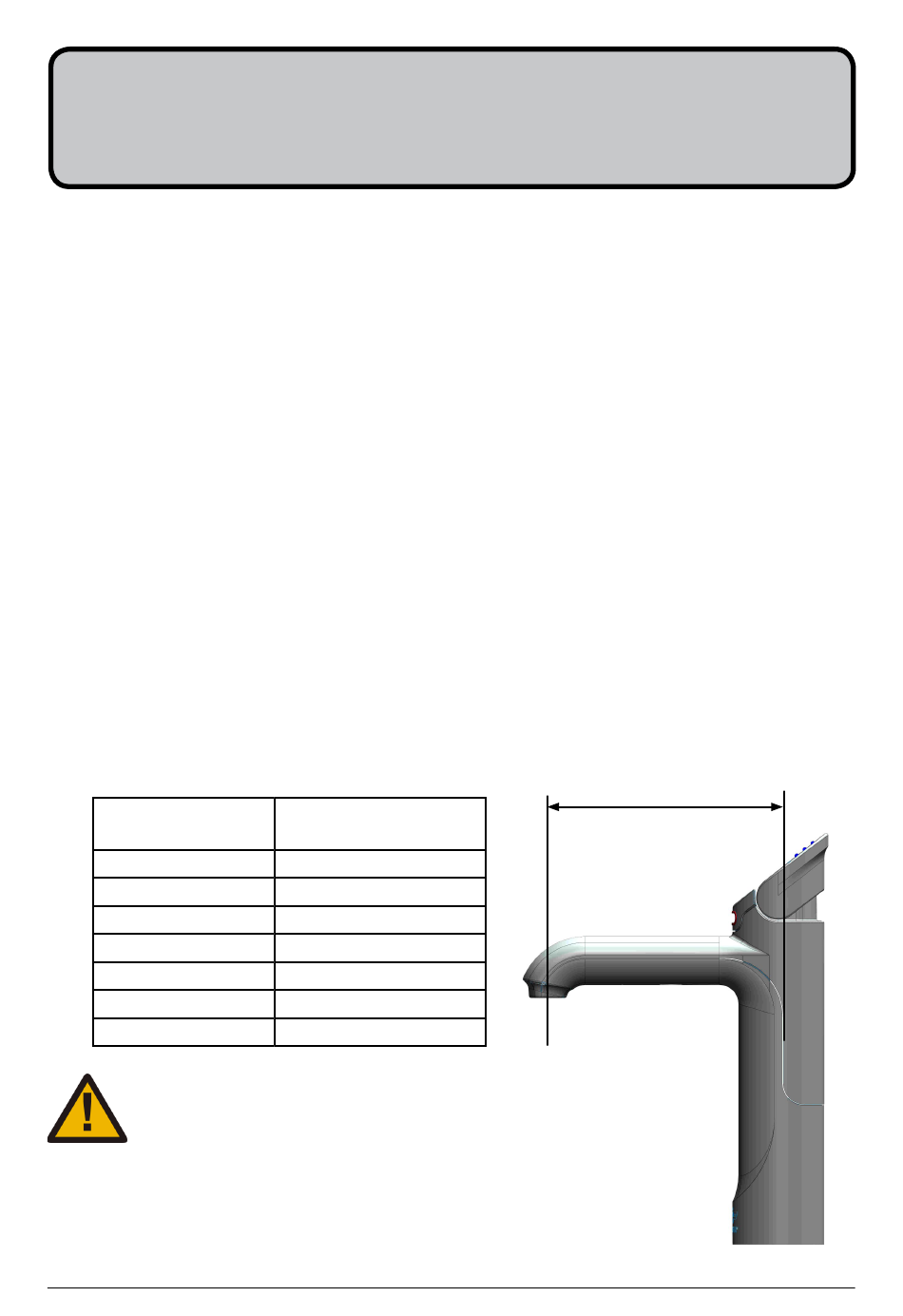

Tap positioning
Tap
Elite
HydroTap Classic
®
HydroTap Arc/Cube
®
All-in-One
Mixer - Arc
Mixer - Classic
Mixer - Cube
Note
All-in-One and mixer taps have spouts that swivel.
All images are for illustrative purposes, to aid understanding of the system
configuration, and are not prescriptive of tap positioning.
Ensure that the taps are mounted to minimise the risk of scalding by
•
accidentally dispensing boiling water while using the mixer.
Ensure that the taps are mounted in a position that allows the water to
•
safely drain to waste throughout the complete positional range.
802005UK - Residential (Boiling),chilled and sparkling installation instructions - Aug 2015 - v2.01
Section 1
G4 tap installation
®
G4 and mixer taps.
®
Recommended dispensing
distance (mm)
116
116
171 (-174 extended)
211
231
270
310
116
BC HydroTap G4 Classic
®
