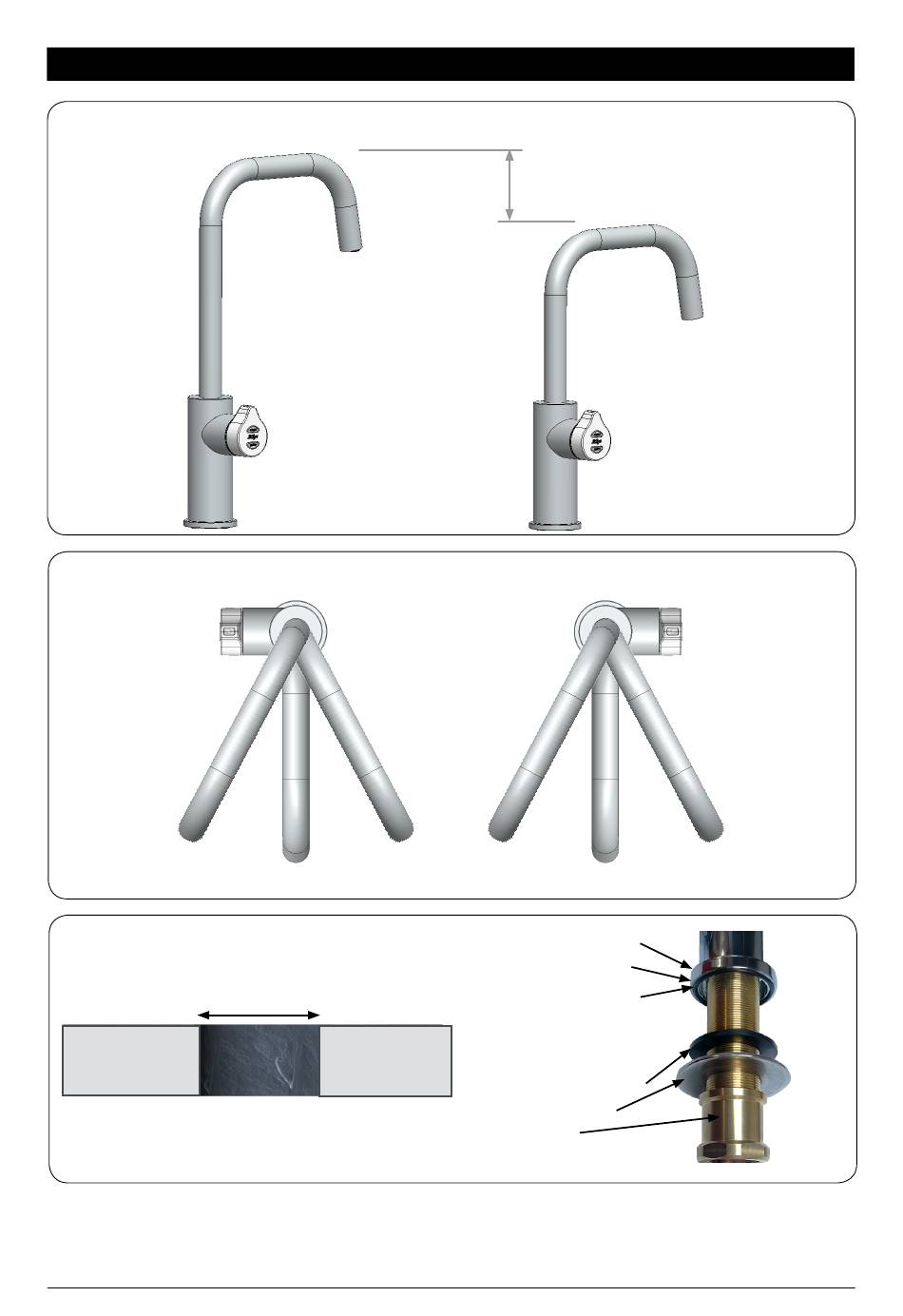

1.7 Height adjustment
1.8 Angular adjustment
Left hand control
*A
1.9 Mounting
Cut a
35mm hole in the work / sink top.
Ø
Note Make sure the tap location will allow
the tap spout to drain into the sink.
Note Use the Tube kit fitting instructions supplied with the tap kit to connect the tap head assembly to the
Command-Centre
after the tap has been mounted securely.
TM
802005UK - Residential (Boiling),chilled and sparkling installation instructions - Aug 2015 - v2.01
Installation instructions
(fixed position options)
(fixed position options)
B
(See hole positioning, page 11 )
Ø35mm
50mm
C
C
Upper o-ring
Base Ring
Lower o-ring
(above work / sink top)
Lower rubber washer
Metal washer
Nut
(below work / sink top)
Right hand control
*A
B
Page 15 of 40
