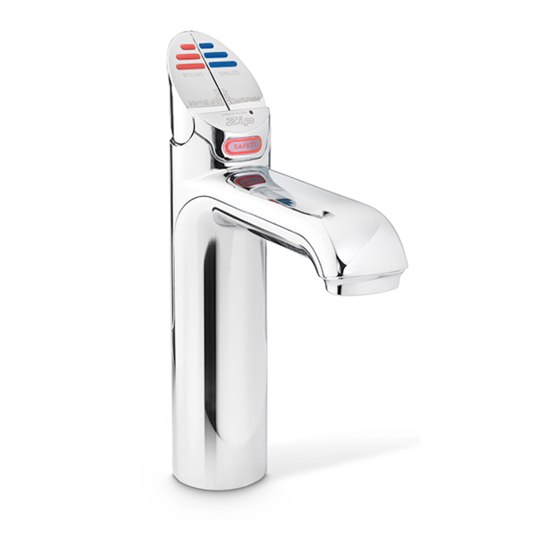

Zip HYDROTAP G4 series User Manual

Pure tasting, boiling, chilled, sparkling water. instantly
Hide thumbs Also See for HYDROTAP G4 series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction and Installation Manual
USER MANUAL
ZIP HYDROTAP
®
G4
Pure tasting, boiling, chilled, sparkling water. Instantly.
MODEL NUMBER:
All G4 systems

Advertisement

Table of Contents
loading

Related Manuals for Zip HYDROTAP G4 series

Summary of Contents for Zip HYDROTAP G4 series

  • Page 1 USER MANUAL ZIP HYDROTAP ® Pure tasting, boiling, chilled, sparkling water. Instantly. MODEL NUMBER: All G4 systems...

  • Page 2: Table Of Contents

    Celsius HydroTap Section 7 Mixer taps Section 8 LCD screen Section 9 Filter maintenance Section 10 The CO cylinder Section 11 Home menu icons Section 11 Cleaning Section 12 Contact details USER MANUAL 805846UK - ZIP HYDROTAP G4 V1.00 NOV 2017...

  • Page 3: Section 1 Hydrotap Control Styles

    SECTION 1 HYDROTAP CONTROL STYLES Elite Touch controls See page 4 Classic Press - pull controls See page 7 All in One Celsius Arc Arc & Cube Turn controls See page 10 Celsius Rotate controls See page 13 TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK WWW.ZIPWATER.CO.UK...

  • Page 4: Section 2 Hydrotap Functionality

    Water at set temp FLASHING SLOWLY Water above set temp (wait) FLASHING QUICKLY System fault (see page 17) FILTER Filter within life span FLASHING SLOWLY Change filter (see page 19 & 28) USER MANUAL 805846UK - ZIP HYDROTAP G4 V1.00 NOV 2017...
  • Page 5 SECTION 3 ELITE HYDROTAP 3. 3 ELITE HYDROTAP - OPERATION Touch for finger controlled dispense. (Safety lock off). BCS models, touch to dispense Boiling water Chilled water Sparkling water (both) BC models, touch to dispense Boiling water Chilled water BA models, touch to dispense Boiling water Ambient water B models, touch to dispense...
  • Page 6 Chilled water Sparkling water 3. 4 ELITE HYDROTAP - SAFETY OPERATION BCS, BC, BA, B models, touch to dispense Boiling water Either Activate / deactivate the safety lock see page 27 USER MANUAL 805846UK - ZIP HYDROTAP G4 V1.00 NOV 2017...

  • Page 7: Section 4 Classic Hydrotap

    SECTION 4 CLASSIC HYDROTAP 4. 1 CLASSIC HYDROTAP - CONTROLS Press - pull controls Timed dispense Manual dispense (manual return) (auto return) 4. 2 CLASSIC HYDROTAP - LIGHTS Boiling temp. All models Chilled / sparkling temp. Filter BOILING TEMP Water at set temp FLASHING SLOWLY Water below set temp (wait) FLASHING QUICKLY...
  • Page 8 BC models, press to dispense Boiling water Chilled water BA models, press to dispense Boiling water Ambient water B models, press to dispense Boiling water (either) C models, press to dispense Chilled water (either) USER MANUAL 805846UK - ZIP HYDROTAP G4 V1.00 NOV 2017...
  • Page 9 SECTION CLASSIC HYDROTAP 4. 3 CLASSIC HYDROTAP - OPERATION CS models, press to dispense Chilled water Sparkling water 4. 4 CLASSIC HYDROTAP - SAFETY LOCK BCS, BC, BA, B models, touch to dispense Boiling water Either Activate / deactivate the safety lock see page 27 4.

  • Page 10: Arc & Cube Hydrotap (Inc Aio Celsius Arc)

    Water above set temp (wait) FLASHING QUICKLY. System fault (see page 27) FILTER SELECT ON Filter within life span FLASHING SLOWLY. Change filter (see pages 19 & 28) SAFETY LOCK ON USER MANUAL 805846UK - ZIP HYDROTAP G4 V1.00 NOV 2017...
  • Page 11 SECTION 5 ARC & CUBE HYDROTAP 5. 3 ARC & CUBE HYDROTAP - OPERATION Touch to select, then turn to dispense (Safety lock off). BCS models, select then turn to dispense Boiling water SELECT Chilled water SELECT Sparkling water SELECT BC models, select then turn to dispense Boiling water SELECT...
  • Page 12 Boiling water mode with safety lock on SELECT Touch x 2 Flash for 2 secs SELECT 4. Turn control while lights flash to dispense boiling water. Activate / deactivate the safety lock see page 27 USER MANUAL 805846UK - ZIP HYDROTAP G4 V1.00 NOV 2017...

  • Page 13: Section 6 Celsius Hydrotap

    SECTION 6 CELSIUS HYDROTAP 6.1 CELSIUS HYDROTAP - CONTROLS Warning Displays system Rotate either status way to dispense (auto return) The Indicator light acts as a safety lock (when enabled) Touch twice when safety lock activated to dispense boiling indicator water while red lights flash 6.2 CELSIUS HYDROTAP - LIGHTS All models...

  • Page 14: Mixer Taps

    SECTION 7 MIXER TAPS- CLASSIC, ARC & CUBE 7.1 MIXER TAP - OPERATION All Zip mixers function in the following manner : The hot water is marked with a red dot and the cold water with a blue dot. Moving the lever away from the tap will increase the flow and towards the tap will decrease the flow.

  • Page 15: Section 8 Lcd Screen

    SECTION 8 LCD SCREEN Zip HydroTap G4 features a ‘TOUCH’ screen for easy setup and operation adjustment. NOTE : The screens displayed in this section are examples, button positions and availability of functions will change dependant upon model purchased. All functional options are shown in this manual.
  • Page 16 • Filter life (Litres) Filter life (Months) • Energy modes • Sleep mode options Settings On/Off modes • Safety • Safety lock Hot isolation • Hot/Cold dispensing • Dispense times USER MANUAL 805846UK - ZIP HYDROTAP G4 V1.00 NOV 2017...
  • Page 17 In this section, you can find your product serial number, check system fault messages or view the filter logs of your product. • Press the [MENU] button for Zip BC Sparkling 15:11 Tue 26, July 2016 main menu. • Product Info...
  • Page 18 SECTION 8 LCD SCREEN 8.3 Install Once your Zip HydroTap G4 unit has been installed, Go to the install menu to configure the system settings for your product. Sub menu 8.3.1 Filter flush. 8.3.2 Filter reset. 8.3.3 Boiling calibration. 8.3.4 Booster.
  • Page 19 In general, boiling water units may vent steam from the tap spout. Take care to avoid personal injury whenever this occurs. The Zip HydroTap G4 is equipped with a self-calibrating program. On start up, the controls take the system through a calibration process. Once this mode is completed the system reverts back to normal operation.
  • Page 20 It is estimated that 1 in 15,000 installations could experience intermittent flickering lights, during the boiling water recovery period. Disabling may overcome the flickering lights, however, the product may experience increased steaming. USER MANUAL 805846UK - ZIP HYDROTAP G4 V1.00 NOV 2017...
  • Page 21 This can only be done by a Zip technician. Please contact your Zip service provider for further assistance.
  • Page 22 SECTION 8 LCD SCREEN 8.5 Security The Zip HydroTap G4 allows the appliance coordinator to set up a password to protect against users changing the preferred system settings. To set a password • Press the [MENU] button for main menu.
  • Page 23 Press [NEXT] button to set time. 8.7.2 Set temperature Zip HydroTap G4s are designed to operate within 1ºC to 2ºC of set point for boiling water and between 3ºC to 5ºC for chilled and sparkling drinking water. All boiling water units are self calibrating to 98ºC, which is the recommended setting.
  • Page 24 SECTION 8 LCD SCREEN 8.7.3 Filter Zip HydroTap G4 allows the user to adjust filter life and edit filter usage. Note The filter life may be set as a function of litres used, or in months from the filter change. When the first of these functions is reached (i.e.
  • Page 25 SECTION 8 LCD SCREEN 8.7.4 Energy modes This mode allows the HydroTap G4 to go into energy saving mode. There are two options available: sleep mode and on/off mode. In sleep mode the unit will go to “Sleep” after a 2hr period of inactivity. The boiling water will gradually drop to either 68°C or room temp, as shown in the table below and the chilled water will be ON or OFF.
  • Page 26 Any attempt, during off mode, to dispense water, will bring the unit out of energy mode. The system will revert to the energy mode setting after 30 minutes of non use. USER MANUAL 805846UK - ZIP HYDROTAP G4 V1.00 NOV 2017...
  • Page 27 SECTION 8 LCD SCREEN 8.7.5 Safety To allow the safety setting to be changed using the touch screen • Press the [MENU] button for main menu. • Press the [Settings] button. • Enter your 4-digit password and press [Enter]. • Press the [Safety] button.

  • Page 28: Section 9 Filter Maintenance

    Relieve system pressure via the filter flush stop cock, a quick open and close will do. Use the bucket to catch the discharge. • Grasp filter cartridge, rotate the cartridge a quarter turn clockwise, then gently pull down. USER MANUAL 805846UK - ZIP HYDROTAP G4 V1.00 NOV 2017...
  • Page 29 SECTION 9 FILTER MAINTENANCE • Caution Water will drip as the cartridge is removed. • Do not tilt the cartridge as water may spill from it if tilted. • Unpack replacement cartridge and remove sanitary cap, write today’s date where shown on the label. •...

  • Page 30: Section 10 The Co Cylinder

    Turn the gas on. • Inspect the joint for leaks. • If any bubbles appear, the joint will need to be resealed and tested again. Test for leaks at these two points USER MANUAL 805846UK - ZIP HYDROTAP G4 V1.00 NOV 2017...

  • Page 31: Section 11 Home Menu Icons

    SECTION 11 HOME MENU ICONS Safety switch is enabled. The HydroTap G4 will not dispense any Boiling water. See tap sections for safety lock operation. Safety switch is disabled. Boiling water may be dispensed. See tap sections for safety lock operation.

  • Page 32: Contact Details

    Zip Water UK 14 Bertie Ward Way, Dereham, Norfolk NR19 1TE 0345 6 005 005 sales@zipindustries.co.uk www.zipwater.co.uk...
