Zip HydroTap G4 User Manual

Cs residential
Hide thumbs Also See for HydroTap G4:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction and Installation Manual

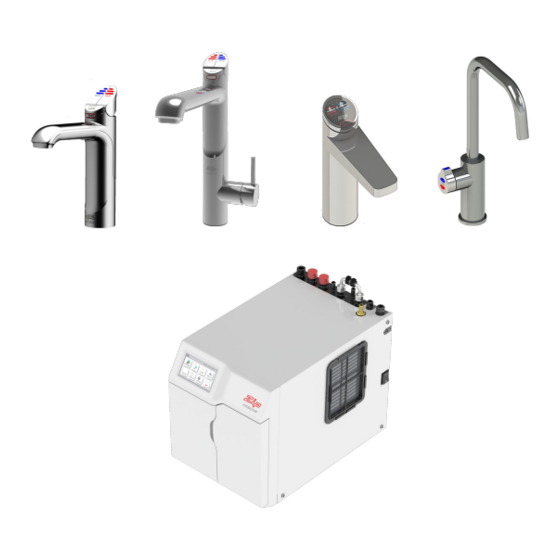

ZIP HydroTap G4

User Manual

Tap Functions..................(Pages 2-4)
•
Tap Operation..................(Pages 5-10)
•
LCD Screen & Menu .......(Pages 11-22)
•
Maintenance.................... (Pages 23-26)
•
Contact details.................(Page 28)
•
Date of Installation............./........../...........
CS Residential
Affix Model Number Label
For safe keeping store this book
in the inside door pocket
802269 - Residential CS & CSHA User Manual - 09.2016 v3.01
Here
802269
®
Page 1 of 28

Advertisement

Table of Contents
loading

Related Manuals for Zip HydroTap G4

Summary of Contents for Zip HydroTap G4

  • Page 1: User Manual

    ZIP HydroTap G4 ® User Manual Tap Functions....(Pages 2-4) • Tap Operation....(Pages 5-10) • LCD Screen & Menu ..(Pages 11-22) • Maintenance....(Pages 23-26) • Contact details....(Page 28) • Date of Installation...../../... CS Residential Affix Model Number Label Here 802269...

  • Page 2: Tap Functions

    Tap functions HydroTap Classic: Chilled Lever Sparkling The HydroTap Classic uses lever Lever controls, to dispense Chilled and Chilled Sparkling water. There are Blue indicator lights, built Filter light into the levers, to show the status of the chilled water. There is a filter warning light to indicate when a filter change is due NOTE: The safety button on all...
  • Page 3 Tap functions HydroTap Arc/Cube: On powerup, wait 30 secs. for the unit to calibrate. Tapping the select button will allow the selection of either the Chilled (BLUE) or Sparkling (White) water mode. The Arc/Cube control may be rotated in a forward or reverse direction to dispense Sparkling or Chilled water.
  • Page 4 Tap functions Celsius Arc/Cube: On powerup, wait 30 secs. for the unit to calibrate. The Celsius rotary control may be rotated clockwise to dispense Sparkling water or anti-clockwise for Chilled water. The rotary control is spring loaded and when released, will return to the OFF position.

  • Page 5: Tap Operation

    Tap operation - Chilled To dispense chilled water: (Classic Tap) Press or Pull the Chilled lever To dispense Chilled water: Depressing the “Chilled” lever allows the dispensing of Chilled water. Pulling forward the lever allows the tap to operate in a “no-touch” mode. Water will flow from between 5 and 15 seconds (This is user adjustable).
  • Page 6 Tap operation - Chilled Indicator light HydroTap Arc/Cube: If not showing BLUE, tap the select button until the indicator light turns BLUE. Rotating the control, when the indicator light is BLUE, allows the dispensing of chilled water. Select button Arc/Cube Tap Celsius Tap: Rotate for Chilled water...
  • Page 7 Tap operation - Sparkling To dispense Sparkling water: (Classic tap) Press or Pull the Sparkling lever To dispense Sparkling water: Depressing the ‘Sparkling’ lever allows the dispensing of Sparkling water. Pulling forward the lever allows the tap to operate in a in a “no-touch”...
  • Page 8 Tap operation - Sparkling Indicator HydroTap light Arc/Cube: If showing BLUE, tap the select button until the indicator light turns WHITE. Rotating the control , when the indicator light is WHITE, will allow the dispensing of sparkling water. When unattended, the Select control light will automatically button...

  • Page 9: Tap Lights

    Tap operation - Mixer The Mixer tap lever is operated as a conventional ‘Flick Mixer’. The hot side is marked with a red stripe and the cold side with a blue stripe, for dispensing cold to warm water. Lifting the handle up will decrease the flow rate and lowering the handle will increase the flow rate.

  • Page 10: All Models

    Tap lights Filter light: Filter light (Classic, Elite & AIO taps) Filter Change Light Off: This indicates the filter is operating within its normal specified lifespan. Filter Change light flashing slowly: The light will flash slowly when the filter is due for replacement and the LCD will show “Filter Change”.

  • Page 11: Lcd Screen

    LCD Screen Zip HydroTap G4 introduces a ‘TOUCH’ screen for easy setup and operation adjustment. Date and Time Sleep mode icon **Status window Set chilled water temperature Filter usage Other possible messages in status window: Status** Information Notes System Fault...

  • Page 12: Lcd Screen Menu

    LCD Screen Menu Main Menu Sub Menu Sub Menu Options Section Language • English • Product Info • Product serial • System Faults • Lists Information • Event Log • Energy usage • Reset options • Filter Flush • Calibration •...

  • Page 13: System Information

    LCD Screen operation - Section A Set Language Press [MENU] for main menu. Press [Language] button. Select an option to change the language Press [<=] button for the previous menu LCD Screen operation - Section B System Information In this section, you can find product information, system faults and filter log messages.
  • Page 14 Position CLOSED Position The Zip HydroTap allows the user to adjust the filter life and to edit the filter usage. (See filter details on Page 20 ). Page 14 of 28 802269 - Residential CS & CSHA User Manual - 09.2016 - v3.01...
  • Page 15 LCD Screen operation - Section C Press the [MENU] button for main menu. Press the [Install] button. Turn the stop cock ON. Press the [Filter Flush] button. Press [Start] [Stop] buttons to start and Stop the filter flush. Once the filter flush is finished, Turn the stop cock OFF first (to ensure the cock is properly closed) then press [Stop]...
  • Page 16 LCD Screen operation - Section C 3 - Purge CO When fitting a new gas bottle, it is important to purge the gas lines. Press the [MENU] button for main menu. Press the [Install] button. Press the [Purge CO ] button. In the next screen, press the [START] button to commence the purging process.
  • Page 17 1800-638-633, for assistance, service, spare parts, or enquiries. LCD Screen operation - Section E Security The Zip HydroTap G4 allows the appliance coordinator to set up a password to protect against users changing the preferred system settings. To set a password Press the [MENU] button for main menu.
  • Page 18 LCD Screen operation - Section F F Communication - WiFi (Select models) This section allows the user to use WiFi to monitor the product remotely. From the Home screen Press [Menu]. Then [Comm’s] Enter your 4 digit password to access the WiFi set up. Follow the set up instructions supplied with the WiFi unit To disable the WiFi setup...
  • Page 19 4. Choose 12 hour mode or 24 hour mode by pressing the square button. The selected mode will be displayed in dark grey colour with a HydroTap G4 Set Date/Time tick box on the right. Screen 5. Press [NEXT] button to set the date and time using the up and down scroll keys.
  • Page 20 LCD Screen operation - Section G ions Filter Zip HydroTap G4 allows the user to adjust filter life and edit filter usage. Note: The filter life may be set as a function of Litres used, or in months from the filter change. When the first of these functions is reached (i.e.
  • Page 21 LCD Screen operation - Section G Energy Modes This mode allows the HydroTap to enter into an Energy Saving mode. There are two options available: ‘Sleep’ mode and ‘ON/OFF’ mode. In SLEEP MODE the unit will go to “Sleep” after a 2hr period of inactivity. The Chilled water will be ON or OFF.
  • Page 22 LCD Screen operation - Section G In ON / OFF Mode the user may turn the unit ON or OFF at specific times for individual days or alternatively by weekly and/or weekend settings. To activate ON/OFF mode: Press the [MENU] button for main menu.

  • Page 23: Filter Maintenance

    Filter Maintenance Water Filter The Zip HydroTap notifies when a filter replacement is due. If you notice one of the following, you will need to change the filter: • The Change Filter light will flash white once a second and remains so until reset.
  • Page 24 Air Inlet Filter The Zip HydroTap air filter is conveniently located on the outside of the condenser. The filter screen is a sliding fit in the plastic housing on the side of the under sink unit. The screen may be removed for cleaning, by sliding it forward.
  • Page 25 Gas bottle change Turn the CO bottle regulator OFF (Anti-clockwise). The knob will screw up and away from the bottle. Remove the bottle from the cupboard and disconnect the regulator. If the braided hose is removed from the regulator, be careful not to loose the small plastic sealing olive, located inside the end of the hose.
  • Page 26 Cleaning General cleaning Do not use strong, corrosive, spray or abrasive cleaners. Clean with a soft damp cloth and mild soap. Under sink units must never be located near, or cleaned with water jets. Avoid using airborne pesticides near the undersink unit. Page 26 of 28 802269 - Residential CS &...

  • Page 27: Home Menu Icons

    Home Menu Icons Sleep mode is active. There are 3 sleep mode options which display this icon on the home screen. See page 17 for details. Filter use. This icon displays the filter usage remaining from 100% (New filter) to 0% (end of life). When it reaches 0% the filter warning light on the tap head will flash slowly.

  • Page 28: Contact Details

    Telephone: (02) 9796 3100 Free Call: 1 800 638 633 As Zip policy is one of continuous product improvement, changes to specifications may be made without prior notice. Images in this booklet have been modified and may not be true representations of the finished goods.
