Device overview

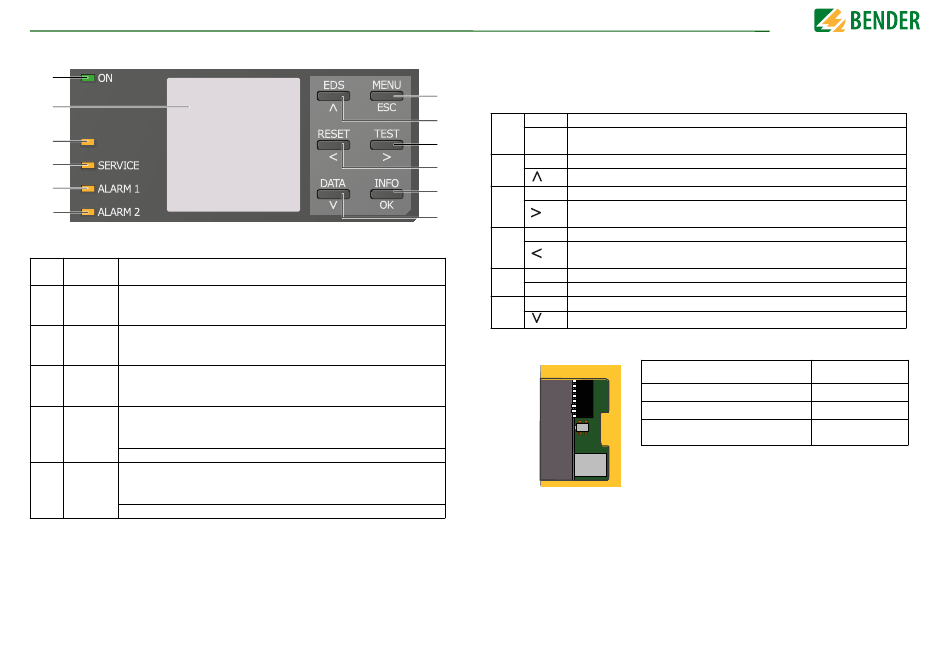

4.3 Display and operating elements

1
2
PGH ON
3
4
5
6
4.3.1 Display elements
ON
1 The operation indicator lights continuously.
(green)
The device display shows information regarding the device and the
2 measurements.
Further information
The LED "PGH ON" flashes during insulation fault location. It indicates that
PGH ON
3 the locating current for the insulation fault location is generated.
(yellow)
The LED "PGH ON" is only activated at iso1685DP.
When a device error is detected, the SERVICE LED lights.
SERVICE
If the LED stays lit, please check the error code list.(
4
(yellow)
cation via the BMS bus" on page 42
Insulation fault 1 (prewarning):
The "ALARM 1" LED lights continuously when the insulation resistance
ALARM 1
5
falls below the response value 1, R
(yellow)
Flashes: Connection fault, check earth and system (L1/+, L2/–)
Insulation fault 2 (alarm):
The "ALARM 2" LED lights continuously when the insulation resistance
ALARM 2
6
falls below the response value 2, R
(yellow)
Flashes: Connection fault, check earth and system (L1/+, L2/–)
15
see "Display" on page 26.
see "Device communi-
)
< R
F an1
< R
F an2
Device overview
4.3.2 Device buttons
You can adjust the device settings in the respective menu using the menu buttons. De-
pending on the menu entry, one of the options displayed below is assigned to the but-
7
tons.
MENU Opens the device menu.
8
7
Cancels the current process or
ESC
9
navigates one step back in the device menu.
EDS Opens the EDS menu (only iso1685DP).
10
8
Navigates up in a list or increases a value.
11 TEST Starts the device self test.
9 Navigates forwards (e.g. to the next setting step) or
12
selects a parameter.
RESET Resets alarms.
10
Navigates backwards (e.g. to the previous setting step) or
selects a parameter.
INFO Shows information.
11
OK Confirms an action or a selection.
DATA Indicates data and values.
12
Navigates down in a list or reduces a value.
4.3.3 Operating elements in the service lid
Operating elements Function
DIP switch (SS8103) No function
Button (ST6101) Alarm reset
Memory card (SD Card) No function
isoxx1685Dx-x25_D00272_05_M_XXEN/04.2018
