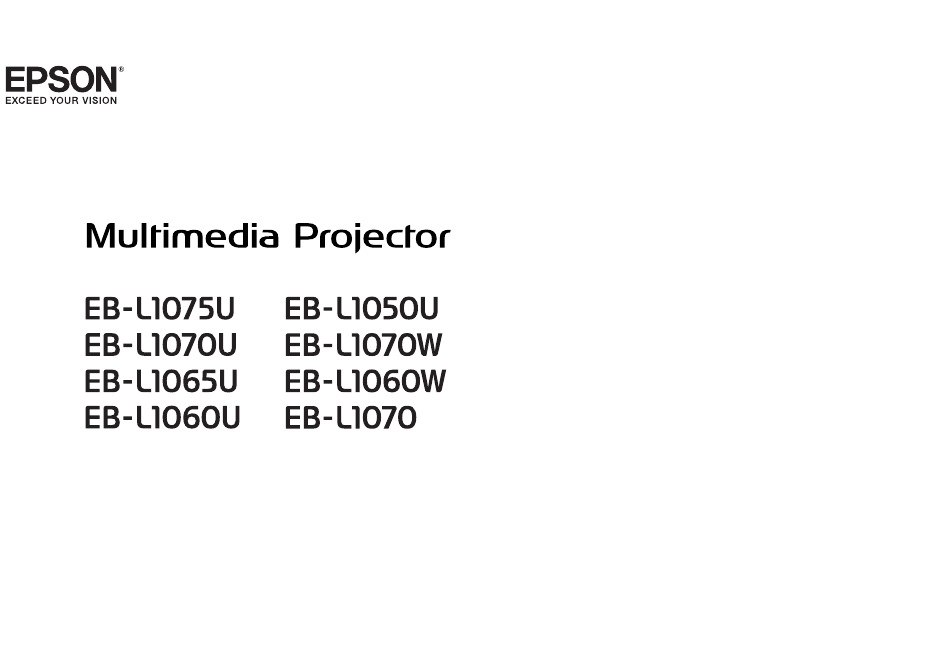

  • Page 1 User's Guide...

  • Page 2: Notations Used In This Guide

    Notations Used in This Guide • Safety indications The documentation and the projector use graphical symbols to show how to use the projector safely. The indications and their meaning are as follows. Make sure you understand them properly before reading the guide. Warning This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.
  • Page 3 Epson Projector Contact List • Failure to install the ceiling mount and projector may cause the projector to fall. After installing the specific Epson mount that supports your projector, make sure you secure the projector and the mount using wire that is strong enough to hold their weight.
  • Page 4 Safety Warning and Cautions Warning Attention • Do not install the projector in a location that is subject to vibration or • Be careful when handling the power cord. Otherwise, it could cause a fire or shock. electric shock. Note the following when handling the power cord. •...
  • Page 5 Safety Warning and Cautions Attention Attention • Make sure you secure the following space around the projector so as not to • Do not stack projectors directly on top of each other. block the air exhaust vent and the air intake vent. •...
  • Page 6 • If an error occurs, disconnect the power cord from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List. If you continue using the projector as it is, it could cause an electric shock, fire, or even damage to eyesight.
  • Page 7 Safety Warning and Cautions • About the LCD panel Warning and Cautions on the Laser - The LCD panel may contain pixels that are missing or appear bright all the time. This is not a sign of an error. Warning - When a high-powered laser beams through the surface of the projection lens even when it is not being used, it can cause a malfunction in the •...
  • Page 8 Safety Warning and Cautions Notes on Transporting Caution • This projector is a Class 1 laser product that complies with the IEC/ There are many glass parts and precision components inside the projector. EN60825-1: 2014 international standard for lasers. To prevent damage due to impacts when transporting, handle the projector •...

  • Page 9: Table Of Contents

    Contents ID Settings ..........42 Notations Used in This Guide .
  • Page 10 Restrictions on Content Playback Mode ......108 4K Enhancement (EB-L1075U/EB-L1070U/EB-L1065U/EB-L1060U/EB-L1050U only) ........... . 83 Memory Function .
  • Page 11 Contents Others menu ..........159 Using the Projector on a Network Reset menu .
  • Page 12 Epson Projector Management ........215...
  • Page 13 Polarizer (ELPPL01) Installation Distance ......259 EB-L1075U/EB-L1070U/EB-L1065U/EB-L1060U/EB-L1050U ....259 EB-L1070W/EB-L1060W .

  • Page 14: Introduction

    Introduction This chapter explains the names for each part.

  • Page 15: Part Names And Functions

    Part Names and Functions The illustrations in this guide show the lens unit attached to the projector. Name Function Projection lens Images are projected through here. Front/Top Warning Do not look into the lens while projecting. This could cause damage to eyesight due to the power‐ ful light emitted.

  • Page 16: Rear

    Part Names and Functions Name Function Rear Lens replacement Remove when attaching or removing the lens. cover s "Removing and Attaching the Projector Lens Unit" p.27 Caution When moving the projector, do not hold the lens replacement cover. The lens replacement cover may be removed and the projector may fall, which could cause an injury.

  • Page 17: Connector Ports

    Part Names and Functions Name Function Connector Ports Cable holder Run a commercially available cable tie to secure cables. When controlling the projector from a computer, connect RS-232C port it to the computer with an RS-232C cable. This port is for control use and should not normally be used.

  • Page 18: Base

    Part Names and Functions Name Function Base Screw holes to fix the Screw holes to fix the cable cover in place. cable cover s "Attaching the Cable Cover" p.55 Screws to fix the air filter cover in place. Air filter cover fixing screw Ceiling mount fixing Attach the optional ceiling mount here when suspending...
  • Page 19 Part Names and Functions Name Function Name Function • When the Configuration menu or the Help screen is • Displays the Info menu from the Configuration menu. ] button [ ]/[ ] buttons displayed, it accepts and enters the current selection and s "Info Menu (Display Only)"...

  • Page 20: Remote Control

    Part Names and Functions Name Function Remote Control Turns the projector on. ] button [t] button Turns the projector off. Change input buttons Changes to images from each input port. s "Switching to the Target Image by Remote Control" p.62 The [SDI] button is unavailable.
  • Page 21 Part Names and Functions Name Function Name Function • Press to adjust focus, zoom, distortion, and lens shift. • Enter the Password. Numeric buttons ][ ][ ] s "Adjusting the Position of the Projected Image s "Setting Password Protection" p.115 buttons •...

  • Page 22: Handy Remote Control Operations

    Part Names and Functions Handy remote control operations Name Function [Default] button Enabled when [Default]: Reset is displayed on the You can perform the following operations by simply pressing one of the configuration menu guide. The settings being adjusted are buttons on the remote control.

  • Page 23: Replacing The Remote Control Batteries

    Part Names and Functions Remove the battery cover. Operation While pushing the battery compartment cover catch, lift the cover Displaying frequently used Configuration Press the [User1], [User2], or [User3] menu items. button. You can set the menu item you want to assign to each button in User Button.

  • Page 24: Remote Control Operating Range

    Part Names and Functions Replace the battery cover. Remote control operating range Press the battery compartment cover until it clicks into place. To restrict reception of the operation signals from the remote control, set Remote Receiver. s Settings - Remote Receiver p.143 Connecting a cable to the remote control You can make operations securely with the optional remote control cable...
  • Page 25 Part Names and Functions "Optional Accessories" p.233 • When the remote control cable is plugged into the Remote port, the remote receiver on the projector is disabled. • You can also connect the optional HDBaseT transmitter and remote control with the cable to control the projector. s "Connecting an HDBaseT Transmitter"...

  • Page 26: Preparing The Projector

    Preparing the Projector This chapter explains how to install the projector and connect projection sources.

  • Page 27: Installing The Projector

    Installing the Projector • The projector supports lens with the following model numbers. Removing and Attaching the Projector Lens Unit ELPLX01, ELPLX01W, ELPLU03, ELPLU04, ELPLW05, ELPLW06, ELPLW08, ELPLM08, ELPLM09, ELPLM10, ELPLM11, ELPLM15, Warning ELPLL08, ELPLS04, ELPLU02, ELPLR04, ELPLW04, ELPLM06, ELPLM07, ELPLL07 Make sure you disconnect the power cord from the projector before removing When using the following lens, set the Lens Type in the or attaching the lens unit to the projector.
  • Page 28 Installing the Projector When using the following lens, attach the supplied lens connector cap to protect the port. ELPLS04, ELPLU02, ELPLR04, ELPLW04, ELPLM06, ELPLM07, ELPLL07 Pinch the lever, and then move it counter-clockwise. Insert the lens unit straight into the lens insertion section with the white circle on the lens on top.

  • Page 29: Lens Calibration

    Installing the Projector When projecting down, we recommend securing the front cover with commercially available screws (M3 x 8 mm). Secure the lever with the lever lock to make sure it does not come loose. Lens Calibration After replacing the lens unit, calibrate the lens so that the projector can correctly acquire the lens position and adjustment range.

  • Page 30: Removing

    "Adjusting the Position of the Projected Image (Lens Shift Adjustment)" local dealer or the nearest address provided in the Epson Projector Contact p.34 List.

  • Page 31: Installation Settings

    Installing the Projector Installation Settings Changing the direction of the image (projection mode) You can change the direction of the image using Projection mode from the Configuration menu. Extended - Projection p.146 When Front is the standard, the image directions for each projection mode are as follows.

  • Page 32: Screen Settings

    The area where the image is displayed matches the shape of the screen. s "Changing the Aspect Ratio of the Projected Image" p.80 • The Message Broadcasting function for Epson Projector Management does not support this function. The settings for the Screen Type at the time of purchase are as follows: •...

  • Page 33: Displaying The Test Pattern

    Installing the Projector You can move the image to the left and right. Displaying the Test Pattern Press the [Menu] button while projecting. A test pattern can be displayed to adjust the projection status without connecting video equipment. "Configuration Menu Operations" p.136 The shape of a test pattern is according to the setting of Screen Type.

  • Page 34: Adjusting The Position Of The Projected Image (Lens Shift Adjustment)

    The ranges within which the image can be moved are shown below. The position of the projected image cannot be moved to both the horizontal and Checkerboard Checkerboard vertical maximum values. Gray Bars V Gray Bars H EB-L1075U/EB-L1070U/EB-L1065U/EB-L1060U/EB-L1050U/EB-L1070W/ EB-L1060W 16:10 Aspect 16:9 Aspect White Black Frame...
  • Page 35 Installing the Projector When using ultra-short focus lens ELPLX01/ELPLX01W EB-L1070 EB-L1075U/EB-L1070U/EB-L1065U/EB-L1060U/EB-L1050U/EB-L1070W/ EB-L1060W Center of lens Center of lens Projected image for positional reference Projected image when the lens position is moved to the home Maximum motion range: V x 17%...
  • Page 36 Installing the Projector EB-L1070 • When adjusting the image height with the vertical lens shift, adjust by moving the image from the bottom to the top. If it is adjusted from the top to the bottom, the image position may move down slightly after adjusting.

  • Page 37: Adjusting The Image Size

    Installing the Projector Press the [Zoom] button on the remote control or the [Lens] Press the [ ][ ][ ] buttons to adjust the position of the button on the control panel. projected image. Repeatedly press the [Lens] button on the control panel until the Using the remote control Using the control panel zoom adjustment screen is displayed.

  • Page 38: Correcting The Focus

    Installing the Projector Correcting the Focus When using the following lens, a message prompting you to adjust the distortion (image warping) is displayed. After adjusting the focus, adjust the distortion. Press the [Focus] button on the remote control or the [Lens] ELPLX01, ELPLX01W, ELPLU03, ELPLU04, ELPLW05, button on the control panel.

  • Page 39: Registering And Loading Lens Adjustment Values

    Installing the Projector Press the [Focus] button on the remote control or the [Lens] Registering and Loading Lens Adjustment Values button on the control panel again. Repeatedly press the [Lens] button on the control panel until the You can register a lens position whose lens shift, zoom, focus, and distortion adjustment screen is displayed.
  • Page 40 Installing the Projector Select the function you want to perform, then press the [ Function Explanation button. Loads the saved memory. When you select a Load Memory memory name and press the [ ] button, the lens is automatically adjusted according to the settings of the selected memory.

  • Page 41: Adjusting The Height Of The Projected Image (For Normal Installment)

    Installing the Projector Function Explanation Adjusting the Height of the Projected Image (for Reset Memory Resets the name and settings of a saved memory. Normal Installment) Extend or retract the front feet to make adjustments. You can adjust the If the mark on the left of the memory name is turned blue, it position of the image by tilting the projector up to 10 degrees.

  • Page 42: Adjusting The Horizontal Tilt (For Normal Installment)

    • IDs are ignored when the projector ID is set to Off or the remote control ID is set to 0. • If you use Epson Web Control, you can operate a specific projector from a mobile device. s "Changing Settings Using a Web Browser (Epson Web Control)"...

  • Page 43: Checking The Projector Id

    Installing the Projector Setting the remote control ID Set the remote control [ID] switch to On. Select Set, and then press the [ ] button. Press the [Menu] button to close the Configuration menu. Checking the projector ID While holding the [ID] button, press a number button to select a During projection, press the [ ] button while holding down the [ID] number to match the ID of the projector you want to operate.

  • Page 44: Setting The Time

    Installing the Projector Date & Time Setting the Time Submenu Function You can set the time for the projector. The set time is used for the schedule Date Set today's date. function. Set the current time. Time "Scheduling Function" p.112 Set the time difference from Coordinated Time Difference (UTC) Universal Time.

  • Page 45: Other Settings

    Installing the Projector Press the [Menu] button to finish making settings. Other Settings Settings related to basic operations Purpose Setting Methods To start/stop projection by turning Set Direct Power On to On. (Default value: Off) on/off the main power or plugging s Extended - Operation - Direct Power in or unplugging the power plug of p.146...

  • Page 46: Settings Related To Display

    You can confirm warning by the display of the indicator. s "Reading the Indicators" p.175 Dialogs related to operations and behaviors, laser warnings, termination of Message Broadcasting for Epson Projector Management, and projector ID are displayed.

  • Page 47: Connecting Equipment

    Connecting Equipment The port name, location, and connector orientation differ depending on the source being connected. Connecting a Computer To project images from a computer, connect the computer using one of the following methods. When using a commercially available computer cable Connect the computer's display output port to the projector's Computer port.
  • Page 48 Connecting Equipment • Change the audio output from Audio Settings. s Extended - A/V Settings - Audio Settings p.146 • If audio is not sent using an HDMI cable, connect a commercially available audio cable to the Audio3 port to send the audio. Set HDMI Audio Output to Audio3.

  • Page 49: Connecting Image Sources

    Connecting Equipment Connecting Image Sources To project video images, connect to the projector using one of the following methods. When using a commercially available component video cable (D-sub/component converter) Connect the component output port on the image source to the projector's Computer port. You can output audio from the Audio Out port on the projector by connecting the audio output port on the video equipment to the projector's Audio1 port using a commercially available audio cable.
  • Page 50 Connecting Equipment Attention • If the input source is on when you connect it to the projector, it could cause a malfunction. • If the orientation or shape of the plug differs, do not try to force it in. The device could be damaged or could malfunction. •...

  • Page 51: Connecting External Equipment

    Connecting Equipment Connecting External Equipment You can output images and audio by connecting an external monitor or speaker. When outputting images to an external monitor Connect the external monitor to the projector's Monitor Out port using the cable supplied with the external monitor. When outputting audio to an external speaker Connect the external speaker to the projector's Audio Out port using a commercially available audio cable.

  • Page 52: Connecting A Lan Cable

    Connecting Equipment Connecting a LAN Cable Connect a LAN port on network hubs or other equipment to the projector's LAN port with a commercially available 100BASE-TX or 10BASE-T LAN cable. By connecting a computer to the projector over a network, you can project images and check the status of the projector. To prevent malfunctions, use a category 5 or higher shielded LAN cable.

  • Page 53: Connecting An Hdbaset Transmitter

    Connecting Equipment Connecting an HDBaseT Transmitter Connect the optional HDBaseT Transmitter with a commercially available 100BASE-TX LAN cable. "Optional Accessories" p.233 HDBaseT • Make sure you read the User's Guide supplied with the HDBaseT Transmitter carefully before use. • For the LAN cable, use an HDBaseT Alliance-recommended STP cable (straight) of category 5e or higher. However, operation is not guaranteed for all input/output devices and environments.

  • Page 54: Installing The Wireless Lan Unit

    Connecting Equipment Installing the Wireless LAN Unit Loosen the fixing screws and open the air filter cover. (You can loosen the screws with your fingers.) Install the Wireless LAN unit. Use a plus-head screwdriver to loosen and remove the screw from the stopper for the Wireless LAN unit.

  • Page 55: Attaching The Cable Cover

    Connecting Equipment Warning Do not tie the power cord and other connection cables together. Otherwise, it could cause a fire. Attaching Run a commercially available cable tie through the cable holder and tie the cables together. Close the air filter cover and tighten the fixing screws. Attach the cable cover to the projector by routing the cables through the grooves in the cable cover.
  • Page 56 Connecting Equipment Tighten the two screws on the cable cover. (You can tighten the screws with your fingers.)

  • Page 57: Basic Usage

    Basic Usage This chapter explains how to project and adjust images.

  • Page 58: Turning On The Projector

    Turning On the Projector • Press the button for the input source that you want to project by using Before turning on the projector, connect your computer or video equipment to the projector. the remote control. • If the Home screen is displayed, select the input source that you want "Connecting Equipment"...

  • Page 59: Home Screen

    Turning On the Projector Displays the Connection Guide. You can check which wireless connection method to Home Screen use for your device. You can use the Home screen to easily select input sources or frequently Indicates that the projector is in Content Playback mode. used functions.

  • Page 60: Turning Off The Projector

    Turning Off the Projector • To ensure a long projector service life, turn off the projector when you are not using it. The light source's operating life varies depending on the Configuration menu settings, environmental conditions, and usage conditions. The brightness of the projected image drops as projection time elapses.

  • Page 61: Projecting Images

    Projecting Images • You can set up the projector so that it automatically detects an Automatically Detecting Input Signals and image signal from another input source and projects the image when Changing the Projected Image (Source Search) there is no image signal from the current input source. s Extended - Operation - Auto Source Search p.146 Press the [Search] button to project images from the port currently...

  • Page 62: Switching To The Target Image By Remote Control

    Projecting Images • Press the [ ] button. Switching to the Target Image by Remote Control Remote control • Press the button of the input source that you want to project. The input ports for the buttons are shown below. Remote control Select the input source to be projected, and then press the [ ] button.

  • Page 63: Adjusting The Volume

    Projecting Images Adjusting the Volume You can adjust the volume of the audio from the Audio Out port using one of the following methods. • Press the [Volume] buttons on the remote control to adjust the volume. ] increases the volume. ] decreases the volume.

  • Page 64: Adjusting The Projected Images

    Adjusting the Projected Images • Curved Surface Correcting Distortion in the Projected Image Correct distortion that occurs when projecting on a curved surface, and adjust the amount of expansion and contraction. You can correct keystone distortion in projected images using one of the "Curved Surface"...

  • Page 65: H/V-Keystone

    Adjusting the Projected Images • By pressing the [Geometry] button on the remote control or the ] button on the control panel, a screen for selecting the adjustment method is displayed. • When you want to re-adjust the projection position and so on, if you want to release the correction status temporarily, set the Geometry Correction to Off.

  • Page 66: Quick Corner

    Adjusting the Projected Images Correct the keystone distortion by using V-Keystone and H- You cannot combine with other correction methods. Keystone. V-Keystone Quick Corner This allows you to correct each of the four corners of the projected image independently. H-Keystone Press the [Menu] button while projecting.

  • Page 67: Curved Surface

    • If 4K Enhancement is enabled, a message is displayed. Select Yes to disable 4K Enhancement. (EB-L1075U/EB-L1070U/EB-L1065U/EB- L1060U/EB-L1050U only) s Image - Image Enhancement - 4K Enhancement p.140 Use the following to check the adjustment range for the image.
  • Page 68 Adjusting the Projected Images Select Correct Shape, and then press the [ ] button. "If this setting is changed, the image may be distorted." is displayed, press the [ ] button. Select Curved Surface, and then press the [ ] button.
  • Page 69 Adjusting the Projected Images Use the [ ], [ ], [ ], and [ ] buttons to select the area you Use the [ ], [ ], [ ], and [ ] buttons to adjust the shape. want to adjust, and then press the [ ] button.
  • Page 70 Adjusting the Projected Images Press the [Esc] button to display the screen from step 5. Select Adjust the linearity. Horizontal Linearity or Vertical Linearity, and then press the [ Correct it so that the distance between lines is equal. button. When pressing the [ ] button When Horizontal Linearity is selected When Vertical Linearity is selected Select Horizontal Linearity to adjust the horizontal expansion or...

  • Page 71: Corner Wall

    "If this setting is changed, the image may be distorted." is displayed, • If 4K Enhancement is enabled, a message is displayed. Select Yes to press the [ ] button again. disable 4K Enhancement. (EB-L1075U/EB-L1070U/EB-L1065U/EB- L1060U/EB-L1050U only) Select Corner Wall, and then press the [ ] button.
  • Page 72 Adjusting the Projected Images Adjust the position of the projector and the lens shift so that the According to the projection area, select Horizontal Corner or line in the center of the screen matches the corner (the point Vertical Corner, and then press the [ ] button.
  • Page 73 Adjusting the Projected Images When Vertical Corner is selected: Use the [ ], [ ], [ ], and [ ] buttons to select the area you Adjust the left and right based on the point nearest to the vertical want to adjust, and then press the [ ] button.

  • Page 74: Point Correction

    32 pixels. EB-L1070W/EB-L1060W/EB-L1070: Vertical and horizontal up to a maximum of 20 pixels. • If 4K Enhancement is enabled, a message is displayed. Select Yes to disable 4K Enhancement. (EB-L1075U/EB-L1070U/EB-L1065U/EB- L1060U/EB-L1050U only) s Image - Image Enhancement - 4K Enhancement p.140...
  • Page 75 Adjusting the Projected Images "If this setting is changed, the image may be distorted." is displayed, If you reduce the number of points during correction, press the [ ] button again. corrections at the position without a point are reset. Select Point Correction, and then press the [ ] button.

  • Page 76: Selecting The Projection Quality (Selecting Color Mode)

    Adjusting the Projected Images Use the [ ], [ ], [ ], and [ ] buttons to move to the point you You can fine tune the corrected results. Select Quick Corner on the want to correct, and then press the [ ] button.

  • Page 77: Setting The Brightness

    Adjusting the Projected Images Each time you press the [Color Mode] button, the Color Mode name is brightness at 85%. This makes the light source operation time displayed on the screen and the Color Mode changes. approximately 20,000 hours. Quiet: Select this if you are concerned about the noise made by the Remote control fan.

  • Page 78: Guide To Estimated Remains

    Adjusting the Projected Images Guide to Estimated Remains Relationship between Brightness Level and light source operation time When Constant Brightness is set to On, the Estimated Remains is displayed. Estimated Remains indicates the amount of time for which The following shows the relationship between Brightness Level and the light constant brightness can be maintained.

  • Page 79: Setting The Amount Of Light Of The Projected Image

    Adjusting the Projected Images Illustration Setting the Amount of Light of the Projected 41,000 hours Image 56,000 hours By automatically setting the luminance according to the brightness of the 78,000 hours displayed image, it lets you enjoy deep and rich images. You can also set the light source to turn off automatically.

  • Page 80: Changing The Aspect Ratio Of The Projected Image

    Adjusting the Projected Images Changing the Aspect Ratio of the Projected Image You can change the aspect ratio of the projected image to suit the type, the ratio of height and width, and the resolution of the input signals. Available aspect modes vary depending on the Screen Type currently set. •...

  • Page 81: Adjusting The Image

    Adjusting the Projected Images Select Advanced from Image, and then press the [ ] button. Aspect Mode Explanation Full Projects at the full size of the projected screen. Select RGBCMY, and then press the [ ] button. Projects by enlarging the input image to the full width of H-Zoom the projected screen while retaining the aspect ratio.

  • Page 82: Gamma Adjustment

    Adjusting the Projected Images When a smaller value is selected, you can reduce the overall Gamma adjustment brightness of the image to make the image sharper. You can adjust differences in the halftone brightness that occurs depending If you select DICOM SIM from Color Mode on the Image menu, on the connected device.

  • Page 83: Adjusting Image Resolution (Image Enhancement)

    Select Image Enhancement from Image, and then press the [ button. The following screen is displayed. 4K Enhancement (EB-L1075U/EB-L1070U/EB-L1065U/EB-L1060U/ EB-L1050U only) 4K Enhancement is a function that projects an image at a doubled resolution by diagonally shifting 1 pixel in increments of 0.5 pixels.

  • Page 84: Image Preset Mode

    Adjusting the Projected Images Select 4K Enhancement from Image Enhancement, and then Image Preset Mode press the [ ] button. Select the optimal setting according to the projected image from five presets prepared in advance. Select one of the following, and then press the [ ] button.

  • Page 85: Frame Interpolation

    Adjusting the Projected Images Select the level of interpolation from Low, Normal or High. • After selecting Preset 1 to Preset 5, you can fine tune each Set to Off if noise occurs after setting them. setting individually. The setting after adjustment will be overwritten.

  • Page 86: Noise Reduction

    Adjusting the Projected Images Noise Reduction MPEG Noise Reduction You can smooth out rough images for softer image quality when inputting You can reduce dot and block noise that occurs in outlines when projecting progressive signals or progressive interlace signals. MPEG movies.

  • Page 87: Super-Resolution

    Adjusting the Projected Images Super-resolution Detail Enhancement To display a crisp image, you can reduce the blurring that is created on the You can enhance the contrast in detailed areas of an image to create a more edge when the resolution of the image signal is scaled up and projected. emphatic texture and material feel.
  • Page 88 Adjusting the Projected Images • Silver screen for passive 3D This projector arranges the direction of polarizing projection for R (red), G (green), and B (blue). It is not necessary to inverse left and right eye G (green) image signals.

  • Page 89: Useful Functions

    Useful Functions This section describes the Multi-Projection, Split Screen, Memory, Schedule, and Security functions.

  • Page 90: Multi-Projection Function

    "Installation Settings" p.31 Adjust the arrangement of the images. • Set 4K Enhancement to Off. (EB-L1075U/EB-L1070U/EB-L1065U/ s "Tiling" p.90 EB-L1060U/EB-L1050U only) • We recommend setting the focus, zoom, and lens shift at least 20 minutes after you start the projection, because images are not stable right after turning on the projector.

  • Page 91: Edge Blending

    Multi-Projection Function Select Location Setup, and then press the [ ] button. Set the positions of the projected images in Row Order and Column Order. Row Order: Place screens from top to bottom in the order of 1, 2, 3. Column Order: Place screens from left to right in the order of A, B, C.
  • Page 92 Multi-Projection Function Submenu Function Top Edge/Bottom Blending: Set to On to activate Edge Blending Edge/Left Edge/Right towards your settings, and the blend range will be Edge shaded. Blend Start Position: Displays blending start position as a red line, and adjusts at the level of one pixel.

  • Page 93: Black Level

    Multi-Projection Function Set Pattern Guide to On. After the settings are complete, set Line Guide and Pattern Guide to Off to finish. Select Pattern Guide, and then press the [ ] button. Select On, and then press the [ ] button. Press the [Esc] button.
  • Page 94 Multi-Projection Function Select Black Level from Multi-Projection, and then press the [ Select the area you want to adjust, and then press the [ button. button. The selected area is displayed in orange. When multiple screens are overlapping, adjust based on the area with the most overlap (the brightest area).
  • Page 95 Multi-Projection Function After this, if the tone for some areas do not match, adjust them by Area Correction. Press the [Esc] button, to return to the screen displayed in step Select Area Correction, and then press the [ ] button. Boundary lines that indicate areas where images overlap are displayed.

  • Page 96: Color Matching

    Multi-Projection Function To complete the adjustment, press the [Menu] button. Color Matching You can fine tune the color balance and brightness from black to white for each color tone. Use the [ ][ ][ ] buttons to adjust the boundary line Select Color Matching from Multi-Projection, and then press the positions, and then press the [ ] button.

  • Page 97: Displaying A Scaled Image

    Multi-Projection Function Whenever the [ ] button is pressed, the screen changes between the projected image and the adjustment screen. Select Adjustment Level, and then use the [ ][ ] buttons to set the adjustment level. Select Red, Green, or Blue, and then press the [ ][ ] buttons to adjust the color tone.
  • Page 98 Multi-Projection Function Press the [Esc] button to return to the previous screen. If auto adjustment does not work for the clipped image, adjust the aspect ratio, and then select Auto. s "Changing the Aspect Ratio of the Projected Image" p.80 Adjust the scale.

  • Page 99: Projection Functions

    • If 4K Enhancement is enabled, a message is displayed. Select Yes to You cannot use the Split Screen feature in Content Playback mode. disable 4K Enhancement. (EB-L1075U/EB-L1070U/EB-L1065U/EB- L1060U/EB-L1050U only) s Image - Image Enhancement - 4K Enhancement p.140...

  • Page 100: Operating Procedures

    Projection Functions Operating procedures Select Source, and then press the [ ] button. Select each input source for Left and Right. Projecting on a split screen Press the [Split] button on the remote control while projecting. The currently selected input source is projected on the left of the screen.
  • Page 101 Projection Functions Switching the left and right screens The projected images will appear as shown below after setting the screen size. Use the following procedure to switch the projected images. Equal Larger Left Press the [Menu] button during split screen projection. Select Swap Screens, and then press the [ ] button.

  • Page 102: Restrictions During Split Screen Projection

    Projection Functions Restriction relating to images Select the audio you want to output, and then press the [ button. • For the image on the right screen, the default values for the Image When you select Auto, audio is output for the enlarged screen. If the menu are applied.

  • Page 103: Freezing The Image (Freeze)

    Projection Functions • When A/V Mute is enabled, the light source turns off. Freezing the Image (Freeze) • If you want to fade out or fade in when turning the video on or off, When Freeze is activated on moving images, the frozen image continues to set the desired number of seconds in Fade-out and Fade-in.

  • Page 104: Enlarging Part Of The Image (E-Zoom)

    Press the [ ] button to display the Cross ( • If 4K Enhancement is enabled, a message is displayed. Select Yes to disable 4K Enhancement. (EB-L1075U/EB-L1070U/EB- Remote control L1065U/EB-L1060U/EB-L1050U only) s Image - Image Enhancement - 4K Enhancement p.140...
  • Page 105 Projection Functions Project the image you want to save as the User's Logo, and then press the [Menu] button. "Configuration Menu Operations" p.136 Select User's Logo from Extended. When you select User's Logo, settings such as Geometry Correction, E-Zoom, Aspect, Scale, and Screen Type are temporarily disabled.

  • Page 106: Content Playback Feature

    Content Playback Feature Content Playback mode allows you to project images suitable for digital Select On, and then press the [ ] button. signage in locations such as museums, showrooms, and stores. You can A confirmation message is displayed. project playlists of photos and videos stored in an external memory. You can use the effects features to change the color and shape of the projected Restart the projector to enable Content Playback mode.

  • Page 107: Adding Effects To Images (Effect Feature)

    - Total length of USB flash drive is 6 cm or less s Settings - Content Playback - USB Viewer p.143 Create a playlist using Epson Projector Content Manager and save it to a USB flash device. Adding Effects to Images (Effect Feature) See the "Epson Projector Content Manager Operation Guide"...

  • Page 108: Restrictions On Content Playback Mode

    Custom. select [Settings], and then press the [ ] button. You can register your favorite images to Custom using Epson Projector Content Manager. See the "Epson Projector Content Manager Operation Guide" for details. • Filter Effect: Select whether to mask the inside or the outside of the selected shape.
  • Page 109 • Color Temp. (when Warm White or Cool White is selected as the Color Filter) • Blanking • Split Screen • Display Background • Screen • Auto Source Search • Remote Password • Edge Blending • Log Save Destination Also, you cannot use Epson Projector Professional Tool in Content Playback mode.

  • Page 110: Memory Function

    Memory Function The settings for the image currently displayed and values for geometry correction are saved as a memory, allowing you to load them when necessary. Saving/Loading/Erasing/Resetting the Memory Press the [Memory] button while projecting. Remote control Memory: Settings for the following menu items are saved in the memory.
  • Page 111 Memory Function Function Explanation Reset Memory Resets the name and settings of a saved memory. To reset all memories saved in Memory, Lens Position, and Geometry Correction, use Reset All Memories. s Reset - Reset All Memories p.162 If the mark on the left of the memory name is turned blue, it means the memory has already been registered.

  • Page 112: Scheduling Function

    Scheduling Function You can schedule turning the projector power on/off and switching the Set the schedule. input source, as events in the schedule. Registered events are executed Submenu Name Function automatically at the specified time on the specified dates or weekly. Event Settings Select an operation of the projector when the event You can register up to 30 events in Schedule, and one event in Extended...

  • Page 113: Checking An Event

    Scheduling Function Checking an Event Press the [ ][ ] buttons to highlight the date you want to check. The details of the events registered on the selected date are displayed. This section explains how to check a Schedule event. The indicator turns on when an event is saved.
  • Page 114 Scheduling Function Select Schedule Settings from Extended. Use the [ ][ ] buttons to highlight the date containing the event you want to edit. Highlight the event you want to edit, and then press the [Esc] button. To delete all registered events, select Schedule Reset, and then select Yes.

  • Page 115: Security Functions

    Security Functions • User's Logo Protection The projector has the following enhanced security functions. Even if someone tries to change the User's Logo set by the owner of the • Password Protection projector, it cannot be changed. When User's Logo Protection is set to You can limit who can use the projector.

  • Page 116: Entering The Password

    Security Functions Remote control If Password Protection is already activated, you must enter the password. If the password is entered correctly, the Password Protection setting menu is displayed. s "Entering the password" p.116 Select the type of Password Protect you want to set, and then press the [ ] button.

  • Page 117: Restricting Operation

    "The projector's Press the [ ] button on the control panel during projection to operation will be locked. Contact your nearest Epson service center." Epson Projector Contact List display the Control Panel Lock screen.

  • Page 118: Lens Lock

    Security Functions You can release the control panel lock by one of the following two methods. • Use the remote control to set Control Panel Lock to Off from the configuration menu. s Settings - Lock Setting - Control Panel Lock p.143 •...

  • Page 119: Anti Theft/Fall Prevention

    Security Functions Even if the remote control button lock is on, the following operations are possible. • Resetting default for the Remote Receiver setting • Releasing the remote control button lock Anti Theft/Fall Prevention The projector is equipped with the following types of anti-theft security devices.

  • Page 120: Using The Projector On A Network

    Using the Projector on a Network Follow the instructions in these sections to set up your projector for use on a network.

  • Page 121: Wired Network Projection

    After connecting and setting up the projector, install Epson iProjection from the EPSON Projector Software CD-ROM (if available) or Web site. Epson iProjection software sets up your computer for network projection. It also allows you to hold interactive meetings by projecting user's computer screens over a network.
  • Page 122 • Moderator Password: Allows you to set an authentication password Assign the IP settings for your network as necessary. for using Epson iProjection when connecting to the projector as a • If your network assigns addresses automatically, select IP Settings moderator.
  • Page 123 Wired Network Projection Press the [LAN] button on the remote control. The wired network settings complete when you see the correct IP address on the LAN standby screen.

  • Page 124: Wireless Network Projection

    You can send images to your projector through a wireless network. Selecting Wireless Network Settings Manually To do this, you must install the Epson 802.11b/g/n wireless LAN module, and then set up your projector and computer for wireless projection. Before you can project from your wireless network, you need to select network settings for the projector.
  • Page 125 • Moderator Password: Allows you to set an authentication password Select Network Configuration and press [Enter]. for using Epson iProjection when connecting to the projector as a moderator. Enter four digits for the password. (There is no default Select the Basic menu and press [Enter].
  • Page 126 Wireless Network Projection Select the Connection Mode setting. Press the [LAN] button on the remote control. The wired network settings complete when you see the correct IP • Quick lets you connect to multiple smartphones, tablets, or address on the LAN standby screen. computers directly using wireless communication.

  • Page 127: Selecting Wireless Network Settings In Windows

    Wireless Network Projection Selecting Wireless Network Settings in Windows Setting Up Wireless Network Security Before connecting to the projector, select the correct wireless network on You can set up security for your projector to use on a wireless network. Set your computer.
  • Page 128 Wireless Network Projection • WPA2-PSK, WPA/WPA2-PSK: Select the Wireless LAN menu and press [Enter]. Select Setup complete. Follow the on-screen instructions to save the settings and close the menu. • WPA2-EAP, WPA/WPA2-EAP: Select EAP Method and press [Enter]. Select the protocol for authentication as the EAP Type setting. To import your certificate, select the certificate type and press [Enter].

  • Page 129: Supported Client And Ca Certificates

    32 characters, use your Web browser to enter the text. • RADIUS Serv.Name lets you enter the server name to be verified. "Changing Settings Using a Web Browser (Epson Web Control)" p.215 If you have finished making settings, select Setup complete.

  • Page 130: Using A Qr Code To Connect A Mobile Device

    (Epson iProjection V1.3.0 or later supports this feature). • You can download Epson iProjection for free from the App Store or Google Play. Any fees incurred when communicating with the App Store or Google Play are the responsibility of the customer.

  • Page 131: Using A Usb Key To Connect A Windows Computer

    After a few minutes, your computer image is displayed by the Set up the USB key using Epson iProjection (Windows). projector. If it does not appear, press the [LAN] button on your See the "Epson iProjection Operation Guide (Windows/Mac)" for projector's remote control or restart your computer.

  • Page 132: Secure Http

    Secure HTTP You can use the HTTPS protocol to increase security between the projector Importing a Web Server Certificate Using the and a Web browser communicating with it. To do this, you create a server Menus certificate, install it on the projector, and turn on the Secure HTTP setting in the projector menus to verify the reliability of the Web browser.

  • Page 133: Supported Web Server Certificates

    Secure HTTP Select the Others menu and press [Enter]. Enter a password and press [Enter]. The certificate is imported and a completion message appears. Supported Web Server Certificates You can register these types of digital certificates. Web Server Certificate (Secure HTTP) Item Explanation Format...
  • Page 134 Launch the Web browser on the computer or mobile device connected to the network. Enter the IP address of the projector in the address input box of the browser to connect to the Epson Web Control screen. The Epson Web Control screen is displayed. Select Advanced.

  • Page 135: Configuration Menu

    Configuration Menu This chapter explains how to use the Configuration menu and its functions.

  • Page 136: Configuration Menu Operations

    Configuration Menu Operations This section explains how to use the Configuration menu. Select a submenu item. Although steps are explained using the remote control as an example, you can perform the same operations from the control panel. Check the guide under the menu for the available buttons and their operations.

  • Page 137: List Of Functions

    List of Functions Top Menu Name Submenu Name Items or Setting Values Configuration Menu Table Position -128 to 127 Settable items vary depending on the model being used and the image Auto Setup On, Off signal and source being projected. Overscan Auto, Off, 4%, and 8% Top Menu Name...

  • Page 138: Network Menu

    List of Functions Top Menu Name Submenu Name Items or Setting Values Top Menu Name Submenu Name Items or Setting Values Memory Memory, Lens Position, Geometry Language 27 languages Correction Info menu Projector Info Total Op. Time, Operation Hours, Content Playback Content Playback, Overlay Effect, Source, Input Signal, Resolution, p.161...
  • Page 139 List of Functions Top Menu Name Submenu Name Items or Setting Values Top Menu Name Submenu Name Items or Setting Values Web Control Password IPv6 Settings IPv6, Auto Configuration, Use Temporary Address Moderator Password Notifications menu Mail Notification On, Off Projector Keyword On, Off p.159...

  • Page 140: Image Menu

    List of Functions Submenu Function Image Menu Sharpness Standard: You can adjust the image sharpness. Settable items vary depending on the image signal and source currently Thin Line Enhancement: If this parameter is set to a being projected. Setting details are saved for each color mode. positive value, details such as hair or fabric patterns will be enhanced.
  • Page 141 "Setting the Amount of Light of the Projected Image" p.79 4K Enhancement : (EB-L1075U/EB-L1070U/EB-L1065U/EB- L1060U/EB-L1050U only) You can project at a doubled Dynamic Contrast: (This can only be set if Light Source resolution. Control is set to Dynamic Contrast) Automatically adjusts...

  • Page 142: Signal Menu

    List of Functions Submenu Function Signal Menu Sync. (Only available when an analog RGB computer signal is being Settable items vary depending on the image signal and source currently input.) being projected. Setting details are saved for each image signal. You can adjust computer images when flickering, fuzziness, or interference appear in the images.

  • Page 143: Settings Menu

    List of Functions Submenu Function Submenu Function Advanced You can set by choosing the following items. Reset You can reset all adjustment values on the Signal menu to their default settings, except for Input Signal and EDID. Video Range: Select the video range for the input signal from the HDMI port, DVI-D port, or HDBaseT port.
  • Page 144 List of Functions Submenu Function Submenu Function Geometry Cor- You can correct distortion. HDMI Link Sets HDMI Link. rection s "Correcting Distortion in the Projected Image" p.64 Device Connections: • Off: Displays a list of the devices connected to the HDMI port. Temporarily cancels the geometry correction.
  • Page 145 Content Playback: When this is set to On, you can play s "Setting the Brightness" p.77 back playlists created in Epson Projector Content Manager. Estimated Remains: When Constant Brightness is set to Overlay Effect : Adds color and shape decorations to the On, this indicates the amount of time for which constant image.

  • Page 146: Extended Menu

    List of Functions Submenu Function Extended Menu Reset You can reset all adjustment values on the Settings menu to their default settings, except for Audio Out Device, Power On Link, Power Off Link, Link Buffer, User Button, Memory, Content Playback. See the following to return all menu items to their default settings.
  • Page 147 List of Functions Submenu Function Submenu Function Display You can make settings related to the projector's display. Projection Select from one of the following projection methods depending on how the projector is installed. Menu Position: Select the position to display the menu on the projected screen.
  • Page 148 List of Functions Submenu Function Submenu Function s "Hiding the Image and Sound Temporarily (A/V Operation Direct Power On: Set to On to turn on the projector Mute)" p.102 simply by plugging it in. Advanced: The following items can be set. When the power cord is plugged in, note that the projector •...
  • Page 149 List of Functions Submenu Function Submenu Function A/V Settings A/V Output: Set this to Always On if you want to output HDBaseT Control Communications: (This cannot be set when audio and images to an external device even when the Extron XTP is set to On.) When set to On, Ethernet projector is in standby status.
  • Page 150 List of Functions Submenu Function Submenu Function Multi-Projection Make settings when projecting from multiple projectors. Schedule Set- You can set the projector's schedule so that it performs a tings specific operation at a pre-scheduled time. s "Multi-Projection Function" p.90 s "Scheduling Function" p.112 Projector ID: Set the ID from 01 to 30.

  • Page 151: Network Menu

    • IPv6 Address (Manual): IPv6 Address, Prefix Length, Gateway Address • IPv6 Address (Auto): Temporary Address, Link-local Address, Stateless Address, Stateful Address When connecting iOS or Android devices using Epson Display the QR iProjection, read the QR code displayed. Code...

  • Page 152: Notes On Operating The Network Menu

    List of Functions numeric buttons. After inputting, press Finish on the keyboard to confirm Submenu Function your input. Press Cancel on the keyboard to cancel your input. Network Config- The following menus are available for setting Network items. uration Basic, Wireless LAN, Wired LAN, Notifications, Others, Reset Notes on operating the Network menu Selecting from the top menu and sub menus, and changing selected items is the same as making operations from the Configuration menu.

  • Page 153: Basic Menu

    QR code, you can connect to a network just by Set a password to use when you access the projector using PJLink Password reading the QR code in Epson iProjection. Text & QR Code is set compatible PJLink software. by default.

  • Page 154: Wireless Lan Menu

    Web browser to enter the text. Search Access When Connection Mode is set to Advanced, you can search s "Changing Settings Using a Web Browser (Epson Web Point for surrounding access points, and set the SSID to be Control)"...
  • Page 155 You can enter a number from 0 to 255 in each field of the Web browser to enter the text. address. However, the following IP addresses cannot be s "Changing Settings Using a Web Browser (Epson Web used. Control)" p.215 0.0.0.0, 127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a...
  • Page 156 - PJLink • When setting the IPv6 address manually, For setting details, follow the instructions from your network make settings in Advanced from Epson administrator. Web Control. s "Changing Settings Using a Web Browser (Epson Web Control)"...

  • Page 157: Wired Lan Menu

    List of Functions Wired LAN menu Submenu Function Indicates the access points where security is set. If you select an access point where security has not been set, the Wireless LAN menu is displayed. If you select an access point where security has been set, the Security menu is displayed.

  • Page 158: Notifications Menu

    When this is set, you receive an email notification if a problem or warning ( " ( ) , : ; < > [ \ ] and spaces cannot be used.) occurs in the projector. s "Changing Settings Using a Web Browser (Epson Web Control)" p.215...

  • Page 159: Others Menu

    To strengthen security, communication between the projector Secure HTTP 127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from and computer in Epson Web Control is encrypted. When setting 0 to 255) security with Epson Web Control, we recommend setting this to Community Set the community name of SNMP.

  • Page 160: Reset Menu

    Function Message Broad- Set this to On to receive information sent by the Message Resets all of the network settings. casting Broadcasting feature in the Epson Projector Management software. Download software and User's Guides from the following Web site. http://www.epson.com...

  • Page 161: Info Menu (Display Only)

    List of Functions Submenu Function Info Menu (Display Only) Sync Info You can display the image signal Lets you check the status of the image signals being projected and the status information. of the projector. Items that can be displayed vary depending on the source This information may be needed if service currently being projected.

  • Page 162: Reset Menu

    List of Functions Submenu Function Reset Menu Version Main Displays the projector's firmware version Video2 information. Sub2 HDMI HDBaseT HDBaseT2 Displays the projector's status. Status Information s "Reading the Status Display" p.182 Displays a high temperature warning. When Temp Warning Info you select Detail when a Warning or Error is displayed, you can check detailed logs for before and after the error was detected.
  • Page 163 List of Functions Submenu Function Light Source Cal- Make settings related to Light Source Calibration. When ibration performing Light Source Calibration, the difference between the white balance and the brightness level for the light source is corrected. We recommend running this function periodically. •...

  • Page 164: Batch Setup

    • Setup using a USB flash drive. • Setup by connecting the computer and projector with a USB cable. • Set through Epson Projector Management. This manual explains the USB flash drive and the USB cable methods. • The content for Light Source Info and Status Information from the Info menu is not reflected by the batch setup function.

  • Page 165: Setup Using A Usb Flash Drive

    Batch Setup • Connect the USB flash drive directly to the projector. If the Setup Using a USB Flash Drive USB flash drive is connected to the projector through a USB hub, the settings may not be saved correctly. This section explains how to perform batch setup using a USB flash drive. •...
  • Page 166 Batch Setup When the projector's indicators turn on as follows, release the [Esc] button. When writing completes normally, the projector enters standby status. Power supply Status Laser Temp Blue - On Blue - On Orange - On Orange - On Power Blue - On When all of the indicators start flashing, the batch setup file is being...

  • Page 167: Reflecting Saved Settings To Other Projectors

    Batch Setup While holding down the [Menu] on the remote control or the Reflecting saved settings to other projectors control panel, connect the power cord to the projector. Disconnect the power cord from the projector, and check that all of the projector's indicators have turned off. Connect the USB flash drive on which the settings are saved to the projector's USB-A port (the wireless LAN module installation section).

  • Page 168: Setup By Connecting The Computer And Projector With A Usb Cable

    Batch Setup Setup by Connecting the Computer and Projector Caution with a USB Cable • Do not disconnect the power cord from the projector while the settings are being written. If the power cord is disconnected, the projector may not start correctly. The following operating systems support the batch setup function.

  • Page 169: Reflecting Saved Settings To Other Projectors

    Batch Setup When the projector's indicators turn on as follows, release the [Esc] Reflecting saved settings to other projectors button. Disconnect the power cord from the projector, and check that all of the projector's indicators have turned off. Connect the computer's USB port to the projector's Service port with a USB cable.
  • Page 170 Batch Setup While holding down the [Menu] on the remote control or the Perform "Remove USB device" on your computer, and then control panel, connect the power cord to the projector. disconnect the USB cable. When using Mac, perform "Remove EPSON_PJ". When all of the indicators start flashing, the settings are being written.

  • Page 171: When Setup Fails

    Stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List. Epson Projector Contact List Power: Blue - flashing fast...

  • Page 172: Troubleshooting

    Troubleshooting This chapter explains how to identify problems and what to do if a problem is found.

  • Page 173: Using The Help

    Using the Help If a problem occurs with the projector, you can display the Help screen to assist you. You can also set the projector to an appropriate state by answering the questions. Press the [ ] button. The Home screen is displayed. Remote control Select a menu item.
  • Page 174 Using the Help See the following if the Help function does not provide a solution to the problem. s "Reading the Indicators" p.175...

  • Page 175: Reading The Indicators

    Reading the Indicators This projector has the following five indicators to indicate the projector's status. Power indicator Indicates the projector's status. Status indicator Indicates the projector's status. Laser indicator Indicates the light source status. Temp indicator Indicates the internal temperature status. This is normally turned off. Filter indicator Indicates the air filter status.
  • Page 176 Reading the Indicators Indicator Projector's Sta- Explanation Power Status Laser Temp Filter supply Projecting The projector is projecting. Blue - On Blue - On Status varies Cool down status This is the status immediately after turning off the power. In this status, all buttons are disabled. Blue - Blue - On Flashing...
  • Page 177 If the error continues after checking the points above, stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List. Epson Projector Contact List When using at an altitude of 1500 m or more, set High Altitude Mode to On.
  • Page 178 After checking, connect the power cord to the electrical outlet. If the error continues after checking the points above, stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List.
  • Page 179 "Replacing the Air Filter" p.208 Laser Warning Stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List. Epson Projector Contact List Orange - Blue -...
  • Page 180 If the error continues after checking the points above, stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List. Epson Projector Contact List Air Filter Notice "Time to clean the air filter.
  • Page 181 • If the indicators are in a state not shown in this table, stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List.

  • Page 182: Reading The Status Display

    Reading the Status Display You can display the operating status of the projector on the projected Use the [ ][ ] buttons or the [ ] buttons to select a image. You can check the detailed status of the projector by using button category.

  • Page 183: Explanations Of The Display Content

    Reading the Status Display Explanations of the Display Content Category Item Status Display Explanation Status Information System Displays the projector's status. See the following for more information on how to remedy the errors and warnings. s "Reading the Indicators" p.175 The projector is in normal status.
  • Page 184 Reading the Status Display Category Item Status Display Explanation Status Information Source HDMI Displays the source name for the connected equipment currently being projected. HDBaseT DVI-D Computer On-Screen Display Displays the settings for the On-Screen Display. When set to Off, the menus or messages are not displayed on the projected images.
  • Page 185 Reading the Status Display Category Item Status Display Explanation Source Color Space Displays the color space of the current input signal. YCbCr YPbPr H-Frequency − Displays the horizontal frequency of the current input signal. V-Frequency − Displays the vertical frequency of the current input signal. Sync Polarity H:Posi / V:Posi Displays the Sync polarity.
  • Page 186 Reading the Status Display Category Item Status Display Explanation Signal Information 5V Detect Detected Displays the detection results of 5V signals. Not Detect TMDS Clock − Displays the TMDS frequency of the current input signal. H-Frequency − Displays the horizontal frequency of the current input signal. V-Frequency −...
  • Page 187 Reading the Status Display Items displayed for Signal Information vary depending on the model being used and the image signal and source being projected.
  • Page 188 Reading the Status Display Category Item Status Display Explanation Network Wired Projector Name − Displays the projector name used to identify the projector when connected to a network. Connection Mode HDBaseT Displays the connection path for LAN. DHCP Displays the DHCP settings. IP Display Displays the IP address display settings.
  • Page 189 Reading the Status Display Category Item Status Display Explanation Maintenance Operation Time − Displays the total operation time of the projector. Laser Op.Time − Displays the laser operating time for each setting in Light Source Mode. Version Serial No. − Displays the projector's serial number.

  • Page 190: Problem Solving

    Problem Solving If any of the following problems occur and the indicators do not offer a Other Problems solution, refer to the pages given for each problem. • There are afterimages (screen burn-in) in the projected image sp.197 Problems Relating to Images •...

  • Page 191: Problems Relating To Images

    Problem Solving Problems Relating to Images No images appear Check Remedy Did you press the [ ] button on the remote control or control Press the [ ] button to turn on the power. panel? Are the indicators switched off? The power cord is not connected correctly or power is not being supplied.

  • Page 192: Projection Stops Automatically

    Problem Solving Projection stops automatically Check Remedy Is Sleep Mode set to On? Press the [ ] button to turn on the power. If you do not want to use Sleep Mode, change the setting to Off. s Extended - Operation - Sleep Mode p.146 "Not supported"...

  • Page 193: Images Are Fuzzy, Out Of Focus, Or Distorted

    Problem Solving Images are fuzzy, out of focus, or distorted Check Remedy Is the focus adjusted correctly? Make sure that at least 20 minutes has passed after the projection starts, and press the [Focus] button on the remote control to adjust the focus. s "Correcting the Focus"...

  • Page 194: The Image Is Truncated (Large) Or Small, The Aspect Is Not Suitable, Or The Image Has Been Reversed

    Problem Solving The image is truncated (large) or small, the aspect is not suitable, or the image has been reversed Check Remedy Have the Screen been set correctly? Make the appropriate Screen for the screen being used. s "Screen Settings" p.32 Is the aspect adjusted correctly? Press the [Aspect] button to select an aspect suitable for the input source.

  • Page 195: Image Colors Are Not Right

    Problem Solving Image colors are not right Check Remedy Do the input signal settings match the signals from the connected Change the setting according to the signal for the connected equipment. device? s Signal - Advanced - Input Signal p.142 Is the image brightness adjusted correctly? Adjust the Brightness setting from the Configuration menu.

  • Page 196: Problems When Projection Starts

    Do the indicators turn on and off when the power cord is touched? There is probably a poor contact in the power cable, or the power cable may be defective. Reinsert the power cable. If this does not solve the problem, stop using the projector, disconnect the power cable from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List. Epson Projector Contact List...

  • Page 197: Problems With Content Playback Mode

    Are there any playlists on the USB flash drive? Make sure the USB flash drive contains a playlist. See the "Epson Projector Content Manager Operation Guide" for details on creating playlists. Is the USB flash drive connected to the projector? Make sure the USB flash drive is connected directly to the projector.

  • Page 198: No Sound Can Be Heard Or The Sound Is Faint

    Problem Solving No sound can be heard or the sound is faint Check Remedy Check that the audio/video cable is securely attached to both the Disconnect the cable from the Audio port, and then reconnect the cable. projector and audio source. Is the projector volume set to the minimum? Adjust the volume so that sound can be heard.

  • Page 199: Nothing Appears On The External Monitor

    Problem Solving Check Remedy Are the remote control ID and the projector ID matched? Make sure the ID for the projector you want to operate and the ID for the remote control match. To operate all projectors by remote control regardless of the ID setting, set the [ID] switch on the remote control to Off. s "ID Settings"...

  • Page 200: Email Is Not Received Even If A Problem Occurs In The Projector

    "The battery that saves your clock settings is running low." is displayed Check Remedy The internal power supply that saves your clock settings is Contact your local dealer or the nearest address provided in the Epson Projector Contact List. Epson Projector Contact List running low.

  • Page 201: About Event Id

    About Event ID Check the numbers and then apply the following countermeasures. If you cannot resolve the problem, contact your network administrator, or contact your local dealer or the nearest address provided in the Epson Projector Contact List. Epson Projector Contact List...
  • Page 202 Event ID Cause Remedy 089D Key exchange failed. 0920 The internal power supply that saves your clock settings is running Contact your local dealer or the nearest address provided in the Epson Projector Contact List. low. Epson Projector Contact List...

  • Page 203: Maintenance

    Maintenance This chapter provides information on maintenance procedures to ensure the best level of performance from the projector for a long time to come.

  • Page 204: Cleaning The Parts

    Cleaning the Parts You should clean the projector if it becomes dirty or if the quality of Attention projected images starts to deteriorate. Do not rub the lens with harsh materials or subject the lens to shocks, as it can easily become damaged. Caution When cleaning, unplug the power cable from the electric outlet.

  • Page 205: Cleaning The Air Filter

    Cleaning the Parts Cleaning the air filter The air filter can be replaced even when the projector is suspended from a ceiling. After you turn off the projector's power and the confirmation buzzer beeps, disconnect the power cord. Loosen the fixing screws and open the air filter cover. With the front (the side with tabs) of the air filter facing down, tap the air filter four or five times to shake off the dust.

  • Page 206: Cleaning The Air Intake Vent

    Cleaning the Parts Remove any dust remaining on the air filter by using a vacuum cleaner from the front side. Replace the air filter. • If a message is frequently displayed, even after cleaning, it is time to replace the air filter. Replace it with a new air filter. s "Replacing the Air Filter"...
  • Page 207 Cleaning the Parts...

  • Page 208: Replacing Consumables

    Replacing Consumables This section explains how to replace the air filter. Remove the air filter. Grip the tab of the air filter, and pull it straight out. Replacing the Air Filter Air filter replacement period If the message is displayed frequently even though the air filter has been cleaned, replace the air filter.
  • Page 209 Replacing Consumables Close the air filter cover and tighten the fixing screws. Dispose of used air filters properly in accordance with your local regulations. Material of the frame part: Polypropylene Material of the filter part: Polypropylene...

  • Page 210: Image Maintenance

    Image Maintenance Panel Alignment Adjusts the pixel color shift for the LCD panel. You can adjust the pixels horizontally and vertically by 0.125 pixels within a range of ±3 pixels. • Image quality may decline after performing LCD alignment. • Images for pixels that extend beyond the edge of the projected screen are not displayed.
  • Page 211 Image Maintenance Select a combination of R (red), G (green), and B (blue) for the grid color. R/G/B: Displays a combination all three colors; red, green and blue. The actual color of the grid is white. R/G: This is available when R is selected from Select Color. Displays a combination of two colors;...

  • Page 212: Color Uniformity

    Image Maintenance Color Uniformity: Turns color uniformity on or off. Color Uniformity Adjustment Level: There are eight levels from white, through gray, and up to black. You can adjust each level individually. Adjusts the color tone for the whole screen. Start Adjustments: Starts adjusting color uniformity.
  • Page 213 Image Maintenance Use the [ ] buttons to select the color you want to adjust, and then use the [ ][ ] buttons to adjust. Press the [ ] button to weaken the color tone. Press the [ ] button to strengthen the color tone.

  • Page 214: Appendix

    Appendix...

  • Page 215: Monitoring And Controlling

    Use the following procedure to display the Epson Web Control screen. Make sure your device and projector are ready for the network connection. If your Web browser is set up to connect via a proxy server, the Epson Web Control screen cannot be displayed. To display Web Control, you need to make settings so that a proxy server is not used for a connection.

  • Page 216: Basic Control Screen

    Monitoring and Controlling Connect your device to the same network as the connected Test Pattern projector. s "Test Pattern Operation Screen" p.219 The connection method varies depending on the device. See the OSD Control Pad manual supplied with your device for details. When using a mobile s "OSD Control Pad Screen"...

  • Page 217: Osd Control Pad Screen

    Monitoring and Controlling Moves to the Home screen. Turns the projector on. Moves to the Home screen. Switches to the target image. Displays and closes the Configuration menu. Turns the video and audio on or off. You can operate the Configuration menu using your finger or mouse. Flick to select an item, and tap to confirm the selection.

  • Page 218: Lens Control Screen

    Monitoring and Controlling Focus/Distortion Operation Screen Items in the Configuration menu that cannot be set in Epson Web Control are listed below. • Image menu - Advanced - Gamma - Custom • Signal menu - Advanced - BNC Sync Termination, EDID, DDC Buffer •...
  • Page 219 Monitoring and Controlling Moves the lens position to the home position if you press the OK button in the confirmation screen. Displays the horizontal image position. You can directly specify the position by tapping it and entering a number. Test Pattern Operation Screen Move the slider to adjust the zoom.

  • Page 220: Status Information Screen

    You can check the projector's status. See the following for display details. Playback Mode) "Reading the Status Display" p.182 In Content Playback mode, you can use a Web browser to set and control network projectors, and edit playlists. You can also control projectors using a Web browser from Epson iProjection (iOS/Android).
  • Page 221 Start the Web browser on your device. Enter the IP address of the projector in the address input box of the browser to connect to the Epson Web Control screen. When entering an IPv6 address, enclose the address in square brackets [].

  • Page 222: Remote

    Monitoring and Controlling Remote You may need to login to set options on the Epson Web Control screen. When the login screen is displayed, enter your user name and password. (The user name is EPSONWEB; the default password is admin.) •...

  • Page 223: Playlists

    Monitoring and Controlling Playlists USB Memory Device Moves to the Epson Web Control home screen. Moves to the Epson Web Control home screen. Saves photos and videos you want to add to your playlists to the USB flash drive. Controls playback of the playlist.

  • Page 224: Time Table

    Turns the timetable on or off. adjusted are returned to their default values. Returns to the previous menu. The timetable feature in Epson Projector Content Manager allows you Displays the help topics. to specify when the playlist will be played.

  • Page 225: Using The Mail Notification Function To Report Problems

    • No lens Sender: The email address set in From See the following to deal with problems or warnings. Subject: EPSON Projector "Reading the Indicators" p.175 Line 1: The projector name where the problem has occurred Line 2: The IP address set for the projector where the problem has occurred.

  • Page 226: Management Using Snmp

    For more details, contact your local dealer or the nearest address provided Command list in the Epson Projector Contact List. When the power ON command is transmitted to the projector, the power Epson Projector Contact List turns on and it enters warm-up mode. When the projector's power has turned on, a colon ":"...

  • Page 227: About Pjlink

    Monitoring and Controlling • Projector input port name: RS-232C About PJLink <At the projector> <At the computer> PJLink was established by the JBMIA (Japan Business Machine and Information System Industries Association) as a standard protocol for controlling network-compatible projector's as part of their efforts to standardize projector control protocols.

  • Page 228: About Crestron Connected

    Web browser. EPSON L1075U/L1070U EPSON L1065U/L1060U • You can only enter single-byte alphanumeric characters and symbols. EPSON L1050U • The Message Broadcasting feature for Epson Projector Management EPSON L1070W ® is unavailable while using Crestron Connected EPSON L1060W • If you set Standby Mode to Communication On, you can control...
  • Page 229 Function Web browser, and press the Enter key on the keyboard. A/V Mute Turns the video and audio on or off. The Epson Web Control home screen is displayed. s "Hiding the Image and Sound Temporarily (A/V Mute)" p.102 Press Crestron Connected.
  • Page 230 Monitoring and Controlling Button Function Performs the same operation as the [ ] button on the remote control. s "Remote Control" p.20 Menu Displays and closes the Configuration menu. Auto If clicked while projecting analog RGB signals from the Computer port, you can automatically optimize Tracking, Sync., and Position.
  • Page 231 Monitoring and Controlling Item Function Item Function DHCP Select the Enabled check box to use DHCP. You cannot New Password Enter the new password when changing the password to enter an IP address if DHCP is enabled. open the operation window. (The name can contain up to 26 single-byte alphanumeric characters.) IP Address Enter the IP address to assign to the currently connected...

  • Page 232: About Web Api

    You can apply API authentication (Digest authentication) to Web API communications. The user name for API authentication is EPSONWEB; the password is the Web Control Password. Open the Epson Web Control home screen in your Web browser. Press Developer's Menu.

  • Page 233: Optional Accessories And Consumables

    Computer cable ELPKC09 * Special techniques are required to suspend the projector from a ceiling. Contact (3 m - for mini D-Sub15-pin/mini D-Sub 15pin) your local dealer or the nearest address provided in the Epson Projector Contact Computer cable ELPKC10 List.

  • Page 234: Screen Size And Projection Distance

    Screen Size and Projection Distance ELPLM08 Projection Distances for EB-L1075U/EB-L1070U/EB- This section shows the projection distances for models equipped with L1065U/EB-L1060U/EB-L1050U/EB-L1070W/EB- standard lenses. L1060W Unit: cm 4:3 Screen Size Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 45"...

  • Page 235: Elplx01/Elplx01W

    Screen Size and Projection Distance 16:9 Screen Size 16:10 Screen Size Minimum (Wide) to Vertical lens shift Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top Maximum (Tele) Bottom to Top 80" 177x100 255 to 411 -125 to +25 800"...

  • Page 236: Elplu03

    Screen Size and Projection Distance ELPLU03 Unit: cm 16:9 Screen Size Vertical lens shift Bottom to Top 4:3 Screen Size 100" 221x125 +7 to +31 Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 120" 266x149 +8 to +38 71"...

  • Page 237: Elplu04/Elplu02

    Screen Size and Projection Distance 16:9 Screen Size 4:3 Screen Size Minimum (Wide) to Vertical lens shift Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top Maximum (Tele) Bottom to Top 500" 1107x623 734 to 881 -779 to +157 60"...

  • Page 238: Elplw05

    Screen Size and Projection Distance ELPLW05 Unit: cm 16:9 Screen Size Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 4:3 Screen Size 500" 1107x623 991 to 1192 -779 to +157 Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 800"...

  • Page 239: Elplw06/Elplw04

    Screen Size and Projection Distance ELPLW06/ELPLW04 Unit: cm 16:9 Screen Size Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 4:3 Screen Size 150" 332x187 351 to 489 -234 to +47 Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 200"...

  • Page 240: Elplw08

    Screen Size and Projection Distance ELPLW08 Unit: cm 16:9 Screen Size Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 4:3 Screen Size 150" 332x187 544 to 742 -234 to +47 Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 200"...

  • Page 241: Elplm15/Elplm09/Elpls04

    Screen Size and Projection Distance ELPLM15/ELPLM09/ELPLS04 Unit: cm 16:9 Screen Size Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 4:3 Screen Size 250" 553x311 659 to 924 -390 to +78 Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 300"...

  • Page 242: Elplm10/Elplm06

    Screen Size and Projection Distance ELPLM10/ELPLM06 Unit: cm 16:9 Screen Size Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 4:3 Screen Size 150" 332x187 721 to 1162 -234 to +47 Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 200"...

  • Page 243: Elplm11/Elplm07

    Screen Size and Projection Distance ELPLM11/ELPLM07 Unit: cm 16:9 Screen Size Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 4:3 Screen Size 150" 332x187 1112 to 1687 -234 to +47 Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 200"...

  • Page 244: Elpll08/Elpll07

    Screen Size and Projection Distance ELPLL08/ELPLL07 Unit: cm 16:9 Screen Size Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 4:3 Screen Size 150" 332x187 1626 to 2465 -234 to +47 Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 200"...

  • Page 245: Elplr04

    Screen Size and Projection Distance ELPLR04 16:9 Screen Size Minimum (Wide) to Vertical lens shift Zoom and lens shift are not supported. Maximum (Tele) Bottom to Top Unit: cm 150" 332x187 2414 to 3378 -234 to +47 4:3 Screen Size 200"...
  • Page 246 Screen Size and Projection Distance 16:9 Screen Size 250" 553x311 -156 300" 664x374 -187 500" 1107x623 1082 -311 800" 1771x996 1735 -498 Unit: cm 16:10 Screen Size 50" 108x67 60" 130x81 80" 172x108 100" 215x135 120" 258x162 150" 323x202 -101 200"...

  • Page 247: Projection Distances For Eb-L1070

    Screen Size and Projection Distance Unit: cm Projection Distances for EB-L1070 4:3 Screen Size Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 50" 102x76 147 to 239 -82 to +6 60" 122x91 178 to 288 -98 to +7 80"...

  • Page 248: Elplx01/Elplx01W

    Screen Size and Projection Distance ELPLX01/ELPLX01W 16:9 Screen Size Minimum (Wide) to Vertical lens shift Zoom is not supported. Maximum (Tele) Bottom to Top 200" 443x249 658 to 1057 -316 to +67 4:3 Screen Size Vertical lens shift 250" 553x311 824 to 1322 -395 to +83 Bottom to Top...

  • Page 249: Elplu03

    Screen Size and Projection Distance 16:9 Screen Size 4:3 Screen Size Vertical lens shift Minimum (Wide) to Vertical lens shift Bottom to Top Maximum (Tele) Bottom to Top 350" 775x436 +73 to +117 100" 203x152 134 to 162 -164 to +12 500"...

  • Page 250: Elplu04/Elplu02

    Screen Size and Projection Distance Unit: cm 4:3 Screen Size Minimum (Wide) to Vertical lens shift 16:10 Screen Size Maximum (Tele) Bottom to Top Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 300" 610x457 555 to 669 -492 to +35 76"...

  • Page 251: Elplw05

    Screen Size and Projection Distance Unit: cm 4:3 Screen Size Minimum (Wide) to Vertical lens shift 16:10 Screen Size Maximum (Tele) Bottom to Top Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 200" 406x305 440 to 612 -328 to +23 48"...

  • Page 252: Elplw06/Elplw04

    Screen Size and Projection Distance Unit: cm 4:3 Screen Size Minimum (Wide) to Vertical lens shift 16:10 Screen Size Maximum (Tele) Bottom to Top Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 200" 406x305 682 to 930 -328 to +23 48"...

  • Page 253: Elplw08

    Screen Size and Projection Distance Unit: cm 4:3 Screen Size Minimum (Wide) to Vertical lens shift 16:10 Screen Size Maximum (Tele) Bottom to Top Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 200" 406x305 493 to 692 -328 to +23 48"...

  • Page 254: Elplm15/Elplm09/Elpls04

    Screen Size and Projection Distance Unit: cm 4:3 Screen Size Minimum (Wide) to Vertical lens shift 16:10 Screen Size Maximum (Tele) Bottom to Top Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 250" 508x381 1129 to 1822 -410 to +29 48"...

  • Page 255: Elplm10/Elplm06

    Screen Size and Projection Distance Unit: cm 4:3 Screen Size Minimum (Wide) to Vertical lens shift 16:10 Screen Size Maximum (Tele) Bottom to Top Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 200" 406x305 1393 to 2115 -328 to +23 48"...

  • Page 256: Elplm11/Elplm07

    Screen Size and Projection Distance Unit: cm 4:3 Screen Size Minimum (Wide) to Vertical lens shift 16:10 Screen Size Maximum (Tele) Bottom to Top Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 200" 406x305 2038 to 3089 -328 to +23 48"...

  • Page 257: Elpll08/Elpll07

    Screen Size and Projection Distance Unit: cm 4:3 Screen Size Minimum (Wide) to Vertical lens shift 16:10 Screen Size Maximum (Tele) Bottom to Top Minimum (Wide) to Vertical lens shift Maximum (Tele) Bottom to Top 200" 406x305 3025 to 4232 -328 to +23 48"...

  • Page 258: Elplr04

    Screen Size and Projection Distance Unit: cm 4:3 Screen Size 200" 406x305 -152 16:10 Screen Size Minimum (Wide) to Vertical lens shift 250" 508x381 -191 Maximum (Tele) Bottom to Top 300" 610x457 -229 48" 103x65 746 to 1053 -77 to +12 500"...

  • Page 259: Polarizer (Elppl01) Installation Distance

    Screen Size and Projection Distance EB-L1075U/EB-L1070U/EB-L1065U/EB-L1060U/EB-L1050U 16:10 Screen Size Units: mm 80" 172x108 100" 215x135 Lens type 120" 258x162 ELPLM08 150" 323x202 -101 ELPLW06/ELPLW04 200" 431x269 -135 ELPLW08 250" 538x337 -168 ELPLM15/ELPLM09/ 300" 646x404 -202 ELPLS04 500" 1077x673 1076 -337 ELPLM10/ELPLM06 800"...
  • Page 260 Screen Size and Projection Distance Lens type ELPLW08 ELPLM15/ELPLM09/ ELPLS04 ELPLM10/ELPLM06...

  • Page 261: Adjustment Range For Projected Images

    Adjustment Range for Projected Images EB-L1075U/EB-L1070U/EB-L1065U/EB-L1060U/EB-L1050U/EB-L1070W/ H/V-Keystone EB-L1060W "H/V-Keystone" p.65 Horizontally curved surface (concave) Lens type Vertical Horizontal Screen ELPLM08 -45˚ to 45˚ -30˚ to 30˚ Center of the circle of which the ELPLX01/ELPLX01W -16˚ to 16˚ -16˚ to 16˚...
  • Page 262 Adjustment Range for Projected Images Horizontally curved surface (convex) Lens type Vertical lens shift: Vertical lens shift: Top Home position Screen Center of the circle of which the curved surface is an arc Projection distance Side view Side view Radius of the circle of which the ELPLM11/ELPLM07 0.11 0.11...
  • Page 263 Adjustment Range for Projected Images Vertically curved surface (concave) Lens type Vertical lens shift: Vertical lens shift: Top Home position Screen Center of the circle of which the curved surface is an arc Projection distance Side view Radius of the circle of which the Side view curved surface is an arc ELPLL08/ELPLL07...
  • Page 264 Adjustment Range for Projected Images Vertically curved surface (convex) Lens type Vertical lens shift: Vertical lens shift: Top Home position Screen Center of the circle of which the curved surface is an arc Projection distance Side view Radius of the circle of which the Side view curved surface is an arc ELPLL08/ELPLL07...
  • Page 265 Adjustment Range for Projected Images EB-L1070 Lens type Vertical lens shift: Vertical lens shift: Top Home position Horizontally curved surface (concave) Screen Center of the circle of which the Side view curved surface is an arc Side view Projection distance ELPLL08/ELPLL07 0.08 0.08...
  • Page 266 Adjustment Range for Projected Images Horizontally curved surface (convex) Vertically curved surface (concave) Screen Screen Center of the circle of which the Center of the circle of which the curved surface is an arc curved surface is an arc Projection distance Projection distance Radius of the circle of which the Radius of the circle of which the...
  • Page 267 Adjustment Range for Projected Images Vertically curved surface (convex) Lens type Vertical lens shift: Vertical lens shift: Top Home position Screen Center of the circle of which the curved surface is an arc Projection distance Side view Radius of the circle of which the Side view curved surface is an arc ELPLL08/ELPLL07...

  • Page 268: Corner Wall

    Adjustment Range for Projected Images EB-L1075U/EB-L1070U/EB-L1065U/EB-L1060U/EB-L1050U/EB-L1070W/ Lens type Vertical lens shift: Vertical lens shift: Top EB-L1060W Home position Concave horizontal corner correction (correction to bilateral symmetry by using corners as the center line) Screen Side view Side view ELPLL08/ELPLL07 0.07 0.07...
  • Page 269 Adjustment Range for Projected Images Lens type Vertical lens shift: Vertical lens shift: Top Lens type Vertical lens shift: Vertical lens shift: Top Home position Home position Side view Side view Side view Side view ELPLM11/ELPLM07 29˚ 28˚ ELPLR04 8˚ ELPLL08/ELPLL07 28˚...
  • Page 270 Adjustment Range for Projected Images Side view Lens type Vertical lens shift: Vertical lens shift: Top Home position Lens type Vertical lens shift: Vertical lens shift: Top Home position Side view Side view ELPLM08 30˚ 12˚ Side view Side view ELPLX01/ELPLX01W ELPLM08 19˚...
  • Page 271 Adjustment Range for Projected Images EB-L1070 Lens type Vertical lens shift: Vertical lens shift: Top Home position Concave horizontal corner correction (correction to bilateral symmetry by using corners as the center line) Screen Side view Side view α Angle of possible projector ELPLL08/ELPLL07 28˚...
  • Page 272 Adjustment Range for Projected Images Lens type Vertical lens shift: Vertical lens shift: Top Lens type Vertical lens shift: Vertical lens shift: Top Home position Home position Side view Side view Side view Side view ELPLW05 10˚ 7˚ ELPLM08 31˚ 14˚...
  • Page 273 Adjustment Range for Projected Images Side view Lens type Vertical lens shift: Vertical lens shift: Top Home position Side view Side view ELPLM08 18˚ 4˚ ELPLX01/ELPLX01W ELPLU03 6˚ ELPLU04/ELPLU02 12˚ ELPLR04 13˚ ELPLW05 14˚ ELPLW06/ELPLW04 19˚ 6˚ ELPLW08 16˚ 0˚ ELPLM15/ELPLM09/ 21˚...

  • Page 274: Supported Monitor Displays

    Supported Monitor Displays Supported Monitor Displays When the resolution of the input signals is larger than the projector's panel resolution, the image quality may decline. Signals with a check mark are supported. Signal Resolution V Sync Computer/BNC HDMI/HDBaseT DVI-D Format (Dot) (Hz) YCbCr...
  • Page 275 Supported Monitor Displays Signal Resolution V Sync Computer/BNC HDMI/HDBaseT DVI-D Format (Dot) (Hz) YCbCr YCbCr YCbCr 4:4:4 4:2:2 4:2:0 4:4:4 4:2:2 WXGA+ 1440 WXGA++ 1600 SXGA 1152 1280 1280 1024 SXGA+ 1400 1050 WSXGA+ 1680 1050 *2, 3 UXGA 1600 1200 1920x1080 1920...
  • Page 276 4:2:0 4:4:4 4:2:2 WQXGA RB 2560 1600 *1 Based on VESA CVT-RB (Reduced Blanking) *2 Only when Wide is selected in Resolution from the Signal menu *3 EB-L1075U/EB-L1070U/EB-L1065U/EB-L1060U/EB-L1050U/EB-L1070W/EB-L1060W only *4 EB-L1075U/EB-L1070U/EB-L1065U/EB-L1060U/EB-L1050U only Signal Resolution V Sync Computer/BNC HDMI/HDBaseT DVI-D Format...

  • Page 277: Eb-L1075U/Eb-L1070U/Eb-L1065U/Eb-L1060U/Eb-L1050U Only)

    YCbCr 4:4:4 4:2:2 4:2:0 4:4:4 4:2:2 59.94 HDTV (1080i) 1920 1080 59.94 HDTV (1080p) 1920 1080 23.98 29.97 59.94 4K (EB-L1075U/EB-L1070U/EB-L1065U/EB-L1060U/EB-L1050U only) Signal Resolution V Sync Computer/BNC HDMI/HDBaseT DVI-D Format (Dot) (Hz) YCbCr YCbCr YCbCr 4:4:4 4:2:2 4:2:0 4:4:4 4:2:2...
  • Page 278 Supported Monitor Displays Signal Resolution V Sync Computer/BNC HDMI/HDBaseT DVI-D Format (Dot) (Hz) YCbCr YCbCr YCbCr 4:4:4 4:2:2 4:2:0 4:4:4 4:2:2 59.94 4096x2160 4096 2160 23.98 SMPTE 29.97 59.94...

  • Page 279: Specifications

    Specifications Projector General Specifications EB-L1075U EB-L1065U EB-L1050U EB-L1070W EB-L1060W EB-L1070 Product name EB-L1070U EB-L1060U 545 (W) x 164 (H) x 436 (D) mm (not including raised section) Dimensions 0.76" Wide 0.79" LCD panel size Polysilicon TFT active matrix Display method...
  • Page 280 Specifications Rated power con‐ Rated power con‐ Rated power con‐ Rated power con‐ Rated power con‐ Rated power con‐ Power 100 to 120 V area sumption: 439 W sumption: 361 W sumption: 361 W sumption: 439 W sumption: 361 W sumption: 439 W con- Standby power con‐...
  • Page 281 Specifications EB-L1075U EB-L1065U EB-L1050U EB-L1070W EB-L1060W EB-L1070 Product name EB-L1070U EB-L1060U Mini D-Sub15-pin (female) blue Connec- Computer Port tors Audio1 port Stereo mini jack (3.5Φ) 5BNC (female) BNC port Audio2 port Stereo mini jack (3.5Φ) DVI-D 24pin Single link HDCP compatible...
  • Page 282 Specifications This product is also designed for IT power distribution system with phase-to-phase voltage 230V.
  • Page 283 CPU Boards and Power Supplies used with Class B Personal Computers the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, Epson America, Inc. including interference that may cause undesired operation. Located at:...

  • Page 284: Appearance

    Appearance 4-M4x8 272.5 Center of lens Distance from center of lens to suspension bracket fixing point 4-M6x14 Units: mm...

  • Page 285: Trademarks And Copyrights

    Windows 10 operating system Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the In this guide, the operating systems above are referred to as "Windows purchaser or third parties as a result of: accident, misuse, or abuse of this product or Vista", "Windows 7", "Windows 8", "Windows 8.1", and "Windows 10".
  • Page 286 HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Other product names used herein are also for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks. ©SEIKO EPSON CORPORATION 2019. All rights reserved.

  • Page 287: List Of Safety Symbols

    List of Safety Symbols The following table lists the meaning of the safety symbols labeled on the Symbol mark Approved Meaning equipment. standards IEC60417 Battery, general Symbol mark Approved Meaning No. 5001B On battery powered equipment. To standards identify a device for instance a cover for IEC60417 "ON"...
  • Page 288 List of Safety Symbols Symbol mark Approved Meaning Symbol mark Approved Meaning standards standards ISO 3864 General prohibition ISO7010 Warning, light emission (UV, visible light, To identify actions or operations that are No. W027 IR, etc.) prohibited. ISO 3864 When you are close to the light emissions, be careful not to injure your eyes or skin.

  • Page 289: Index

    Ceiling mount ..........147 Image adjustment menu ......140 EDID ............143 Ceiling mount fixing points ....... 18 Indicator ............. 175 Epson Projector Management ....215 Cinema ............76 Info menu ........... 161 Epson Web Control ........215 Cleaning ............204 Input signal ..........
  • Page 290 Index Overscan ............. 142 Remote port ..........17 Remote receiver ........... 15 Keystone distortion ........144 Replacing batteries ........23 Replacing the air filter ....... 208 Panel alignment ......... 147 Reset all config ........... 163 Part names and functions ......15 Reset memory ..........
  • Page 291 Index Status indicators ........... 15 Storage temperature ........280 Subnet mask ........155, 157 Supported resolutions ....... 274 Swap screens ..........101 Sync info ............. 161 Sync............. 142 Test Pattern .......... 33, 145 Tint .............. 140 Tracking ............142 Trap IP address 1/2 ........

This manual is also suitable for:

Eb-l1070uEb-l1050uEb-l1060wEb-l1070wEb-l1070Eb-l1065u ... Show all

Table of Contents
