3.1 Assembly Group Wheels

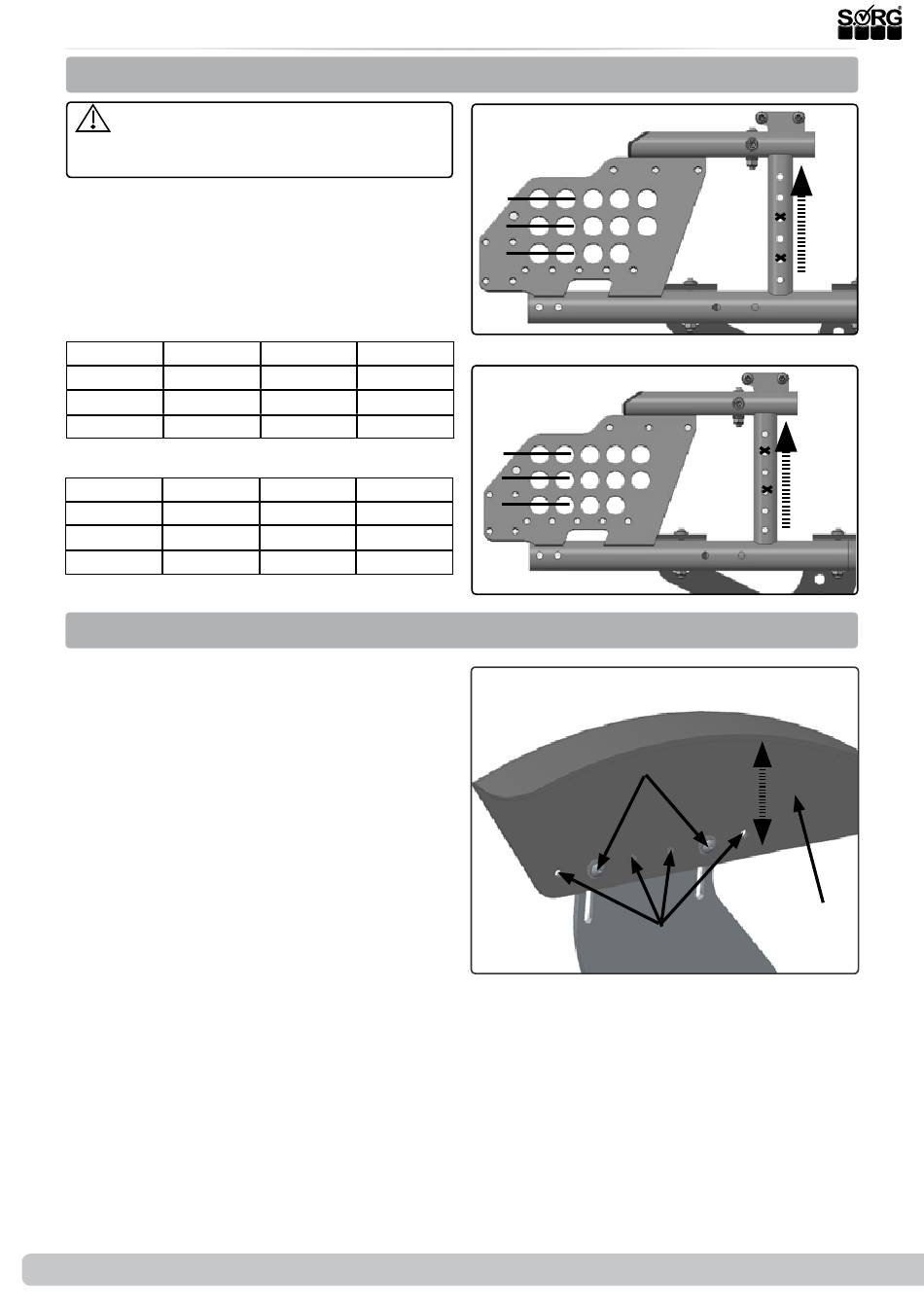

3.1.1 Position rear wheel
After changing the position, check the tilt
stability of the Loop
full tilt and, if necessary, modify the position!
(1+2) The position of the drive wheels is ad-
justed depending on the desired seat height.
The seat height can be additionally changed
by vertical displacement of the seat plate.
(1) Seat height adjustment Seat depth 300-400 mm
20"
A
410
B
435
C
460
(2)Seat height adjustment Seat depth 420-480 mm
20"
A
435
B
460
C
485
3.1.2 Adjustment of height and position of the wheel guard for rear wheel position changes
(3) For vertical adjustment:
•
Remove drive wheel,
•
Loosen screw connections (A) on wheel
guard
•
and push the wheel guard (B) all the
way up.
•
Adjust the wheel position.
•
Replace the drive wheel
•
and push the wheel guard (B) down
so that there is a gap of 50 mm / 5 cm
between the wheel guard (B) and the
drive wheel.
•
Then remove the drive wheel again
•
and tighten the screws (A) on the wheel
guard (B) again.
For horizontal adjustment:
•
Remove drive wheel,
•
Remove fitting (A) on wheel guard (B).
•
Place the wheel guard (B) in the alter-
native holes (C) according to the desi-
red position of the wheel and screw it
on slightly so that the wheel guard can
still be screwed in at the height.
•
Then proceed according to the vertical
adjustment.
10 of 40
RS with the patient at
SORG
22"
24"
435
460
460
485
485
510
22"
24"
460
485
485
505
505
530
Service Record Loop
(A)
(B)
(C)
(2)
(A)
(B)
(C)
(3)
(A)
(C)
RS
SORG
+20/
40 mm
+20
mm
(B)
