Caster - SORG Loop RS Service Record

3.1 Assembly Group Wheels

3.1.7 Caster

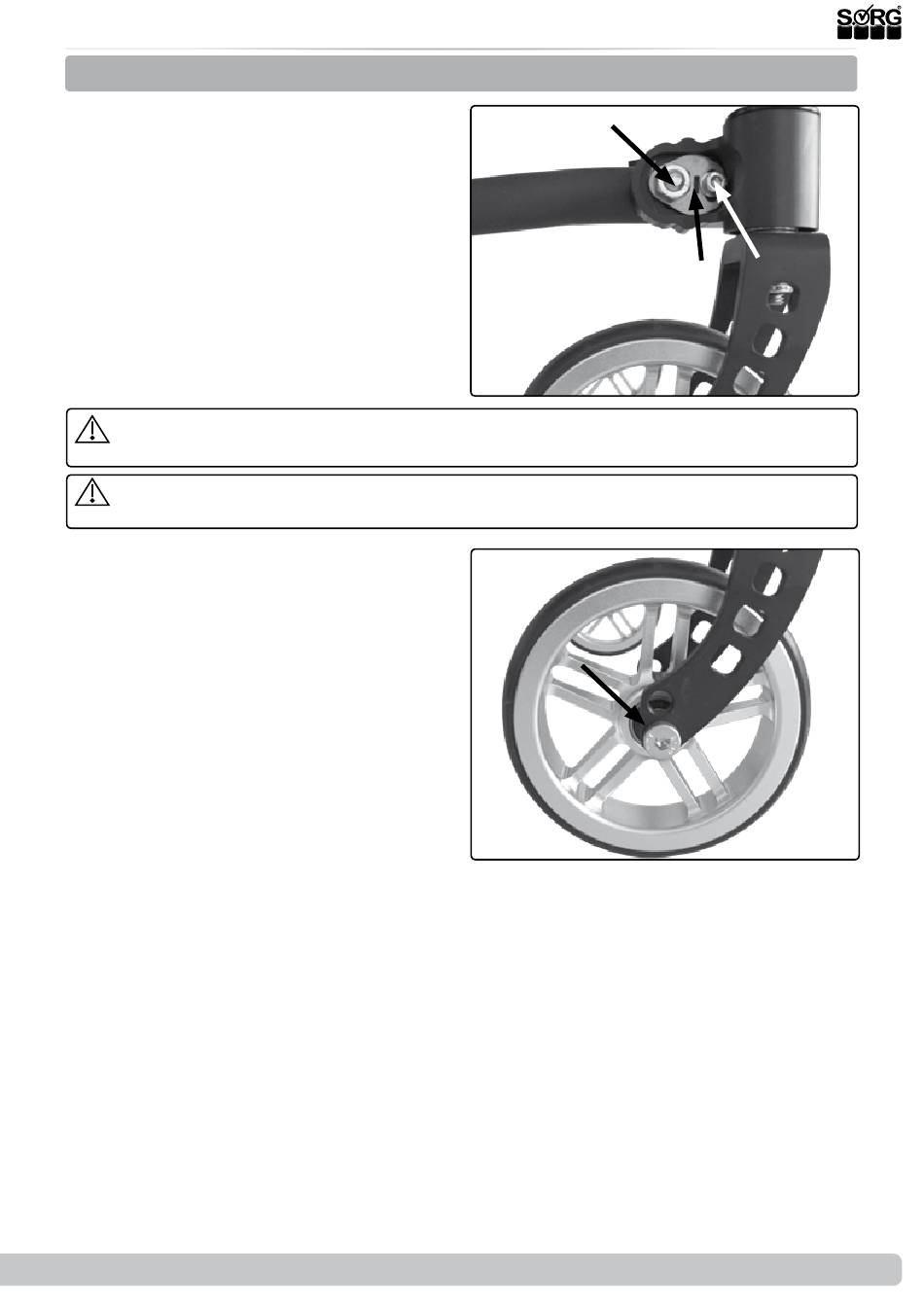

To adjust the caster adapter:
• (1) loosen the screw (A), also on the
frame inside, with which the adapter is
attached to the frame tube,
• loosen the screw (B),
• bring the adapters into an exactly verti-
cal position by turning the adjustment
disc (C) (with a flat-head screwdriver),
• check the position by applying an angle.
• Retighten all screws; Screws (A) with 9
Nm, screw (B) with 7 Nm
• After each change to the drive wheel,
the steering head inclination must be
readjusted.
Safety nuts may only be used once. Once loosened safety nuts must be replaced by new
ones.
An incorrect steering head inclination leads to cornering through the castor wheels to
disturbing and obstructive "ascent and descent".
To replace the caster:
• (2) loosen the screw (A) on both sides,
• remove the steering wheel,
• put the new steering wheel on the slee-
ves.
• Then set the appropriate distances for
the existing steering wheel fork steering
wheel combination
• and tighten the screws (A) again.
Depending on the size of the new steering
wheel, the steering wheel fork may need to be
replaced as well.
2019-07-16
(1)
(2)
Service Record Loop
SORG
(A)
(C)
(A)
RS
(B)
15 of 40
