3.5 Assembly Group Leg support

3.5.2 Leg supports: standard or angle adjustable

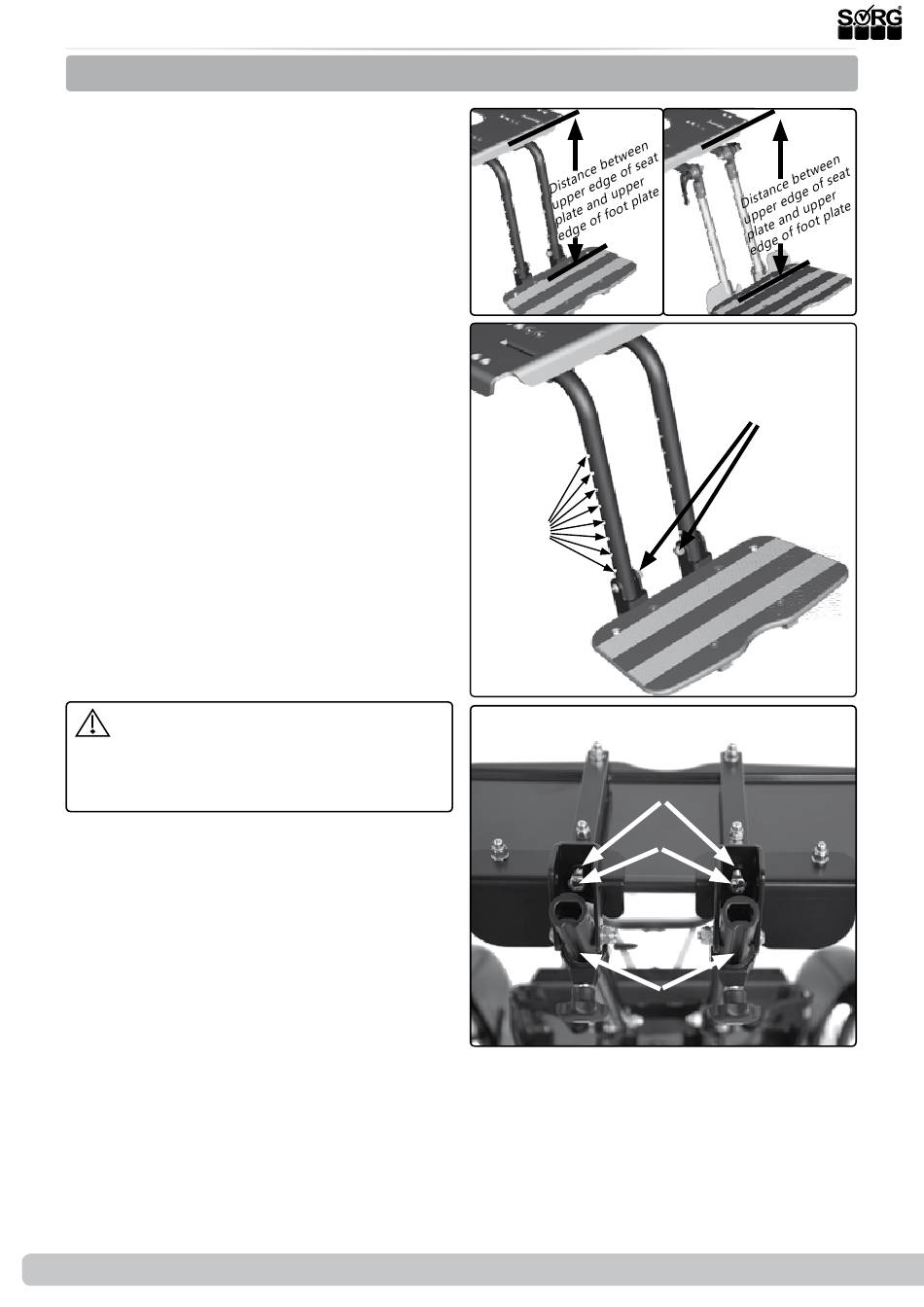

Setting distance between footrest and seat
board
The distance between top edge of the seat
board and the top edge of the footrest can be
adjusted in the same way by standard leg sup-
ports (1) continuous or divided and angle ad-
justable leg supports (2) continuous or divided:
(3) Remove both screws (A),
remove the footrest/s and
move the footrest/s along the holes (B)
in the new position/s.
Replace both screws (A) and tighten
them.
When it comes to a continuous footrest you
must move both connections of the footrest
parallel on the leg support.
Setting the stop angle of the footrest/s
(4) With both adjusting screws you can adjust
the stop angle of the footrest/s.
Flip the footrest/s back,
loosen the lock nut (A)
turn both adjusting screws (B) until you
have reached the wanted angle,
retighten the lock nut (A).
Both adjusting screws must fit close to
the tubes (C) when the footrest/s is/are in
use. Avoid an uneven fitting position of the
adjusting screws.
26 of 40
(1)
(3)
(B)
(4)
Service Record Loop
SORG
(2)
(A)
(B)
(C)
RS
(A)
2019-07-16
