3.3 Assembly Group Seat

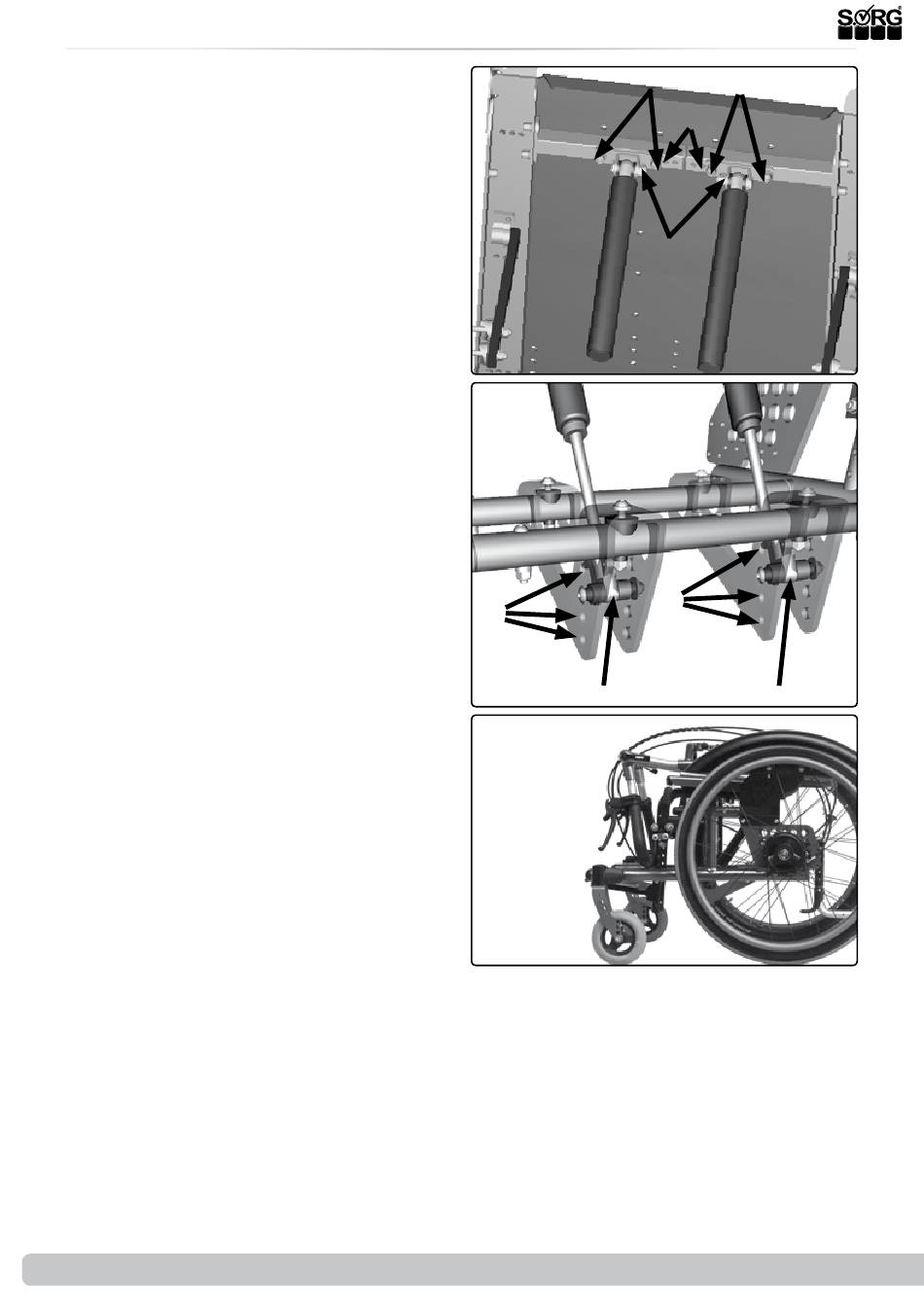

Both gas springs must be mounted in the
same mounting points of the receptacle.
Use the same mounting points as before.
Otherwise, you will reach another Kantelungs-
weg.
Step 9: Screw on the release lever again
•
Mount the new release lever for the gas
springs on the handlebar.
•
Step 10: Set up the maximum length of
the Bowden cable
•
Set the handlebar to its maximum sli-
ding height,
•
(3) fold the back of the
•
Loop
RS forward and around
SORG
•
In addition, push the push bar forward
toward the legrest (see illustration) to
get the maximum length for the Bow-
den cable.
•
Now guide the new Bowden cable from
the release lever over the seat to the
rear and then forward again under the
Loop
RS to the respective release
SORG
device of the gas pressure springs.
•
Fold the back of the Loop
a vertical position and
•
Cut the outer spouts of the two Bowden
cables to the required dimensions.
Step 11:
•
(3) Fold the back of the
•
Loop
RS back in one
SORG
•
vertical position
Step 12: Mount Bowden cables
•
(4) Mount the ends (A) of both inner
cables to the trigger mechanism of the
gas springs.
•
Thread the inner cables (B) first through
the adjusting screw (C), then through
the hole (D) of the clamping nipple (E).
•
Use one thumb to push the release le-
ver (A) slightly upwards in the direction
of the adjusting screw (C).
•
Close the clamping nipple (D) with the
release lever pushed upwards at the
same time.
•
(5) Shorten the protruding piece of
Bowden cable (A) only so far that you
can also readjust the release torque
with the clamping nipple if necessary.
Step 13:
•
Check the operation of the release me-
chanism and adjust the release torque
using the setscrew (5B) and locknut
(2C).
22 of 40
(1)
(2)
RS back to
SORG
(B)
(3)
Service Record Loop
(B)
(A)
(C)
(B)
(A)
RS
SORG
(B)
(A)
2019-07-16
