Leg Supports Which Swing To The Side - SORG Loop RS Service Record

3.5 Assembly Group Leg support

3.5.3 Leg supports which swing to the side

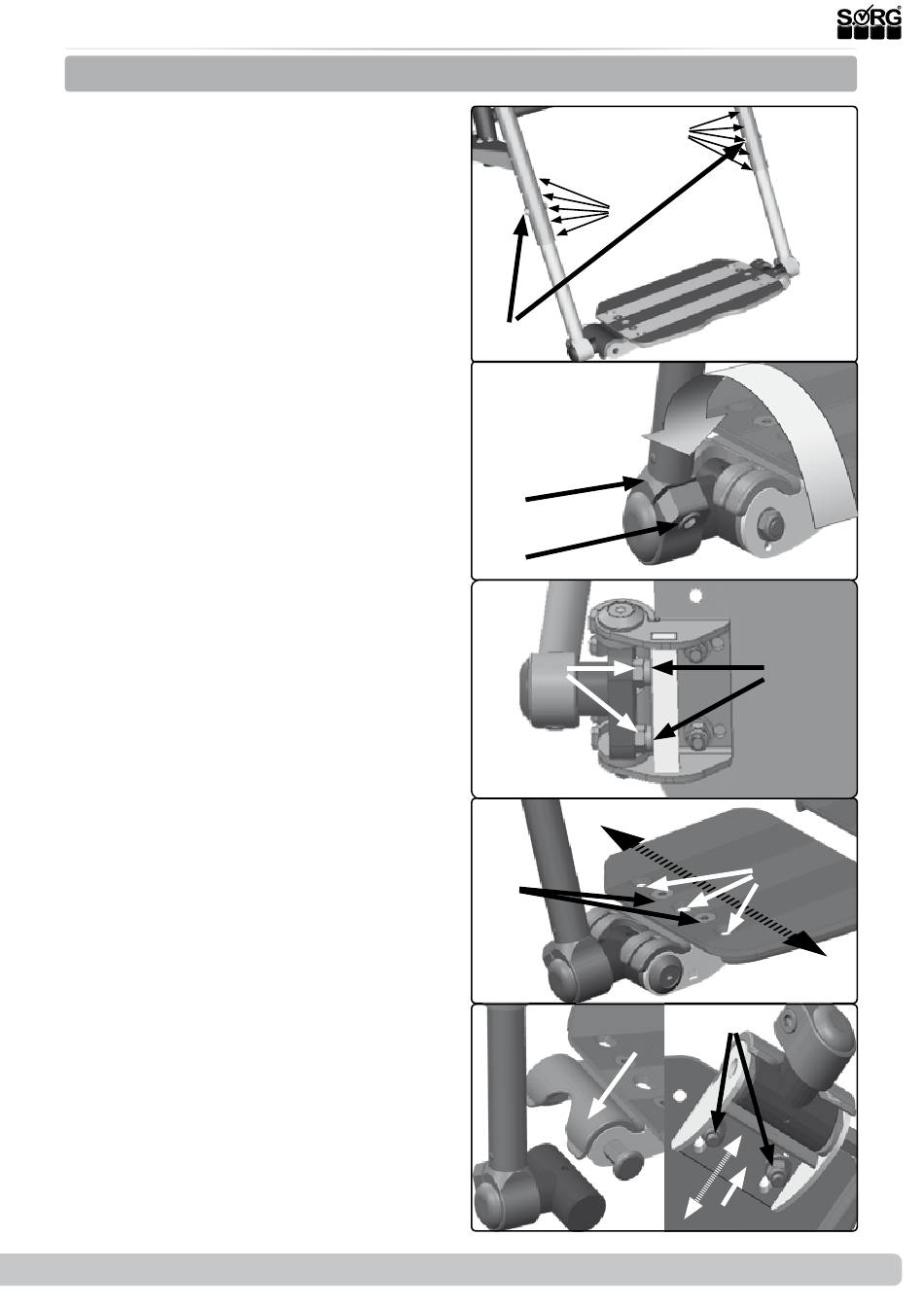

Setting distance between footrest and seat plate
• (1) Remove both screws (A),
• move the footrest/s and the alternative
holes (B),
• replace both screws (A) and tighten
them.
When it comes to a continuous footrest you
must move both connections of the footrest
parallel on the leg support.
Angle setting
• (2) If possible, close the footrest.
• Loosen the cylinder bolt (A) on both
sides until the clamp connection (B)
loosens,
• set wanted angle,
• retighten cylinder bolt (A).
Fine adjustment of the try square
• (3) loosen lock nut (A),
• turn the stop screw (B) in the wanted
position,
• retighten the lock nut (A).
Depth adjustment of the footrest/s
• (4) Remove the screws (A) on the foot-
rest/s,
• move the footrest/s in the holes (B) and
• retighten the screws.
Fine adjustment of the locking claw
• (5) To do fine adjustments on the locking
claw (A)
• loosen the nuts (B) on the bottom,
• move the holder (C) until the footrest
closes.
• Retighten the nuts.
