Double Gas Spring - SORG Loop RS Service Record

3.3 Assembly Group Seat

3.3.3 Double gas spring

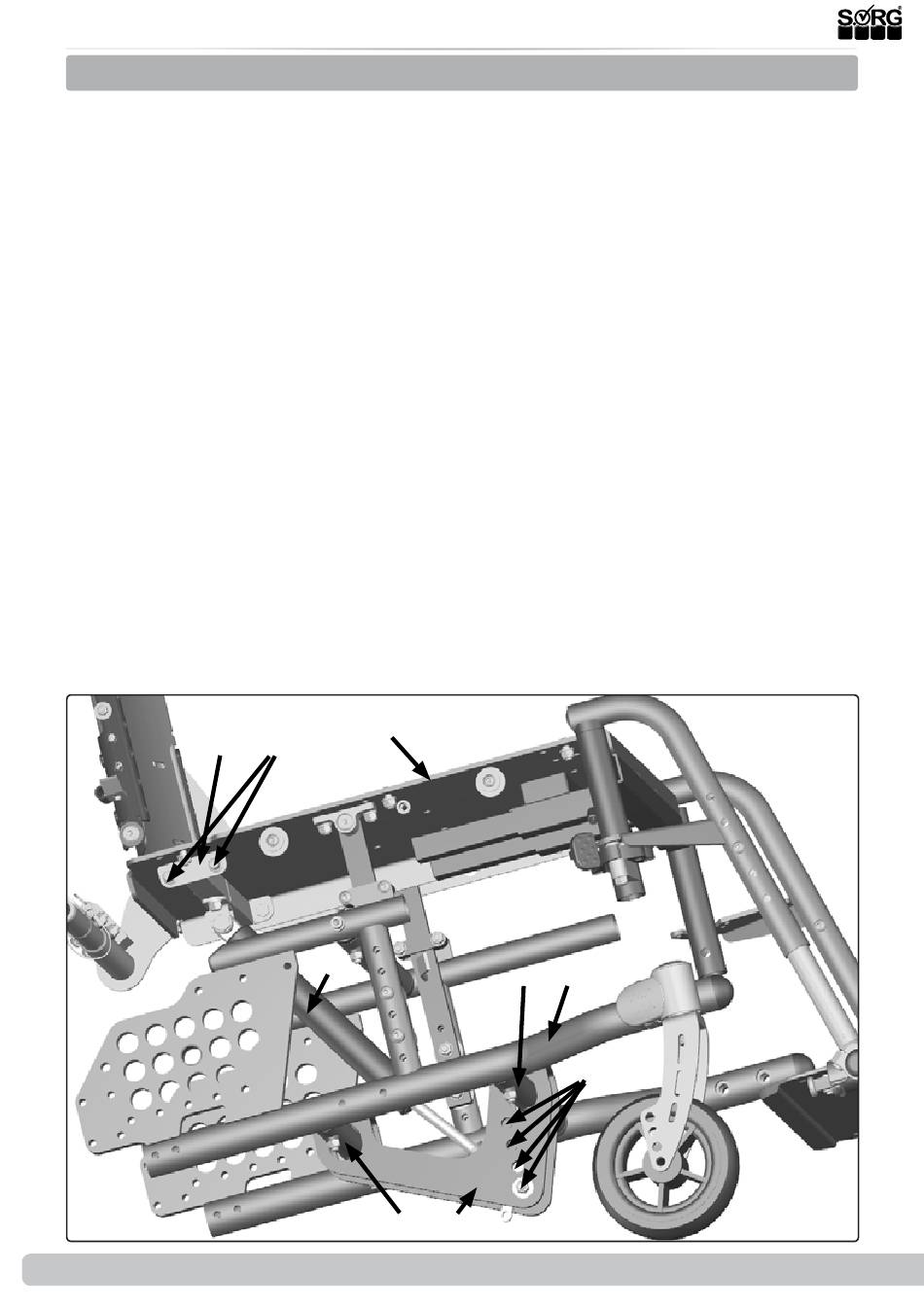

The components involved:
(1) (A) seat plate
(B) top adapter for gas spring
(C) top mounting points for gas spring
(D) bottom adapter for gas spring
(E) bottom mounting points for gas spring
(F) release lever for gas spring
(G) Bowden cables (with release lever
on the push bar)
(H) gas spring
(I) frame traverse
(J) frame half
An oversight of the individual steps to apply a
second gas spring in short form:
1. Remove control lever of the gas spring
and wedge adapter,
2. move the already available gas spring,
3. take off frame half,
4. attach new gas spring adapter,
5. put frame back together,
6. mount the top adapter under the seat
plate,
(1)
(B)
20 of 40
(A)
(C)
(F)
(G) (D)
Service Record Loop
7. attach new gas spring to the top adapt-
er,
8. attach new gas spring to the bottom
adapter,
9. mount the release lever for the double
gas spring on the bar,
10. determine the max. length of the new
Bowden cable and install it, cut the
Bowden cables,
11. bring the back of the Loop into an up-
right position,
12. mount the Bowden cable on the re-
spective release mechanism of both gas
springs,
13. fixate the traction of the release mech-
anisms,
14. if necessary, retighten wedge adapter,
15. test the tilting with max. strain and if
necessary, adjust.
(G)
(H)
(E)
RS
SORG
