SORG Loop RS Service Record page 14

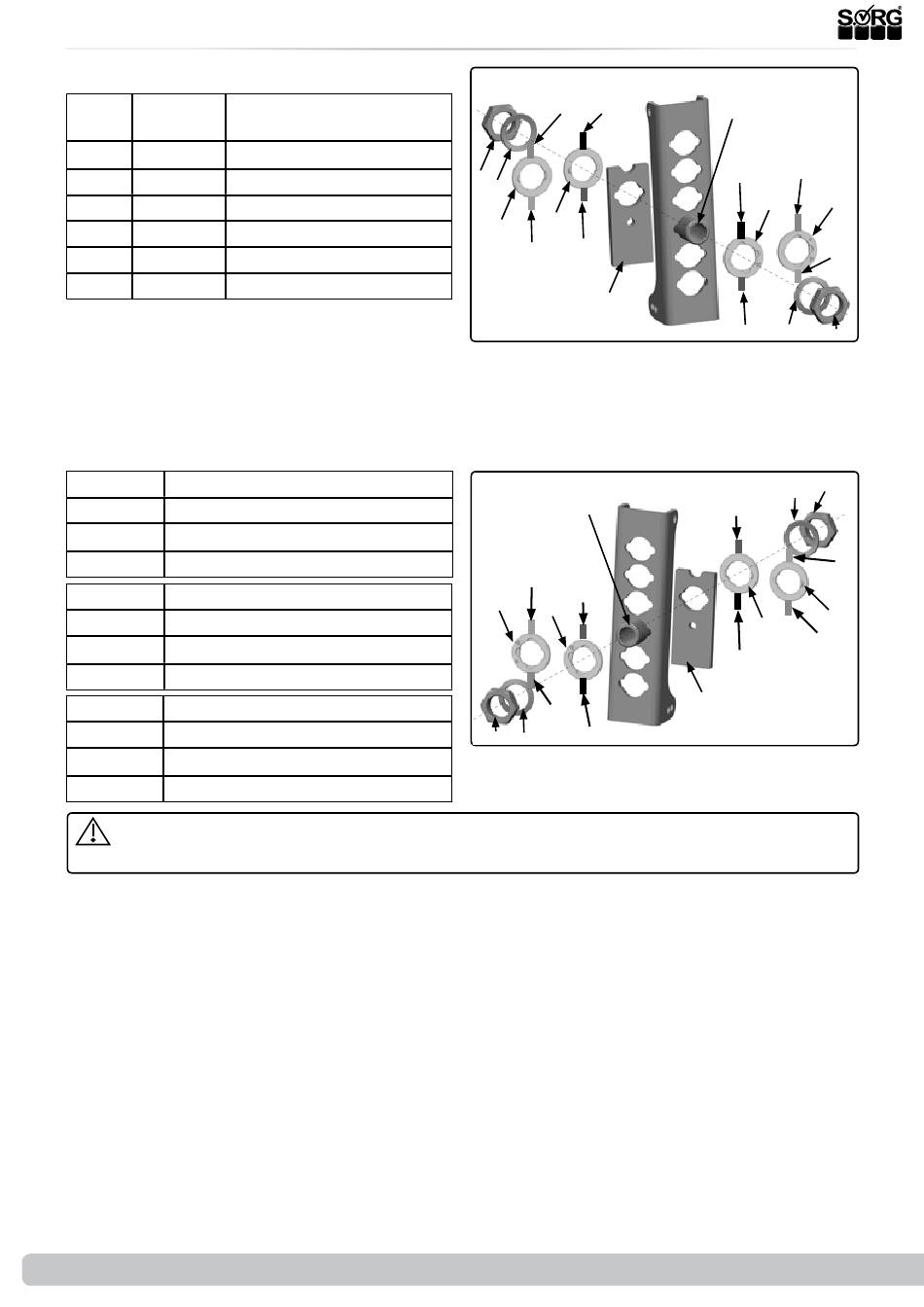

3.1 Assembly Group Wheels
(1+2) Assembly of track compensation:
pos.- count
nr.
1 1
2 1
3a 2
3b 2
4 2
5 2
For Vector and Jump beta 8 ° camber, as well as Jump alpha 5 ° and 8 ° camber, a spacer block
for wheelbase extension is required (spare part). Here, the toe is already integrated in the broa-
dening.
Which disc has to be used at which setting:
Camber Without seat tilt
0° without track disc
2° without track disc
4-8° without track disc
Camber Normal seat tilt (ca. 5°)
0° without track disc
2° without track disc
4-8° track disc with 0,5°
Camber Strong seat tilt
0° without track disc
2° track disc with 0,5°
4-8° track disc with 1°
For the steering and pushing aid, at least the 0.5 ° track disc must always be mounted
(except for a camber of 0 ° in which no track disc is used).
14 of 40
description
Screwed M18*1, d=12
reinforcement axle plate
fall-in-track disc 0,5°
fall-in-track disc 1,0°
locking washer S18
nut M18x1 SW24
Service Record Loop
(1)
Illustration shows the mounting on the right
blue black
0,5°
5
1°
4
3a
3b
green
red
2
(2)
Illustration shows the mounting on the left
1
red
green
3b
3a
1°
0,5°
blue
black
5
4
RS
SORG
1
blue
black
3b
3a
1°
0,5°
red
green
4
5
5
4
green
red
0,5°
1°
3b
3a
blue
black
2
2019-07-16
