Installing/Removing Modules - Siemens SIMATIC NET RUGGEDCOM RST2228P Installation Manual

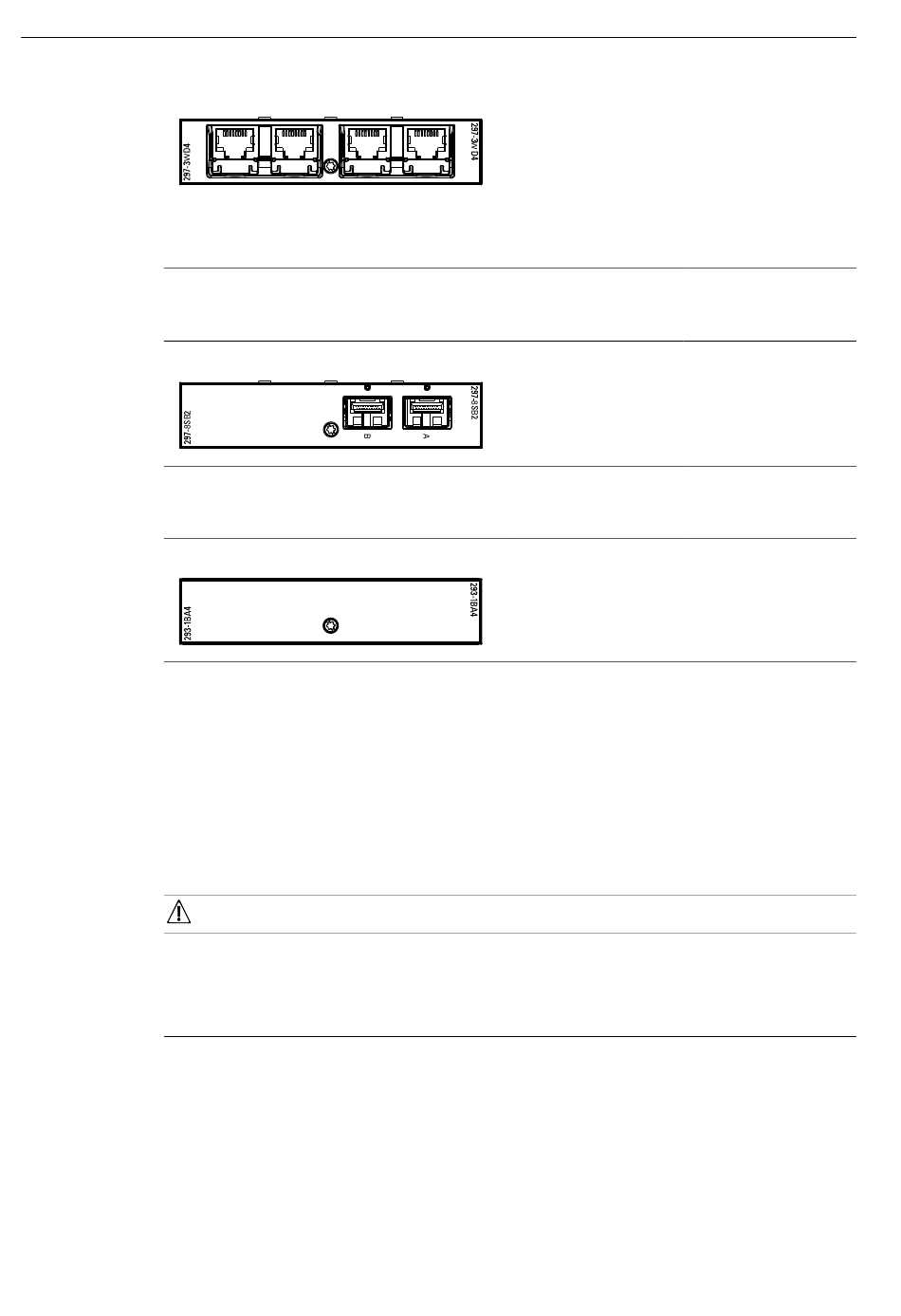

Network Redundancy Modules
RUGGEDCOM RMM2972-2RNA
Blank Modules
RUGGEDCOM RMM2931-4
4.4

Installing/Removing Modules

Upon installing a new media module in the device, all features associated with the
module are available in RUGGEDCOM RST2228P. For more information, refer to the
RUGGEDCOM ROS Configuration Manual for the RUGGEDCOM RST2228P.
Once a media module is removed, all the features associated with the module are
hidden or disabled in RUGGEDCOM RST2228P.
Contamination hazard – risk of equipment damage.
Prevent the ingress of water, dirts and other debris that may lead to premature
equipment failure. Always make sure slots are not left empty and open ports are
protected with plugs or covers.
Removing a Module
To remove a media module, do the following:
1.
RUGGEDCOM RST2228P
Installation Manual, 12/2019, C79000-G8976-1403-05
CAUTION
Make sure power to the device has been disconnected and wait approximately
two minutes for any remaining energy to dissipate.
Communication Ports
4.4 Installing/Removing Modules
Power per Port: 60 W
Power per Module: 120
W
Speed: 10/100/1000
Mbps
Interface: TX
Distance: 100 m (328 ft)
Specifications
SFP Sockets: 2
Speed: 100/1000 Mbps
Specifications
Blank module
6GK6297-3WD00-4AB1
(Conformal Coated)
Article Numbers
6GK6297-8SB00-2AAO
(Standard)
6GK6297-8SB00-2AA1
(Conformal Coated)
Article Numbers
6GK6293-1BA00-4AA0
33
