Introduction
1.2 Description
•
Key Features
Status Panel
4
Option 2
Status panel, alarm LED, ACO Button, CLP port and USB console port are located
on the rear panel.
5
6
1
2
3 4
Status Panel
1
ACO Button
2
CLP Port
3
USB Console Port
4
PoE Power and Failsafe Alarm Relay Terminal Block
5
Power Terminal Block
6
SFP/SFP+ Transceiver Sockets
7
Media Modules
8
Chassis Ground Terminal
9

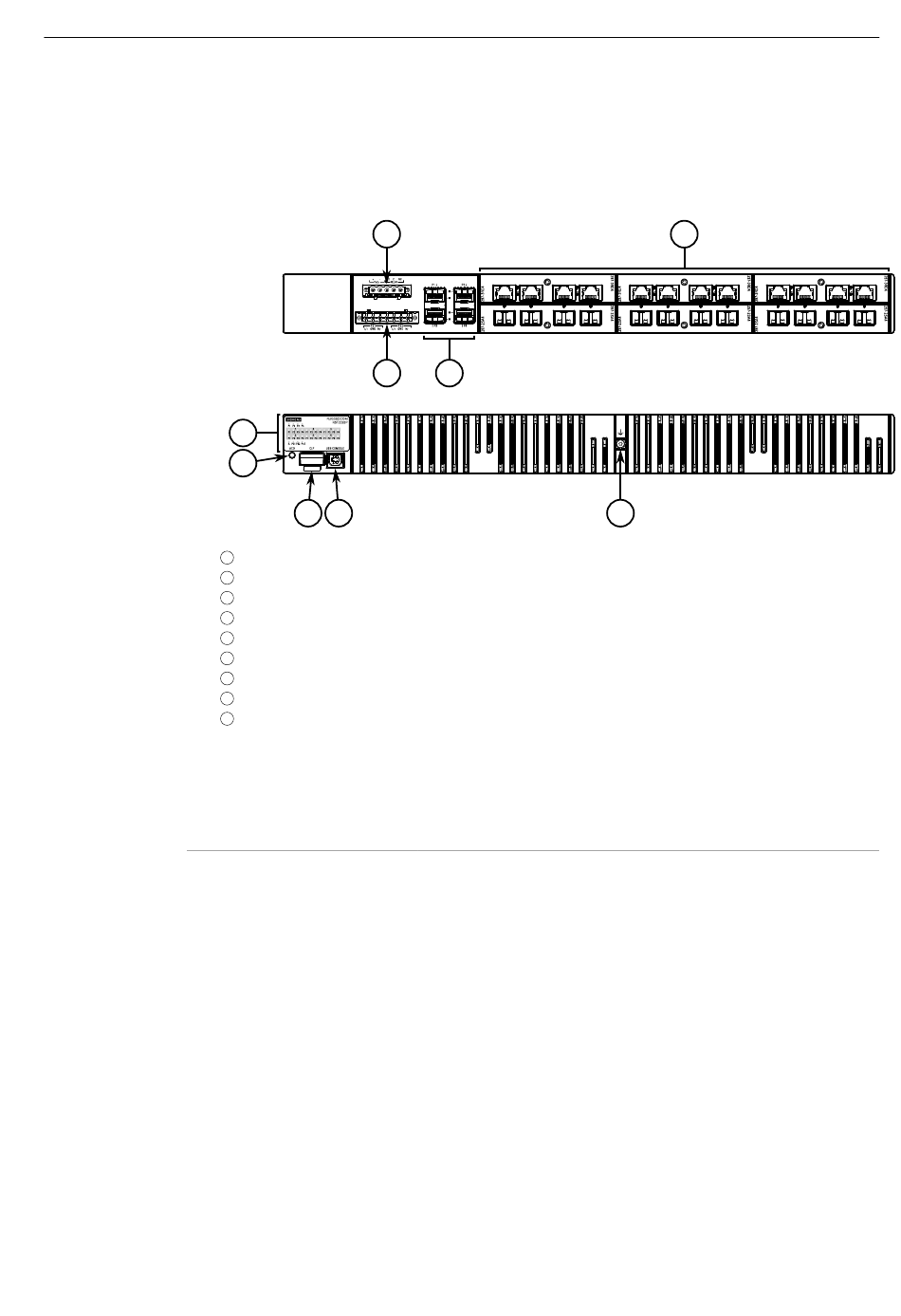

Figure 1.2 RUGGEDCOM RST2228P (Rear Panel Orientation)
7
The status panel displays the real-time status of the device.
Six module slot locators indicate the physical location of each media
module in relation to the available chassis slots. Module ports are
numbered from left to right when installed in the chassis. A dedicat-
ed LED is assigned to each module port.
8
9
