Installing the Device
2.5.1 Connecting High AC/DC Power
Electrical hazard – risk of damage to equipment.
Do not connect AC power cables to a DC power supply terminal block. Damage to
the power supply may occur.
Note
The screw-type terminal block is installed using Phillips screws and compression
plates, allowing either bare wire connections or crimped terminal lugs. Use #6 size
ring lugs for secure, reliable screws, which must be removed to make connections.
1.
16
CAUTION
Connect the power supply terminal block to the device.
1
Pluggable Terminal Block
1
Screw-Type Terminal Block
2

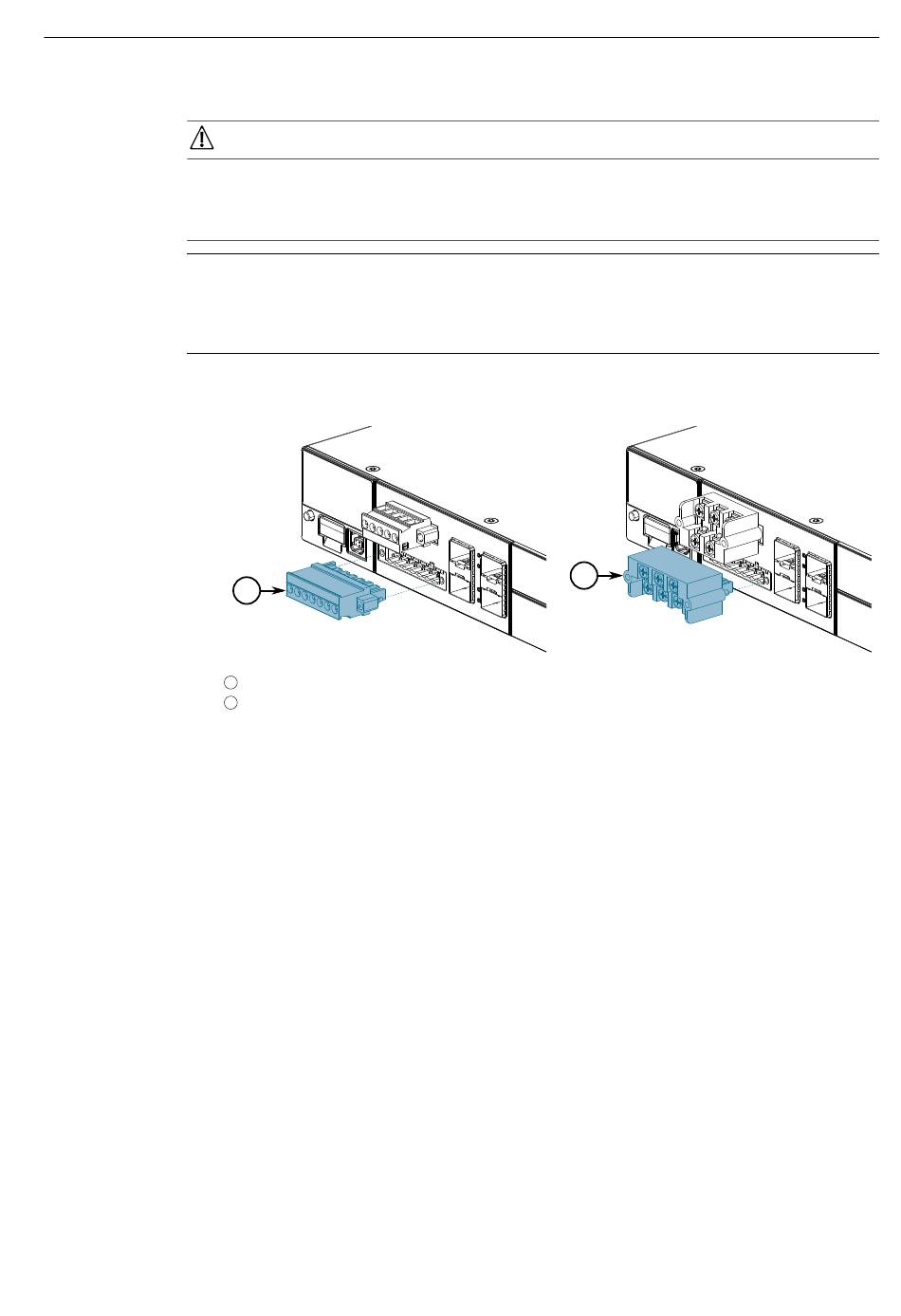

Figure 2.6 Assembling the Power Supply Terminal Block
2
