Communication Ports
4.3 Installing/Removing Modules

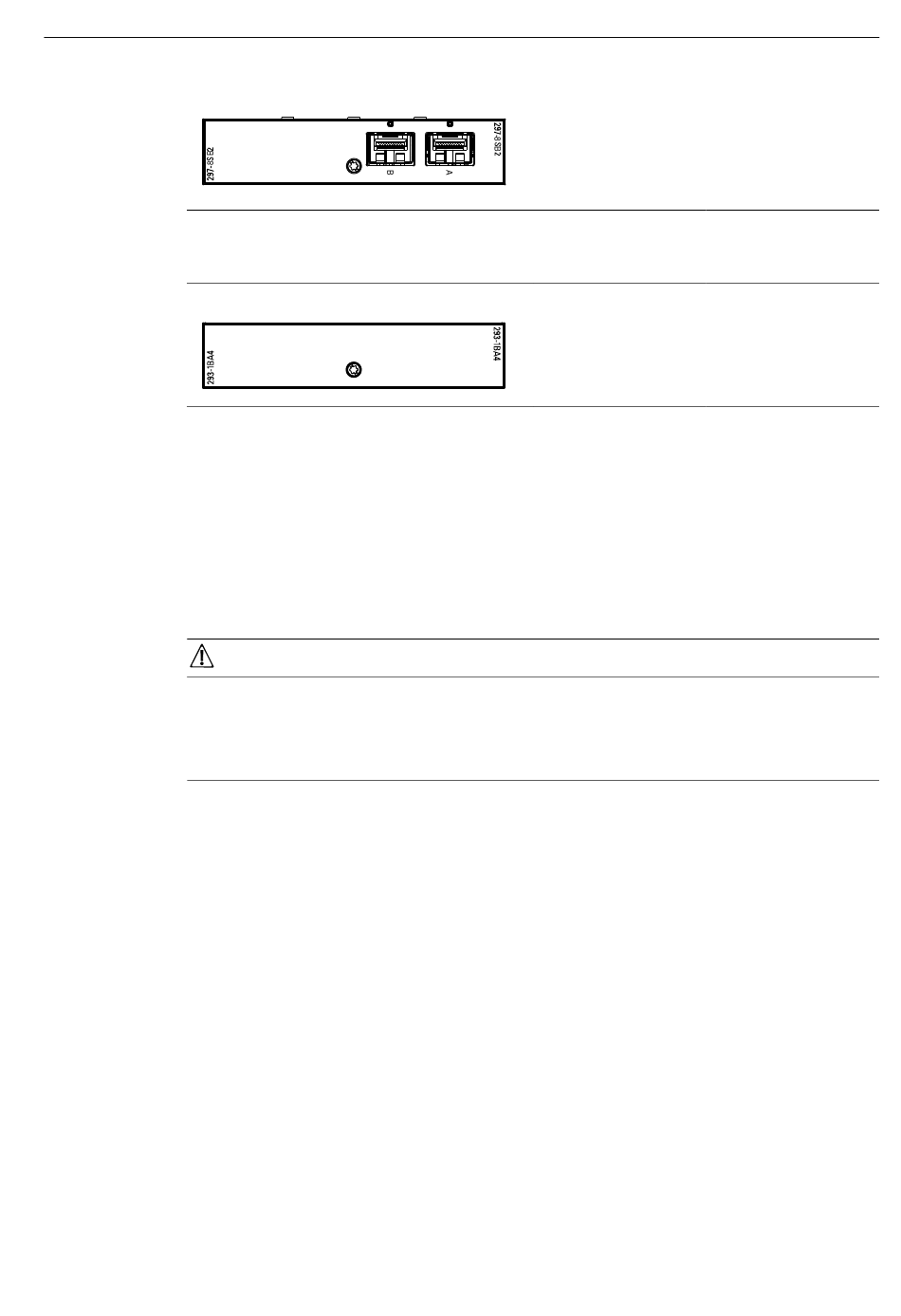

Blank Modules
RUGGEDCOM RMM2931-4
4.3

Installing/Removing Modules

Upon installing a new media module in the device, all features associated with
the module are available in RUGGEDCOM ROS. For more information, refer to the
RUGGEDCOM ROS Configuration Manual for the device.
Once a media module is removed, all the features associated with the module are
hidden or disabled in RUGGEDCOM ROS.
Contamination hazard – risk of equipment damage.
Prevent the ingress of water, dirts and other debris that may lead to premature
equipment failure. Always make sure slots are not left empty and open ports are
protected with plugs or covers.
Removing a Module
To remove a media module, do the following:
1.
2.
3.
32
CAUTION
Make sure power to the device has been disconnected and wait approximately
two minutes for any remaining energy to dissipate.
[Optional] If the device is installed in a rack, remove it from the rack.
Loosen the screw(s) that secure the module.
Speed: 100/1000 Mbps
Protocol: HSR-PRP
Specifications
Blank module
Installation Manual, 08/2020, C79000-G8976-1359-10
6GK6297-8SB00-2AAO
(Standard)
6GK6297-8SB00-2AA1
(Conformal Coated)
Article Numbers
6GK6293-1BA00-4AA0
RUGGEDCOM RST2228
