USB Console Port
Alarm Indicator LED
Removable Media
RUGGEDCOM RST2228P
Installation Manual, 12/2019, C79000-G8976-1403-05
1
2
4
5
7
LEDs for 10GBase SFP+ Transceivers (Slot 0)
1
Module Slot Locators
2
LEDs for Module Ports
3
Alarm Status LED
4
Power Supply Status LEDs
5
PoE Status LED
6
ACO Button
7

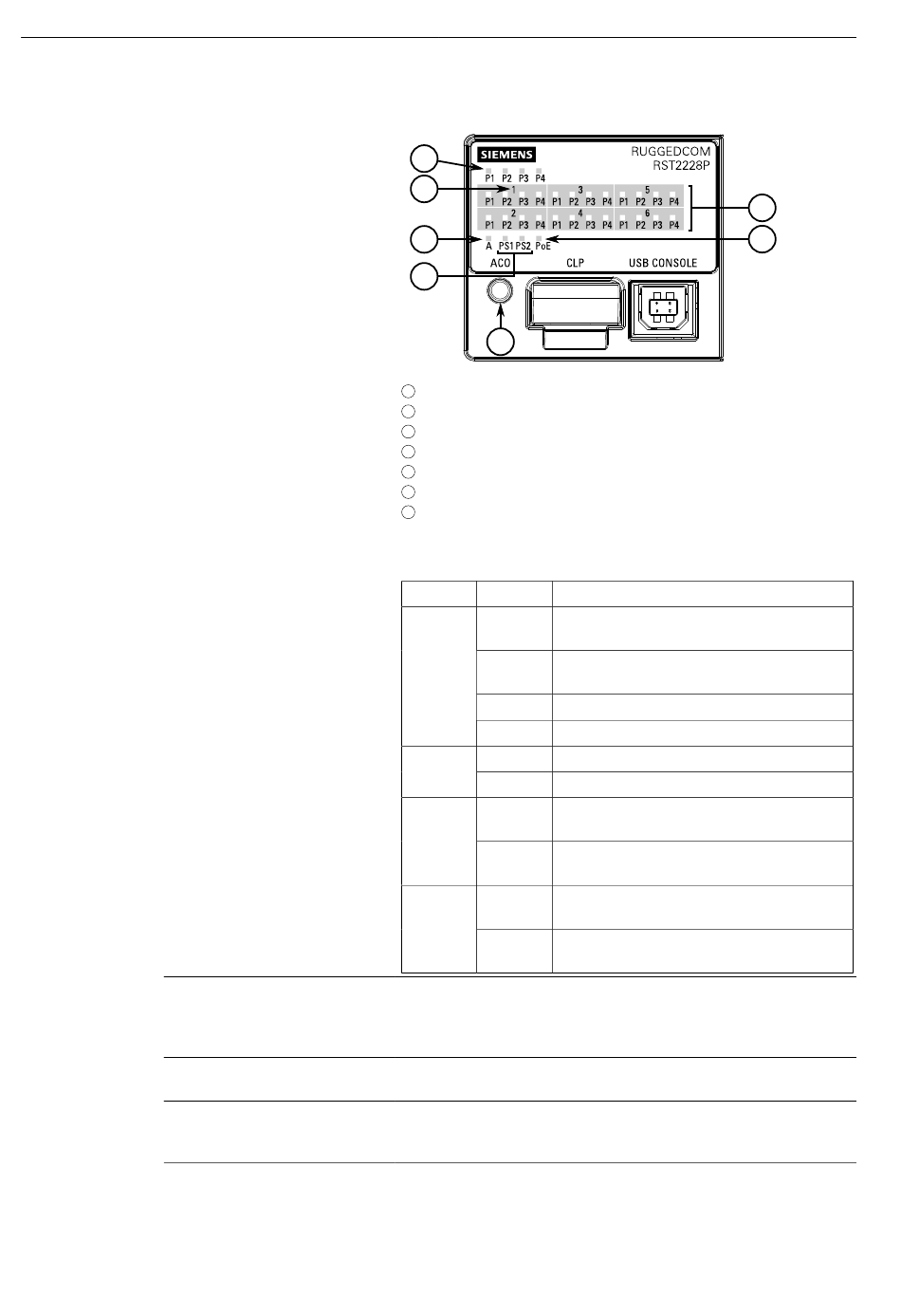

Figure 1.3 Status Panel
LED State
P{num- Solid Link detected
ber} (Green)
Solid Link detected and PoE established
(Yellow)
Blinking Link activity
Off No link detected
A Solid An alarm condition exists
Off No active alarm conditions exist
PS1/PS2 Solid The power source is supplying power to the
device
Off The power source is not supplying power to
the device
PoE Solid The PoE power source is supplying power
to the device
Off The PoE power source is not supplying
power to the device
The serial console port is for interfacing directly with the device and
accessing initial management functions. For information about con-
necting to the device via the serial console port, refer to
ing to the Device (Page 25)".
The alarm indicator LED illuminates when an alarm condition exists.
Pressing the Alarm Cut-Off (ACO) button clears the alarm(s).
The device features sockets for up to four SFP/SFP+ transceivers and
slots for up to six removable media modules. For more information,
refer to "Communication Ports (Page
Introduction
1.2 Description
3
6
Description
"Connect-
29)".
