NOTICE
Heat generated by the device is channeled outwards from the enclosure. As such, it
is recommended that 2.5 cm (1 in) of space be maintained on all open sides of the
device to allow for some convectional airflow.
Forced airflow is not required. However, any increase in airflow will result in a reduc-
tion of ambient temperature and improve the long-term reliability of all equipment
mounted in the rack space.
Note
For detailed dimensions of the device with either rack or panel hardware installed,
refer to
2.3.1

Mounting the Device to a Rack

The RUGGEDCOM RST2228P can be secured to a standard 48 cm (19 in) rack using
separately purchased rack mount adapters. The adapters can be installed at the front
or rear of the chassis.
Each adapter kit includes four adapters.
To secure the device to a rack, do the following:
1.
RUGGEDCOM RST2228P
Installation Manual, 12/2019, C79000-G8976-1403-05
"Dimension Drawings (Page
Secure the mounting adapters to both sides of the chassis.
Note
The chassis features multiple mounting holes, allowing the rack mount adapters
to be installed up to 25 mm (1 in) from the face of the device.
Mounting Adapter
1
Screw
2

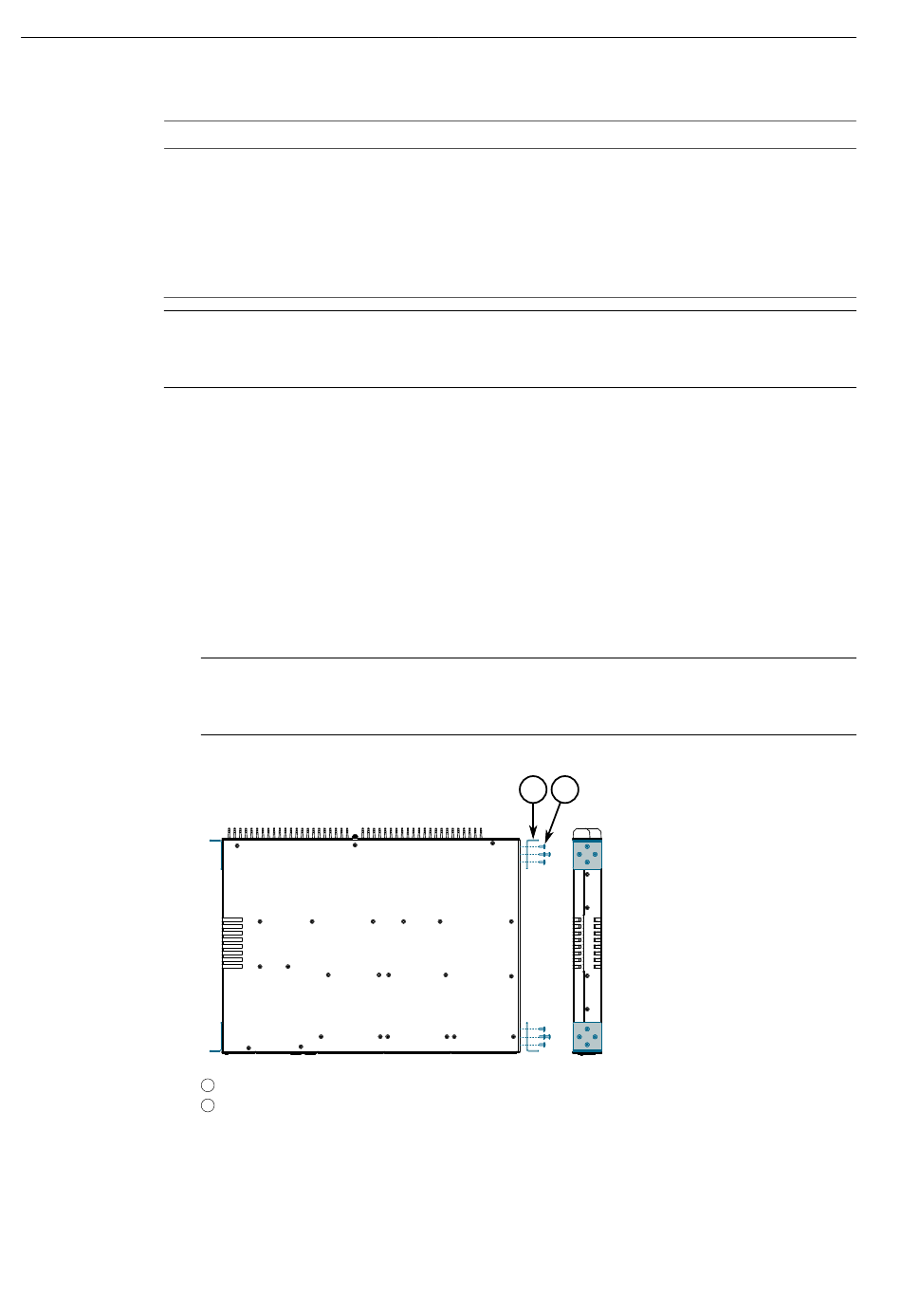

Figure 2.1 Installing the Mounting Adapters
2.3.1 Mounting the Device to a Rack
37)".
1 2
Installing the Device
11
