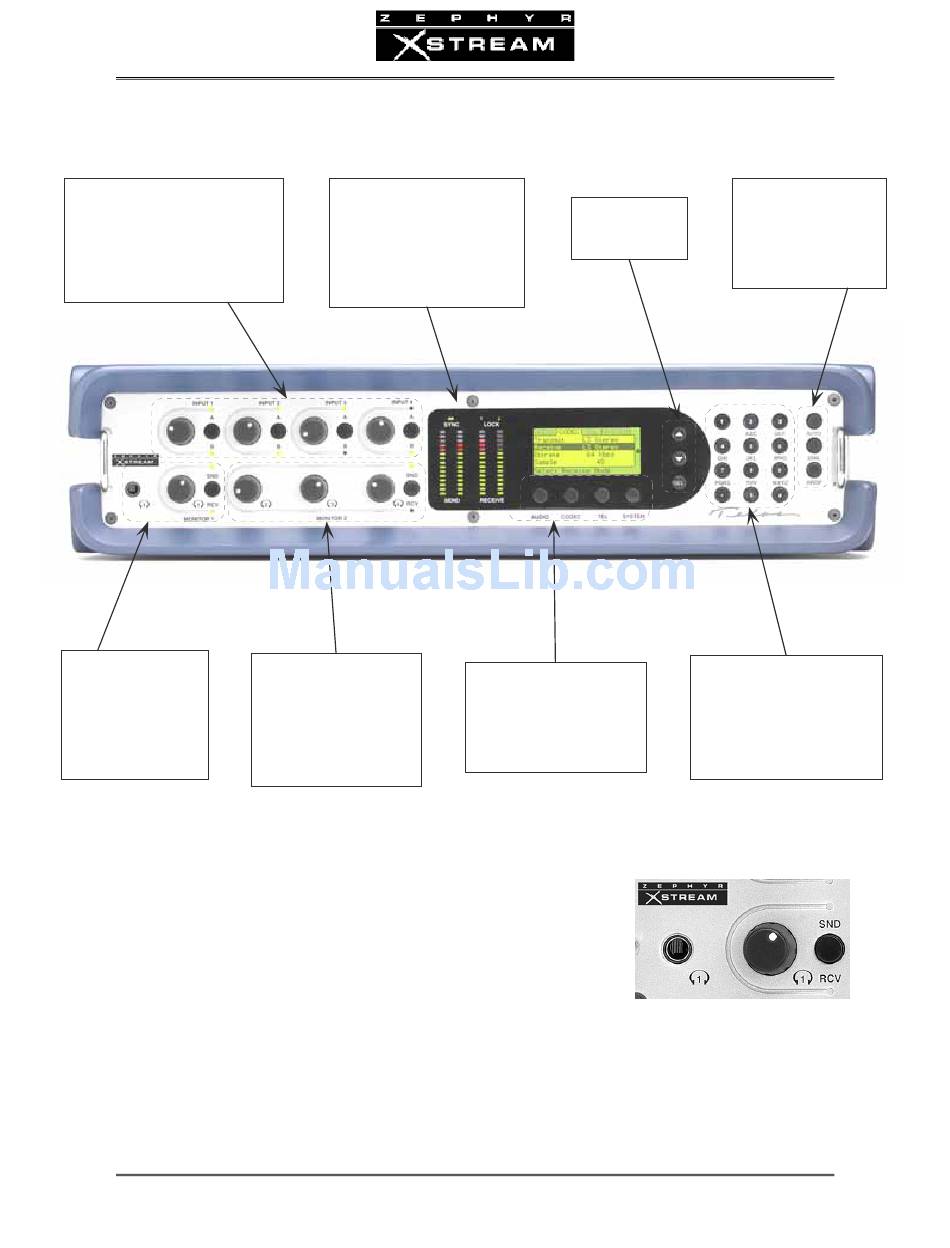

3.3 Zephyr Xstream MX/MXP Front Panel
4 Input Stereo Mixer
Feeds codec section directly. Each
Mic../Line Input panable Left/Right.
Inputs 1&2 support 48volt phantom
pow er. All controls, including flexible
limiter/processor accessed through
Audio Menu.
Local Monitor 1
Jack &
Volume Control
Can monitor send
audio, receive audio,
or any combination.
Set up from Audio Menu.
Local Monitor Mix 1 Jack & Volume Control
The front panel has a headphone jack near the left side. The
adjacent knob controls the level. The adjacent button allows you to
select if you wish to monitor Snd (send) audio, Rcv (receive) audio
or a mix of both. Repeatedly pressing this button will cycle
between the options. The sixth AUDIO menu allows you to set up
the send/receive and A/B balance for local monitor mix 1.
USER'S MANUAL
Input & Output Meters
Sync Light
Dual Lock Lights
Operator has ready access to
system operating information.
Metering for individual input
channels available in Audio Menu
Local Monitor 2
Volume Controls
Output on 3 headphone
jacks on rear panel
(each w ith separate volume
control) & on XLR balanced
line outputs.
Section 3: GUIDED TOUR of the HARDWARE 38
(Mixer versions)
Navigation
& Menu
Selection Keys
Fast Access
Menu Keys
One touch gives summary
information. Repeated presses
allow paging through the menu
options.
Auto Key
Allow s access to
stored DIAL & LOCATION
setups.
Dial & Drop Keys
Used for manual dialing
Numeric Keypad
Used to enter numerical &
text information. Used for dialing.
Generates DTMF tones for
navigation through voice-menu
systems on calls to voice
lines (G.711 calls)
