Telos Zephyr Xstream User Manual page 355

PIN
1
2
3
4
5
6
7
8

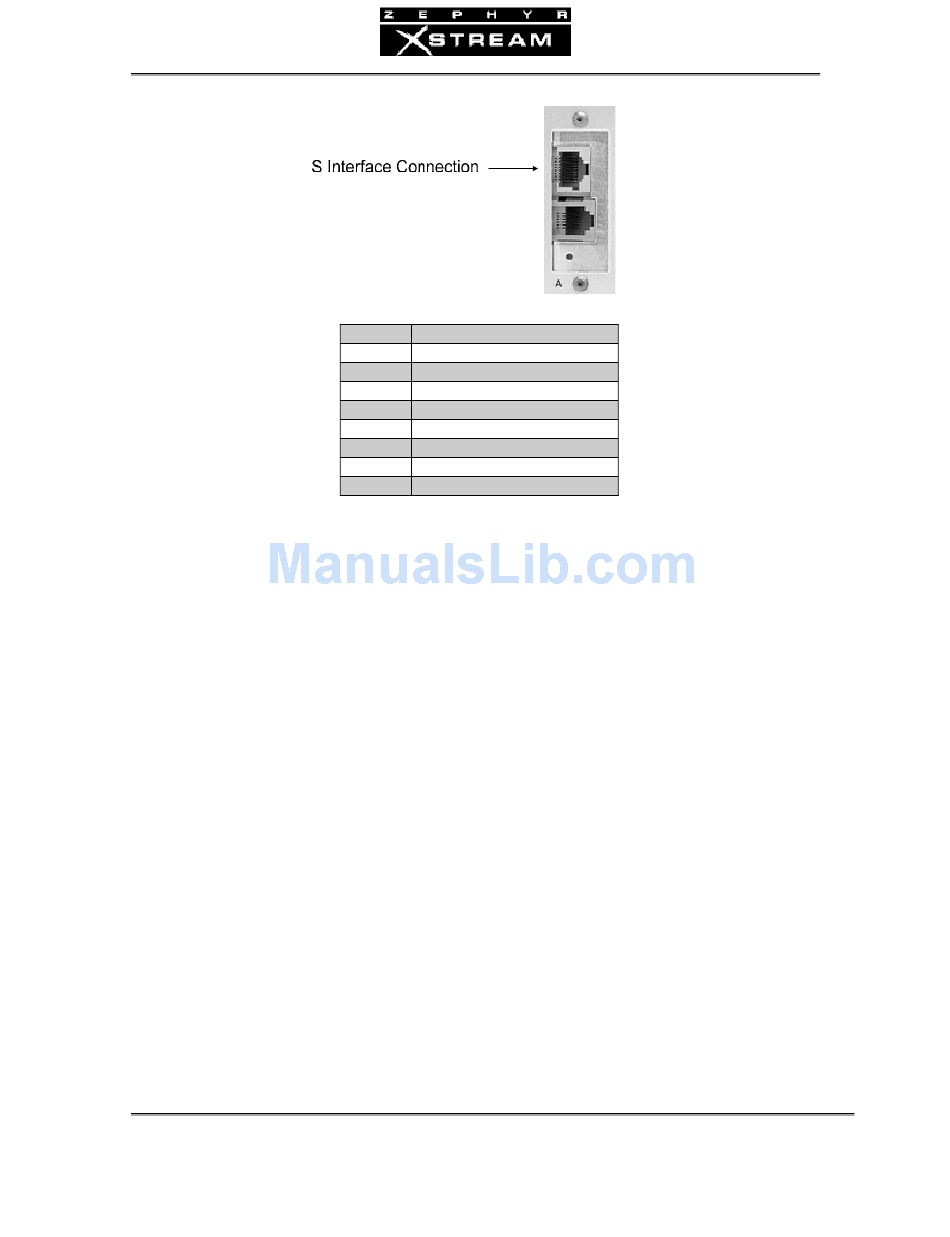

The S interface is a standard modular RJ‐45 style jack with the
pin‐out shown above.
USER'S MANUAL
FUNCTION
No Connection
No Connection
S Transmit to network +
S Receive from network +
S Receive from network -
S Transmit to network -
PS2 Power (- 48 VDC)
PS2 Power ground (+)
Appendix 9 – Modular Cable Guide 343
