  • Page 1 Zephyr Xport Field Audio Transceiver USER’S GUIDE Manual Version 1.0 for software version 1.0 and later 17 February, 2003...

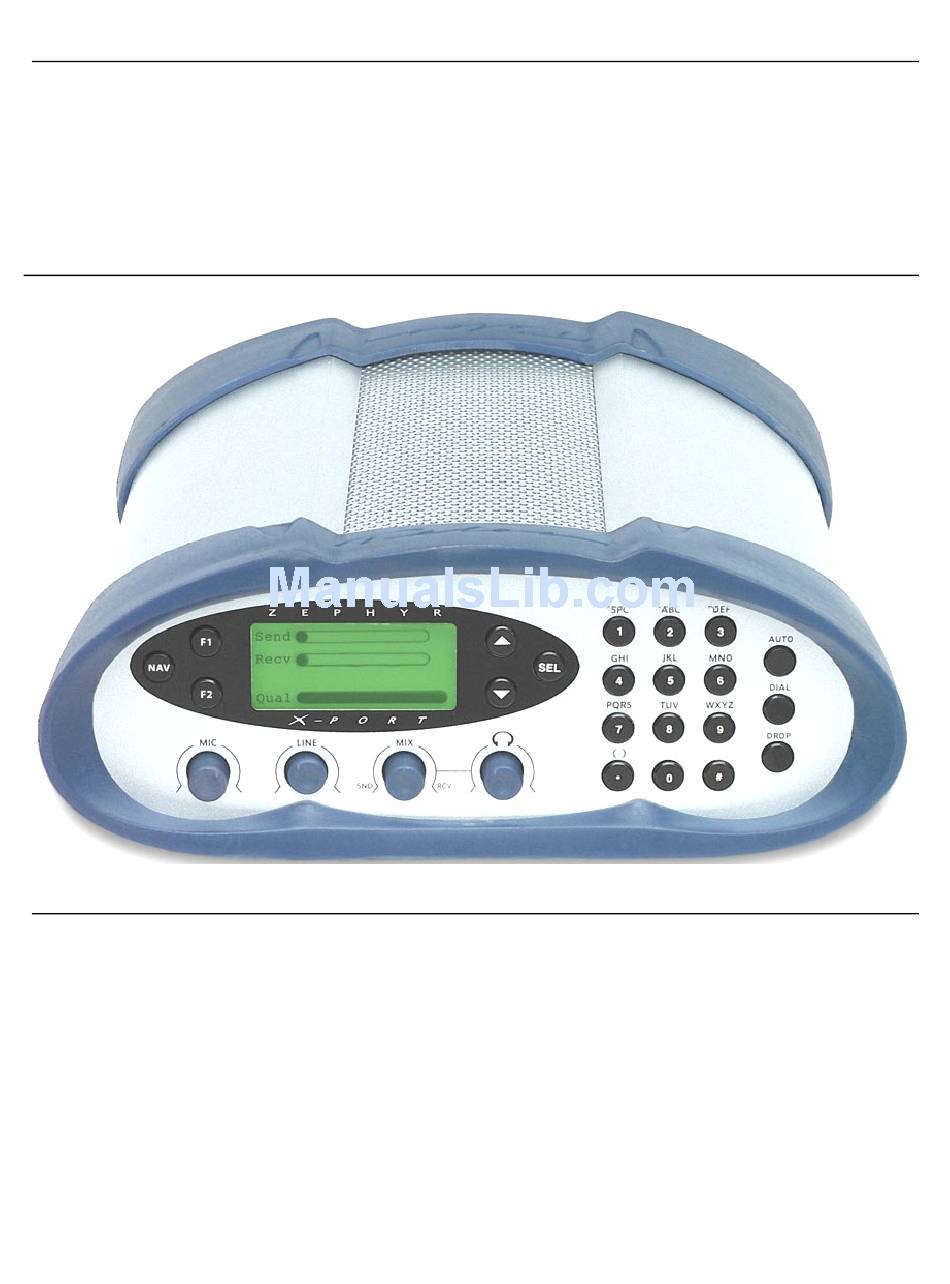

  • Page 2 The Xport's Front Panel NAV Key Allows for easy menu access. NAV also acts as an "escape" key when in a menu selection. Stowable Knobs Allow you to set it and forget it, preventing accidental Mixer Section Straightforward, easy to use mixer has Mic &...
  • Page 3 Zephyr Xport Field Audio Transceiver USER’S GUIDE Manual Version 1.0 for software version 1.0 and later 17 February, 2003...
  • Page 4 The URL is: http://www.telos- systems.com/support/default.htm. Feedback We welcome feedback on any aspect of the Telos Zephyr Xport or this manual. In the past, many good ideas from users have made their way into software revisions or new products. Please contact us with your comments.

  • Page 5: Important Note

    Our Telos electronic newsletter has announcements of major software updates for existing products, as well as keeping you up to date on the latest Telos and Omnia product releases. To subscribe go to: http://www.telos- systems.com/support/default.htm...

  • Page 6: Important Safety Information

    IMPORTANT SAFETY INFORMATION! If fuse replacement is required, please note: For continued protection against fire, replace fuse only with same type and value. CHAPTER 1 - INTRODUCING THE XPORT XPORT USER’S GUIDE XPORT , Telos Systems has the following...

  • Page 7: Safety Caution

    WARNING: ZEPHYR XPORT USES CONVECTION COOLING. DO NOT BLOCK THE VENTILATION OPENINGS IN THE TOP AND REAR OF THE UNIT. FAILURE TO ALLOW PROPER VENTIUALATION COULD DAMAGE THE UNIT OR CREATE A FIRE HAZARD. DO NOT PLACE THE UNIT ON A CARPET, BEDDING, OR OTHER MATERIALS THAT COULD INTERFERE WITH THE REAR PANEL VENTILATION OPENINGS.
  • Page 8 My guiding principle at Telos is to make the stuff I would have wanted for myself when I was in the CE game. So, here’s another one I sure could have used! It’s really cool when something like this one comes together so well.

  • Page 9: Table Of Contents

    Connecting to the Telephone Line ... 4 Powering Up... 5 Setting the Country ... 5 Mixer Adjustments... 6 Placing Your First Call, to Telos... 6 What have we here?... 8 Accessories ... 8 2.3.1 The front panel... 8 2.3.2 Frequently Used Menus; AUTO, DIAL, & DROP ... 12 2.3.3 The rear panel...
  • Page 10 POTS codec mode, the Zephyr Xstream at the far end must be using version 2.5.0p or later software. For information on updating the Zephyr Xstream see the Telos web site: www.telos- systems.com NOTE: When using ISDN, be sure to connect the ISDN line...

  • Page 11: Introducing The Zephyr

    1 Introducing the Zephyr ISDN makes for great sounding remotes, but you can’t always get ISDN where and when you XPORT want it. The lets you use ordinary analog telephone lines or ISDN in the field to connect with the Zephyr Xstream ISDN codec in your studio. The Xport features the highest fidelity low- bitrate coding method on Earth: MPEG AAC + the ground- breaking Spectral Band Replication enhancement: aacPlus).
  • Page 12 What are the specs? Warranty? Section 8 (Specifications and Warranty) covers this. Where can I find additional information not included in this guide? Section 7 (References) gives links to lots of additional information on the Telos website. CHAPTER 1 - INTRODUCING THE XPORT...

  • Page 13: Getting Oriented

    2.1 Quick Start This section will get you up and running quickly. We will use a microphone and headphones. We will place a call to the Telos test line so you can verify correct operation of the unit. HOT TIP! The Xport is intended to be used in conjunction with a Telos Zephyr Xstream back at the studio.

  • Page 14: Connecting The Audio Inputs/Outputs

    ZEPHYR • Promise to read the full manual later. Now, let’s get started. What you need before you start… To complete the following you will need: • XPORT Your Zephyr • A standard "RJ- 11 style" telephone cable (supplied with the •...

  • Page 15: Powering Up

    Connect the provided IEC power cable to the • Connect the other end of the IEC cable to your AC (mains) power outlet. The Zephyr Xport’s power input is universal, accepting anything from 100 to 240 Volt AC 50/60Hz. •...

  • Page 16: Mixer Adjustments

    Located less than a mile from the Rock ‘n’ Roll Hall of Fame, there is always something interesting playing on the Telos test line. Let’s call Cleveland. If you prefer, you can call our test line in Europe. That number is listed under “Test Lines” on page iii at the front of this manual.

  • Page 17: What's Next

    Put on your headphones and listen. You may adjust the relative volume of your local microphone audio and the audio from Telos by adjusting the MIX control on the Xport's front panel. Whether or not you have successfully connected, press the <DROP> button twice.

  • Page 18: What Have We Here

    Time for a guided tour of your Accessories A stand is available for the Xport to tip the unit up for easier viewing. Contact your Telos representative to order Telos Part # 1451- 00199- 001. A soft carry vase is also available. Request Telos Part # 2091- 00032 2.3.1 The front panel...
  • Page 19 ZEPHYR The Default Display This is the display you will see most of the time. It has bargraph meters for Send and Receive audio levels, a status line, and modem quality bargraphs for each direction. The Snd and Rcv modem quality bargraph meters indicate the quality of the connection moment- to- moment.
  • Page 20 < > button. IMPORTANT TIP! Like many devices using telephone keypads, the Zephyr Xport uses multiple presses of the various buttons of the keypad to enter all of the letters of the alphabet, as well as the digits 0 through 9. We will cover this in detail below.
  • Page 21 Press the <5> button repeatedly to erase any existing information. Type in the new Prefix number using the Zephyr Xport’s keypad. To place a 1 second pause in a dialing string, press <*> or <#> twice to enter a ","...

  • Page 22: Frequently Used Menus; Auto, Dial, & Drop

    The AUTO menu is used to enter or activate Dial Setups and Location Setups. The <AUTO> key allows access to Zephyr Xport’s 100 stored Dial Setups (#00 to #99). These can be accessed by pressing <AUTO>, entering two digits, and then pressing <AUTO>...

  • Page 23: The Rear Panel

    Phone Places a call to a standard telephone. DSP hybrid technology prevents send audio coloration due to leakage, however the audio quality will still be only 300 to 3.3 kHz telephone quality. If the ISDN interface and line are present at the time of bootup, the call will go over ISDN.
  • Page 24 XPORT ZEPHYR USER’S GUIDE TW O-INPUT MIXER ISDN SUPPORT Has microphone and line Optional ISDN S, or ISDN CONTACT level inputs S + U interfaces CLOSURES HEADPHONE RECEIVE DIRECT ETHERNET & MONITOR AUX INTERFACE OUTPUT For direct audio from OUTPUTS Allows connecting to Cellular a PC, control via a Unmixed output...

  • Page 25: The Details

    3 The Details By now your Xport should be up and running. In this section, we assume you have gotten to know your Xport by going through the Quick Start procedure and brief tour covered in Section 2 (Getting Started). In this section, we'll explain more about how the mixer works, cover more about using the Auto Dial function, as well as how to use a cell phone for transmission when a telephone line is not available.

  • Page 26: Isdn Interface (Optional)

    HOT TIP! The Xport uses the center pins of the 6- position miniature modular (RJ- 11 style) jack. In parts of Europe, we have seen the same type of jack using different pins. In order to get the best performance from your Xport on POTS lines, be sure to set the COUNTRY menu selection for the correct setting.

  • Page 27: Audio Connections & Mixer

    (What to do if…), or consult your Zephyr Xstream User's Manual for extensive tips for troubleshooting the problem. If you are not using the 2- wire "U" interface, you can disregard this LED. S INTERFACE (only active if option 1701-00135 or option 1701-00056 is present) This interface will only be active if you have one of the optional ISDN interfaces installed in your Xport.

  • Page 28: Audio Inputs

    3.2.1 Audio Inputs The Xport mixer has two analog audio inputs as follows: MIC INPUT This XLR female input will accept microphones with nominal output levels from - 53 to - 43 dBu. A Phantom Power source of 12 volts at 10 milliamps will power most Condenser microphones.

  • Page 29: The Aux Interface Connector

    For information on using the Xports contact closures see: http://www.telos- systems.com/xport 3.4 Setups The Xport supports two types of Setups. Dial Setups allow easy access to frequently dialed numbers.

  • Page 30: Dial Setups

    Activating a Dial Setup – Step by Step Before beginning, verify the Zephyr Xport is connected to the phone line and ready for use. If necessary, activate the appropriate Location Setup for the location (if you have just arrived there) now (see below).

  • Page 31: Location Setups

    ZEPHYR Entry" will be displayed. Press <SEL> to continue or press <5> and then <SEL> to escape without changing. Enter a name (see Section 2.3.1 for an example on how to select and enter information). Enter the telephone number to be dialed. Move the cursor to the word Save (using the <5>...
  • Page 32 Press <5> then <SEL> to reboot. Creating Location Setups – Set by Step If the location Setup will be for ISDN, configure and test the Zephyr Xport for the ISDN line to be used at this location (optional). You must make certain that these items are entered correctly in the setup: •...
  • Page 33 Editing Location Setups If the setup to be edited is for a location with ISDN, program the Zephyr Xport with the information ISDN line to be used at this location (see Section 3.4, below). Press the <AUTO> key. Choose the Location Setup to be edited.

  • Page 34: The Xport's Isdn Interface

    Move the cursor to the word Save (using <5> or <6>) and then press <SEL> to complete the editing process. 3.5 The Xport's ISDN interface Units with either of the ISDN interface options will display "Found ISDN card" shortly after startup. This is also displayed on the About screen. HOT TIP! When using an ISDN- equipped Xport on an analog (POTS) line you can force the unit into POTS mode by pressing <5>...

  • Page 35: Connecting Two Xports To The Same Isdn Circuit

    ISDN STATUS SCREEN When using ISDN, one of the following status words will be showed on the default screen. Ready: Line is initialized and is idle. If a SPID is required, and has been omitted, this could be displayed. Connected: Line is in use SPID Pending: If an external NT1 is used this may be displayed if it has not completely initialized.

  • Page 36: Sharing Isdn Worldwide

    Reboot both units. They should now function normally. 3.7 Cell Phone Interfacing (the Aux Audio Interface) For maximum flexibility, your Zephyr Xport can be used as a mixer to establish connections through a cellular telephone (handset). The audio quality will be dependant on the type of cellular system used, and will be comparable to any other cellular call using the system in question.

  • Page 37: Connecting The Cell Phone To The Xport

    Telos Soundcard Emulator Telos Soundcard Emulator is Microsoft Windows 98/NT/2000/XP compatible soundcard driver. It enables you to connect you PC to Zephyr Xport using Ethernet to make all digital audio path from you PC playback application to the codec. Installation Run tlsse101.exe software...
  • Page 38 “Sounds And Media” applet in Control Panel (see below). Once you get to device selection choose “Telos Audio out 01” for Xport audio. Picture on the right is an example of Winamp’s waveOut plug- in configuration.

  • Page 39: Remote Control

    One everything is configured, simply type "http://123.345.567.789" (use the Xport's IP address here) into your browser to connect to the Xport. You will be prompted for a password. The default password is "Telos" (this is case sensitive). We've tested Xport with the following browsers: ???

  • Page 40: Frequently Asked Questions

    ZEPHYR 4 Frequently Asked Questions We cover general questions about the Xport and the technology involved here. If you have questions related to operational issues, or need to troubleshoot a problem, see Section 5 (What to do if…). Is Xport a “POTS codec”? Yes and no.
  • Page 41 ZEPHYR Is there anything I need to know about using ISDN for this application? Nothing special. The telephone network automatically translates the signals on the analog line to the digital form (called "G.711") carried over ISDN. The ISDN line must be configured to allow this type of call (called Circuit Switched Voice or "CSD").
  • Page 42 Because the Xstream has an Ethernet port, it may be upgraded over the Internet, without changing any parts or sending it to Telos. You may do so for free. Or, you may choose to upgrade by replacing a memory SIMM or by sending the unit to us. In these cases, there will be a modest charge.
  • Page 43 Omnia has been making a streaming audio dynamics processor for some time, which was designed in partnership with the Telos codec guys to sound good with coded audio. So it really was natural to get some of this Omnia work back into Telos products – hence the integration into Xport.

  • Page 44: What To Do If

    5 What to do if… Sadly, the world is not perfect. We all know this, but that knowledge does not help us when unexpected problems happen right before the "big broadcast". This section should help when things won't work. When dialing using POTS the status goes to “off hook” and then immediately back to “on hook”. What should I do? Check the following: Is this really an analog phone line? If it was connected to a phone with more than two lines, or had...
  • Page 45 active line present). When using POTS you can speed boot time by pressing <5> and <6> simultaneously when the "Found ISDN card" message is displayed. I can’t find the ISDN setup menu. The ISDN circuit should be connected to the Xport before you power the unit up, or it will boot into POTS mode.
  • Page 46 In this case use the <#> or <*> key to enter the <,> character (pause) when dialing. Can the Xstream and Xport in question call the Telos Test line? I can’t place a call using ISDN in Zephyr mode.
  • Page 47 When placing ISDN “Zephyr mode” calls between Xstream and my Xport, I get no audio or lock. Zephyr mode calls from Xport require that the Xstream’s codec settings be configured as follows: Xmt = AAC-LD mono 64; Rcv = AAC-LD 64; Bit rate 56 or 64; Sample = 48 kHz I can’t place or receive calls using ISDN.

  • Page 48: Technical & Installation Information

    Telephone Lightning Protection The single biggest source of failures of Telecom equipment is due to damage related to lightning. CHAPTER 6 - T ECHNICAL & INSTALLATION IFNORMATION XPORT USER’S GUIDE www.telos- systems.com for additional information on AC...

  • Page 49: Installing The Isdn Option

    (mains) power protection (see above), that a quality telephone line surge protector be employed at the back panel of the Zephyr Xport. The ground terminal of this device should be connected directly to the Zephyr Xport chassis, and the protector connected to the Xstream’s ISDN and/or POTS Interface jack with as short a cable as possible (under 8 inches).
  • Page 50 ZEPHYR Note the standoff near JP 11 and headers JP6, JP7, and JP12 et al. Remove the screw (and washer) from the standoff. Plug in and fasten the ISDN card in as follows (see below): • Orient the Xport circuit board so that the rear panel is to your left.

  • Page 51: Enabling Phantom Power

    6.3 Enabling Phantom Power IMPORTANT! Always disconnect AC (mains) power and Telephone Circuits before removing the Zephyr Xport’s cover. Potentially lethal voltages are inside! Failure to observe the above warning may result in electric shock, injury or even death! Refer all servicing to qualified personnel.

  • Page 52: Specifications & Warranty

    7 Specifications & Warranty All specifications subject to change without notice GENERAL • Full Duplex field terminal supports analog (POTS) telephone lines and ISDN circuits (optional). • Full duplex high fidelity operation using aacPlus coding. • Fallback to digital adaptive hybrid mode if line is unable to support reliable data connections.

  • Page 53: Headphone Output

    • Dynamic Range • No Decoder Lock: 94 dB • Encoder/Decoder loopback: 91 dB • THD (Line input, 100 Hz to 10 kHz @ +4 dBu): 0.05% HEADPHONE OUTPUT • Level (level control @ maximum and nominal input level at line input): ~ 103 dBa SPL MONITOR MIX OUT (Floating Balanced ¼”...

  • Page 54: Zephyr Xport Limited Warranty

    Telos Systems, 2101 Superior Avenue, Cleveland, Ohio 44114. Telos Systems at its option will either repair or replace the Product and such action shall be the full extent of Telos Systems’ obligation under this Warranty. After the Product is repaired or replaced, Telos Systems will return it to the party that sent the Product and Telos Systems will pay for the cost of shipping.

  • Page 55: References

    Our Telos electronic newsletter has announcements of major software updates for existing products, as well as keeping you up to date on the latest Telos and Omnia product releases. To subscribe go to: http://www.telos- systems.com/support/default.htm...

  • Page 56: White Papers

    Information on AAC, AAC-LD and CT-aacPlus • http://www.telos- systems.com/techtalk/aac/default.htm • http://www.telos- systems.com/techtalk/aacpaper_2/default.htm A Plain English Explanation of ISDN • http://www.telos- systems.com/techtalk/isdn/default.htm ISDN Cause Codes (for troubleshooting) • http://www.telos- systems.com/techtalk/cause.htm ISDN and Telephone Glossary • http://www.telos- systems.com/techtalk/isdngl.htm White Papers • Troubleshooting the Public Switched Telephone Network –...
  • Page 57 The Xport's Rear Panel ISDN SUPPORT Optional ISDN S, or ISDN S + U interfaces RECEIVE DIRECT ETHERNET OUTPUT For direct audio from a PC, control via a Unmixed output web browser, & easy contains far-end updates. audio only. Mic. Line Input Input...
