5.3. VSD 6010 Profile

5.3.1. Introduction

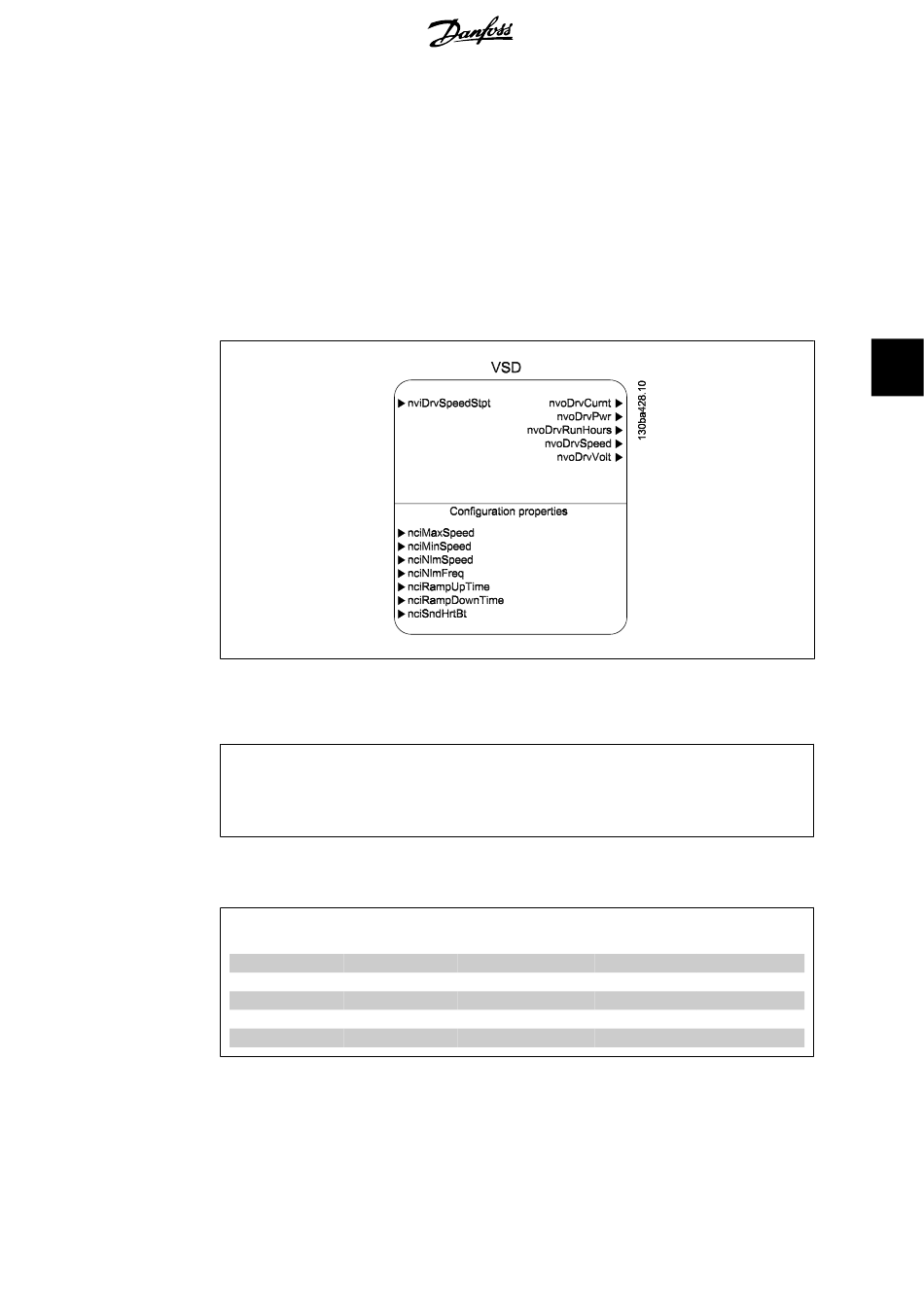

Variable Speed Drive 6010
The
It describes how to control a variable speed frequency converter.
For example, an air handling unit controller that sends messages to facilitate control of the start/
stop and speed reference of the VSD. The VSD will deliver messages such as the actual frequency
converter speed and output current to the controller, operating interfaces and energy manage-
ment systems.
5.3.2. Input Variables
Variable function
Drive speed setpoint nviDrvSpeedStpt
5.3.3. Output Variables
Variable func-
tion
Drive speed
Output current
Output voltage
Output power
Running hours
profile is a LonMark standardized functional profile.
Variable name
Variable name SNVT type
nvoDrvSpeed SNVT_lev_percent
nvoDrvCurnt SNVT_amp
nvoDrvVolt SNVT_volt
nvoDrvPwr SNVT_power_kilo
nvoDrvRunHours SNVT_time_hour
