VLT® FC 100 LonWorks

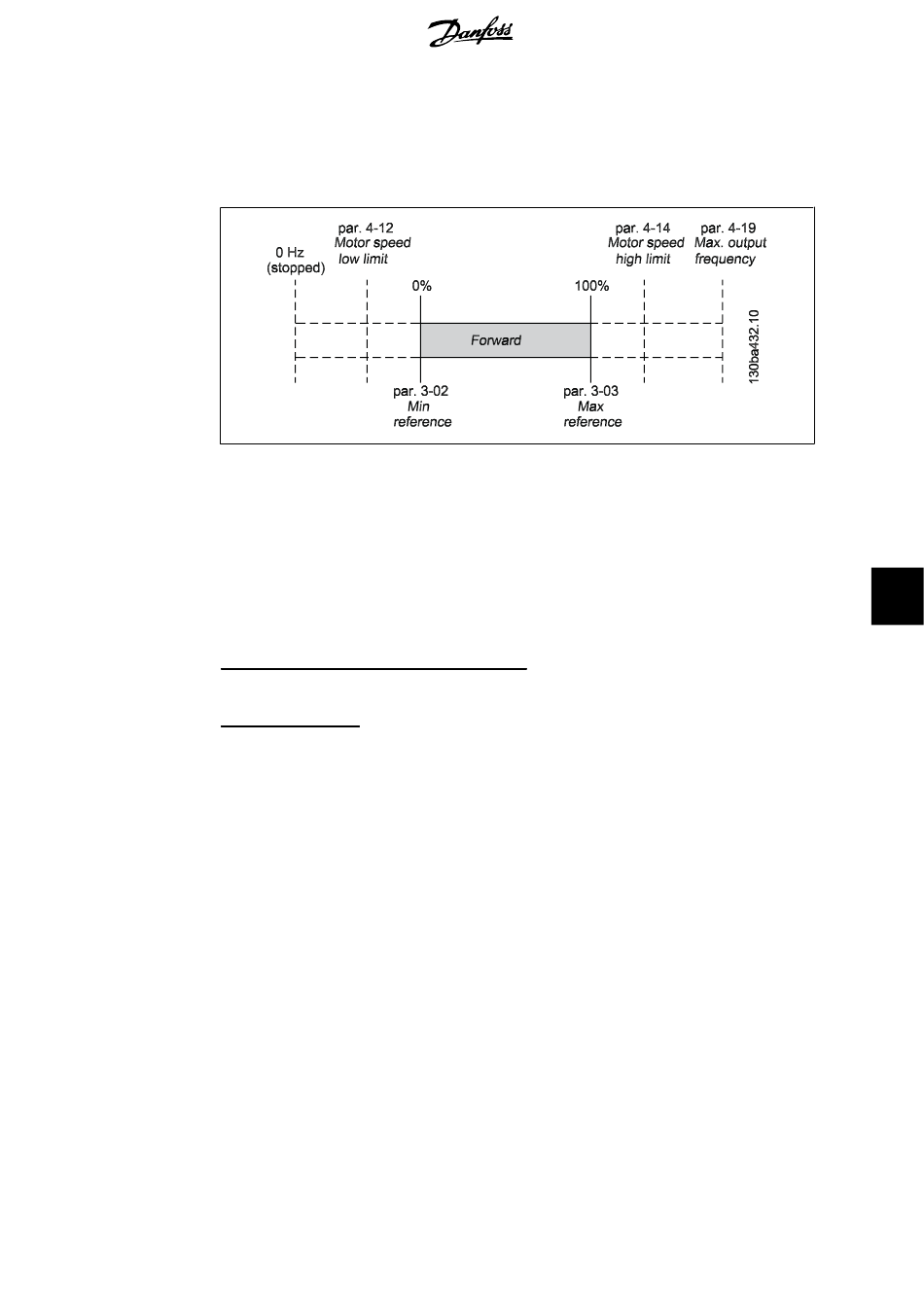

9.3. Reference Scaling
9.3.1. Reference Scaling
Example:
Par. 3-00 = [Min - Max]
Par. 3-02 [Min reference] = 100 RPM
Par. 3-03 [Max reference] = 1500 RPM
Reference send = 1500 hex (5376 dec)
Output:
The output can be calculated as:
Reference ( decimal ) * ( par.3−03 − par.3−02 )
5376 * ( 1500 − 100 )
16384
+ 100 =
559 RPM
16384
MG.11.E1.02 - VLT
®
is a registered Danfoss trademark
+ par.3 − 02 =
9. Troubleshooting
9
65
